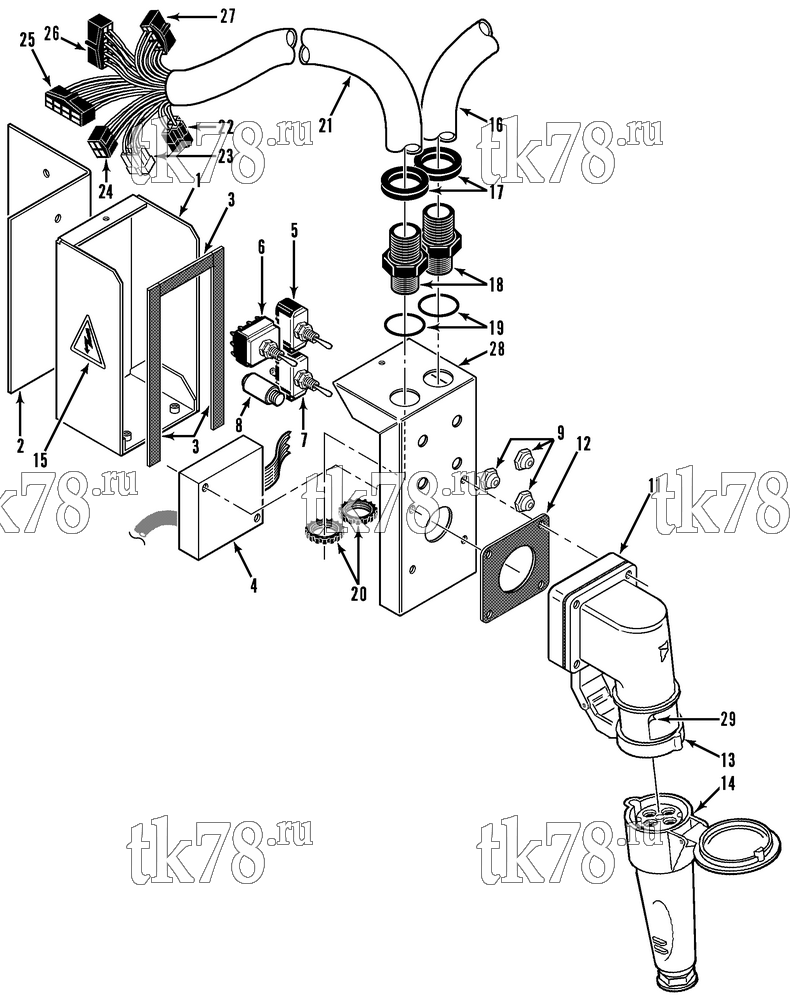

Установкa Thermo King схема REMOTE RECEPTACLE BOX EMEIA (10/94 & After) – 123D11
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6262 | BOX - remote | 1 | |
| 2 | 91-6263 | BRACKET - remote box | 1 | |
| 55-2963 | SCREW - bracket | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-4959 | NUT | 2 | ||
| 3 | 99-4976 | STRIP - gasket (box) | A/R | |
| 4 | 44-8872 | INDICATOR - phase | 1 | |
| 5 | 44-1164 | SWITCH - manual defrost | 1 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 6 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 7 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 8 | 44-9085 | LIGHT - indicator (amber) | 1 | |
| 9 | 44-739 | BOOT - switch | 1 | |
| 10 | 91-6264 | COVER - box (remote) | 1 | |
| 55-2995 | SCREW - cover | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 11 | 41-781 | RECEPTACLE (32 amp, 220V) | 1 | |
| 41-712 | RECEPTACLE (32 amp, 380V) | 1 | ||
| 12 | 33-1697 | GASKET - receptacle | 2 | |
| 55-5698 | SCREW - receptacle (1-1/2 in lg) | 2 | ||
| 55-8126 | SCREW - receptacle (2-3/4 in lg) | 2 | ||
| 55-2001 | FLATWASHER | 18 | ||
| 55-2965 | NUT | 6 | ||
| 13 | 99-9052 | COVER - receptacle | 1 | |
| 14 | 41-782 | PLUG - power (220-230/3/50-60) | 1 | |
| 41-520 | PLUG - power (380/3/50) | 1 | ||
| 15 | 99-7834 | NAMEPLATE - Caution | 2 | |
| 16 | 41-787 | CABLE - motor (incl items 17 & 18) | 1 | |
| 17 | 33-930 | GROMMET (2-1/8 id) | 2 | |
| 18 | 55-2789 | FITTING - barb | 2 | |
| 19 | 33-144 | O-RING | 2 | |
| 20 | 55-2635 | NUT | 2 | |
| 21 | 41-788 | HARNESS - remote box (incl items 17 & 18) | 1 | |
| 22 | 44-6248 | CONNECTOR (3-pin, female) | 1 | |
| 23 | 44-5827 | CONNECTOR (4-pin, male) | 1 | |
| 24 | 44-5814 | CONNECTOR (4-pin, female) | 1 | |
| 25 | 44-5718 | CONNECTOR (8-pin, male) | 1 | |
| 26 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 27 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 28 | 91-6265 | NAMEPLATE - remote box | 1 | |
| 29 | 91-3448 | NAMEPLATE - 220V | 1 | |
| 99-9700 | NAMEPLATE - 380VAC 50 Hz 3 phase | 1 |
