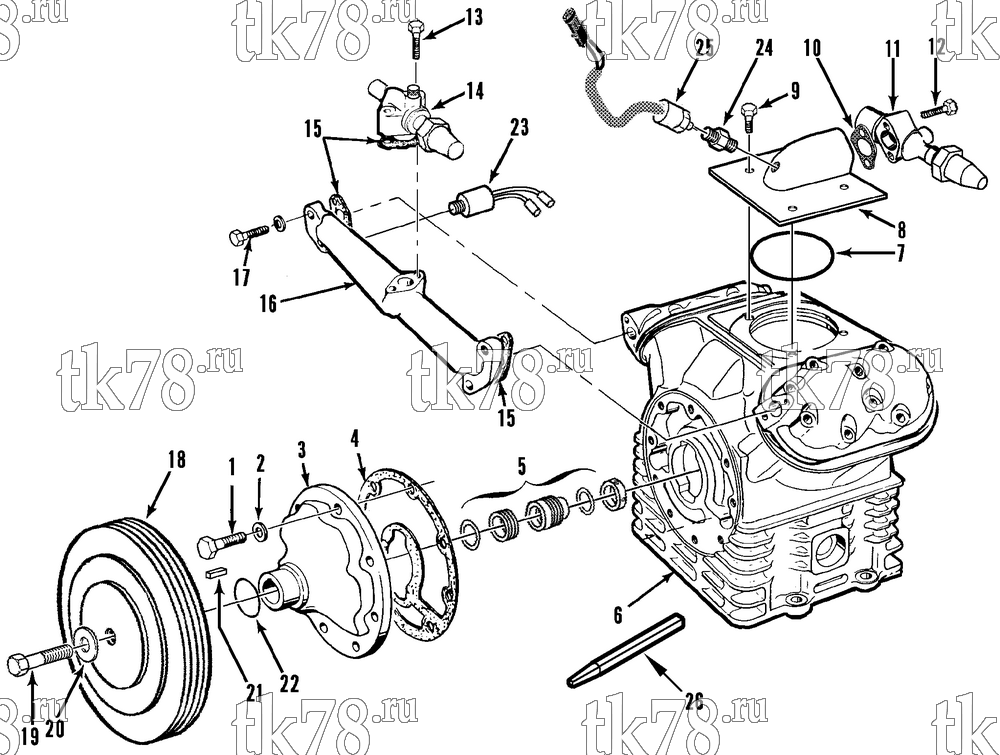

Установкa Thermo King схема COMPRESSOR GROUP – 122E3
Обновление от: 4/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2381 | SCREW - plate | 9 | |
| 2 | 55-896 | FLATWASHER | 9 | |
| 3 | 22-233 | PLATE - drive bearing | 1 | |
| 4 | 33-2513 | GASKET - drive end | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 5 | 22-778 | SEAL - crankshaft | 1 | |
|
22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
US-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 950 ₽ |
|
| 6 | 102-526 | COMPRESSOR - X426 (w/ standard head, see 122E4) | 1 | |
| 55-5050 | NUT - compressor to power tray | 4 | ||
| 55-2224 | WASHER - special | 4 | ||
| 55-7795 | BOLTSTRIP - compressor | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT - boltstrip | 2 | ||
| 7 | 33-1221 | O-RING - adapter to compressor | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 8 | 66-1896 | ADAPTER - suction valve | 1 | |
| 9 | 55-2381 | SCREW - adapter | 4 | |
| 55-896 | FLATWASHER | 4 | ||
| 10 | 33-2541 | GASKET - valve | 1 | |
| 11 | 66-3576 | VALVE - suction (see 122E5) | 1 | |
| 12 | 55-201 | SCREW - valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 13 | 55-9129 | CONNECTOR - harness | 2 | |
| 55-6804 | WASHER - sealing | 2 | ||
| 14 | 66-129 | VALVE - discharge (see 122E5) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 15 | 33-2805 | GASKET - valve to manifold | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 16 | 22-610 | MANIFOLD - discharge | 1 | |
| 17 | 55-6822 | SCREW - manifold | 4 | |
| 55-6804 | WASHER - sealing | 4 | ||
| 18 | 77-2240 | PULLEY | 1 | |
| 19 | 55-4316 | SCREW - pulley | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 20 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 21 | 55-9024 | KEY | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 22 | 33-2120 | SEAL - oil | 1 | |
|
10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 23 | 41-1502 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 24 | 55-459 | COUPLING | 1 | |
| 25 | 41-675 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 26 | 204-972 | TOOL - keyway alignment | 1 |
