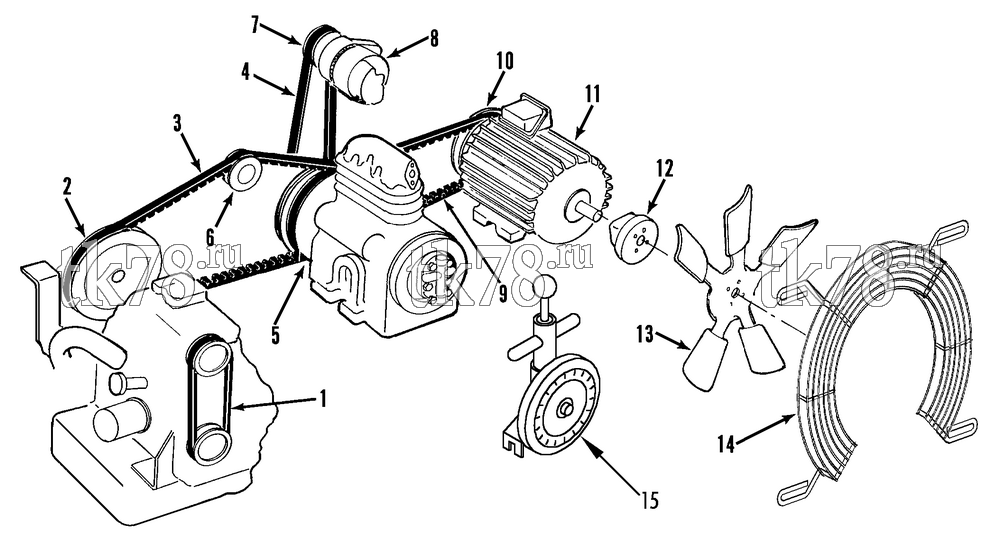

Установкa Thermo King схема BELTS, PULLEYS & FAN GROUP – 122C2
Обновление от: 4/6/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-679 | BELT - water pump (see 76B6) | 1 | |
| 10-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 880 ₽ |
|
|
|
PP-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 120 ₽ |
|
| 2 | 107-349 | CLUTCH (see 132D14) | 1 | |
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 98 400 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 46 200 ₽ |
|
| 55-5022 | SCREW - clutch | 6 | ||
| 3 | 78-977 | BELT - engine (idler compressor) | 1 | |
| 10-78-977 | Ремень компрессора, KD/MD-II | 14 420 ₽ |
|
|
| PP-78-977 | Ремень компрессора, KD/MD-II | 5 150 ₽ |
|
|
| 4 | 78-673 | BELT - alternator to compressor | 1 | |
| 5 | 77-2256 | PULLEY - compressor | 1 | |
| 77-2537 | BUSHING - pulley | 1 | ||
| 70-184 | KIT - screws & washers | 1 | ||
| 6 | 77-2431 | PULLEY - idler (see 116D11) | 1 | |
| 7 | 77-1703 | PULLEY - alternator | 1 | |
| 8 | 44-9753 | ALTERNATOR (65 amp, model EA, see 116D13) | 1 | |
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 41-2197 | ALTERNATOR (65 amp, model 8MR) | 1 | ||
|
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 9 | 78-936 | BELT - motor to jackshaft (compressor) | 1 | |
| 10-78-936 | Ремень компрессор - промвал / электромотор, KD-II/MD-II/MD-XXX | 5 900 ₽ |
|
|
| PP-78-936 | Ремень компрессор - промвал / электромотор, KD-II/MD-II/MD-XXX | 1 680 ₽ |
|
|
| 10 | 77-1754 | PULLEY - motor | 1 | |
| 55-6220 | SCREW - pulley | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 11 | 104-472 | MOTOR (220-230-380-460/3/50, see 116D12 for mounting) | 1 | |
| 77-1052 | BEARING | 2 | ||
| 55-7555 | KEY - pulley/fan | 2 | ||
| 12 | 77-1699 | HUB - condenser fan | 1 | |
| 13 | 77-954 | FAN - condenser | 1 | |
| 14 | 98-3631 | GUARD - fan | 1 | |
| 55-3121 | SCREW - guard | 4 | ||
| 15 | 204-427 | GAUGE - belt tension | 1 |
