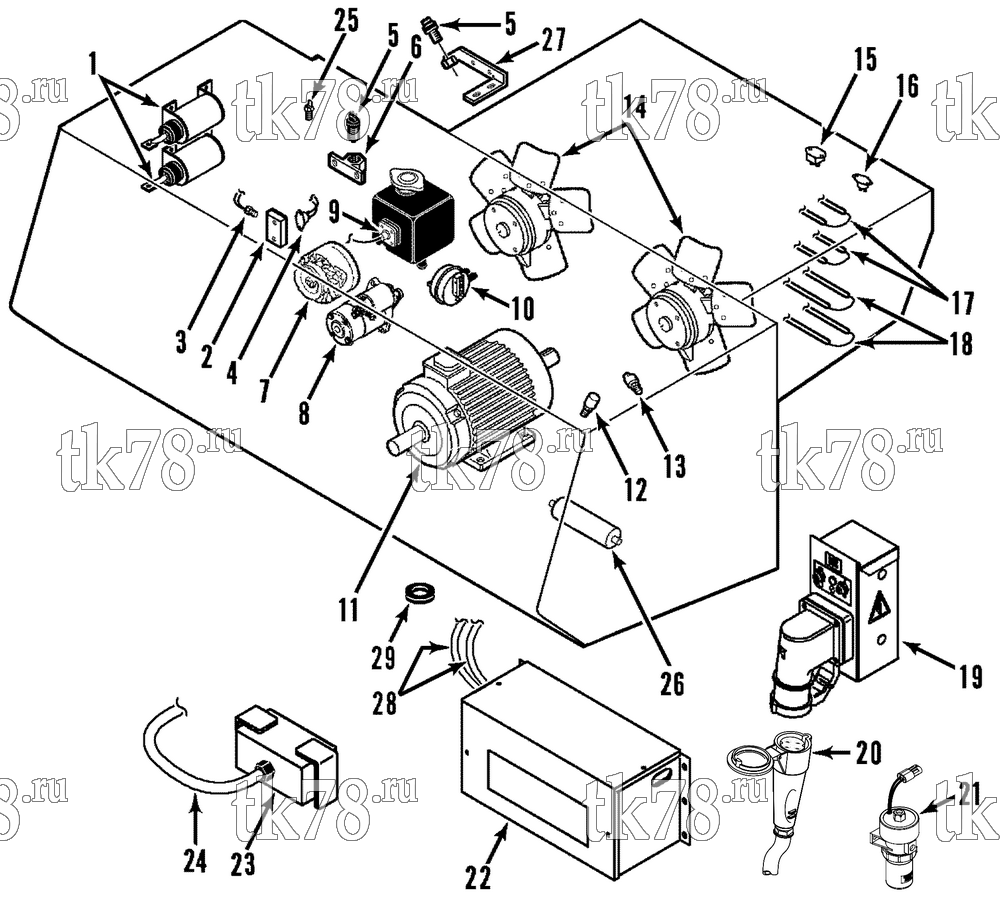

Установкa Thermo King схема ELECTRICAL COMPONENTS – 122A13
Обновление от: 9/8/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9181 | SOLENOID (see 122A8) | 2 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 2 | 91-6075 | BLOCK - thermistor | 1 | |
| 55-7828 | SCREW - block (M8) | 1 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 55-4184 | WASHER - special | 1 | ||
| 55-7372 | SCREW - block (M6) | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 3 | 44-8400 | BOLT - thermistor | 1 | |
|
10-44-8400 | Термистор | 7 150 ₽ |
|
| 4 | 44-6116 | THERMOSTAT (65 F, see note) | 1 | |
| 44-6018 | THERMOSTAT (30 F) | 1 | ||
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-7829 | SCREW - switch | 2 | ||
| 55-7750 | LOCKWASHER | 2 | ||
| 55-7830 | FLATWASHER | 2 | ||
| 5 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
| 6 | 91-6076 | BRACKET - sensor | 1 | |
| 7 | 41-749 | ALTERNATOR (see 126F1) | 1 | |
| 8 | 45-1608 | STARTER (see 126F2) | 1 | |
| 9 | 41-692 | SWITCH - water level | 1 | |
| 10 | 44-7892 | SWITCH - air pressure (see 122B2) | 1 | |
| 11 | 104-586 | MOTOR - electric | 1 | |
| 12 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 13 | 44-8064 | SWITCH - hpco (SD-II MAX R403B) | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 44-7992 | SWITCH - hpco (SD-II R134a) | 1 | ||
| 14 | 78-951 | FAN - evaporator (380V, see 122B3) | 2 | |
| 41-1640 | FAN & MOTOR - evaporator (220V, see 122B3) | 2 | ||
| 15 | 44-6691 | SWITCH - remote temperature | 1 | |
| 16 | 41-694 | SWITCH - defrost termination | 1 | |
| 17 | 45-1602 | HEATER - element (730W) | 2 | |
| 18 | 45-1603 | HEATER - element (365W) | 2 | |
| 19 | NSS | BOX - receptacle (see 122B5) | 1 | |
| 20 | 41-520 | PLUG - power (380/3/50, mates w/ 41-519) | 1 | |
| 41-782 | PLUG - power (220-230/3/50-60, mates w/ 41-4666) | 1 | ||
| 21 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 22 | 45-1583 | BOX - battery (see 91G11) | 1 | |
| 23 | NSS | BOX - remote control (in cab, see 122B6) | 1 | |
| 24 | 41-717 | HARNESS - remote control box | 1 | |
| 25 | 41-872 | SWITCH - high water temperature | 1 | |
| 26 | 41-709 | CAPACITOR (380V) | 1 | |
| 41-1636 | CAPACITOR (10 MFD, 220V) | 1 | ||
| 41-1637 | CAPACITOR (66 MFD, 220V) | 1 | ||
| 27 | 91-7401 | BRACKET - sensor (units with low level muffler) | 1 | |
| 28 | 41-1439 | CABLE - battery | 2 | |
| 41-1440 | TERMINAL - positive | 1 | ||
| 41-1441 | TERMINAL - negative | 1 | ||
| 29 | 33-2825 | GROMMET | 1 |
