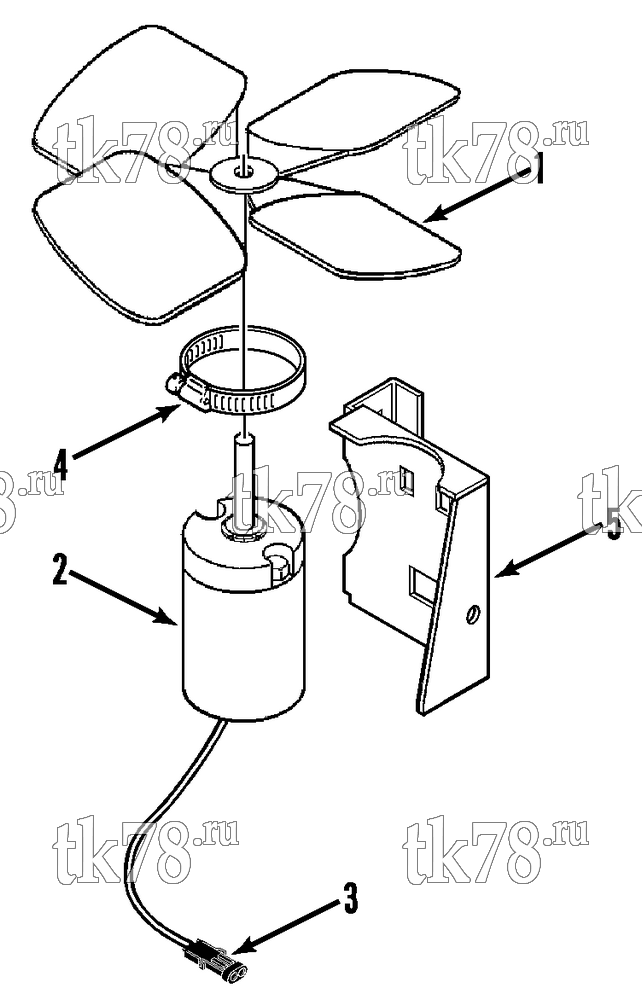

Установкa Thermo King схема CONDENSER FAN – 121G5
Обновление от: 6/17/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-250 | FAN - condenser | 1 | |
| 2 | 44-8526 | MOTOR - condenser fan (see 87D1) | 1 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 3 | 44-5835 | CONNECTOR - motor | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 4 | 55-7800 | CLAMP - motor | 1 | |
| 5 | 91-6019 | BRACKET - motor | 1 | |
| 55-2840 | RIVET - bracket | 2 | ||
| 91-8781 | BRACKET - motor (V-250+) | 1 |
