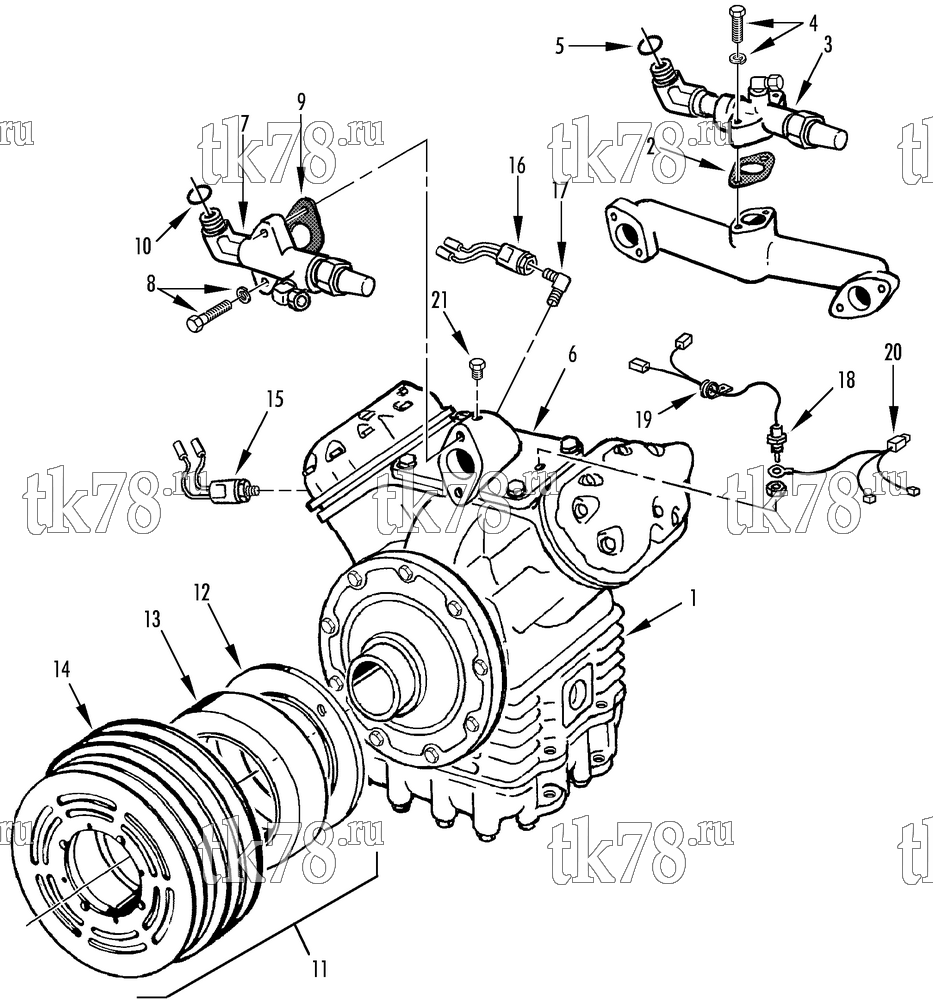

Установкa Thermo King схема COMPRESSOR GROUP (5926C13G05, KIT 712068) – 120F8
Обновление от: 12/14/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, reman, see 230C5) | 1 | |
| 1 | 8102-916 | COMPRESSOR - X426 C5 (bus, reman, see 230C5) | 1 | |
| 102-913 | COMPRESSOR - X426 C5 (subassembly, see 231A2) | 1 | ||
| 8102-913 | COMPRESSOR - X426 C5 (subassembly, reman, see 231A2) | 1 | ||
| 2 | 33-2805 | GASKET - manifold | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 66-4655 | VALVE - discharge (see 120F1) | 1 | |
| 4 | 55-201 | SCREW - discharge valve | 2 | |
| 5 | 33-1785 | O-RING | 1 | |
| 6 | 66-1896 | ADAPTER - suction valve | 1 | |
| 33-1221 | O-RING - adapter to compressor | 1 | ||
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 7 | 66-4701 | VALVE - suction (see 120F2) | 1 | |
| 8 | 55-6776 | SCREW - suction valve | 2 | |
| 55-6804 | FLATWASHER | 1 | ||
| 9 | 33-2541 | GASKET - suction valve | 1 | |
| 10 | 33-1777 | O-RING | 1 | |
| 11 | NSS | CLUTCH - assembly | 1 | |
| 107-192 | KIT - clutch drive repair (see 94G5) | 1 | ||
| 12 | 77-1083 | PLATE | 1 | |
| 13 | 45-1227 | FIELD - clutch (24VDC) | 1 | |
| 14 | 77-1672 | PULLEY (2-5V grooves, 7.75 in od) | 1 | |
| 15 | 44-6373 | SWITCH - hpco | 1 | |
| 44-6265 | SWITCH - only | 1 | ||
| 16 | 44-7893 | SWITCH - lpco | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 17 | 55-466 | ELBOW | 1 | |
| 33-769 | GASKET - flare | 1 | ||
| 18 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 55-2996 | LOCKWASHER - diode | 1 | ||
| 19 | 55-5261 | CLAMP - harness | 3 | |
| 20 | 44-7056 | HARNESS - compressor | 1 | |
| 21 | 55-433 | PLUG - pipe | 1 |
