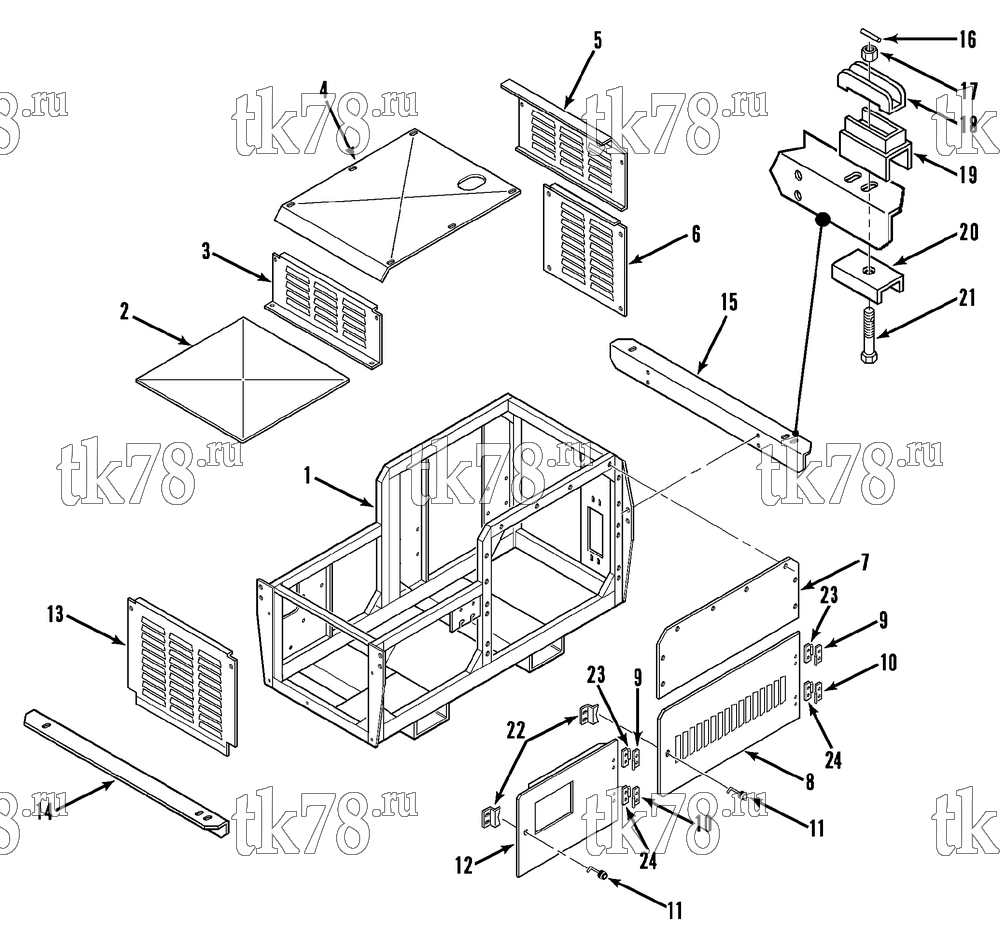

Установкa Thermo King схема STRUCTURAL COMPONENTS (M22, M22D) – 120A7
Обновление от: 12/9/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4604 | FRAME - assembly | 1 | |
| 2 | 98-4069 | PANEL (top, rear) | 1 | |
| 55-7731 | SCREW - panel | 4 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 55-7422 | INSERT - threaded | 4 | ||
| 3 | 98-4066 | PANEL (top, center, before 7/94) | 1 | |
| 55-7731 | SCREW - panel | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3045 | LOCKWASHER - dome | 2 | ||
| 55-7422 | INSERT - threaded | 2 | ||
| 4 | 98-4068 | PANEL (top, front, before 7/94) | 1 | |
| 98-4566 | PANEL - top front (after 7/94) | 6 | ||
| 55-7731 | SCREW - panel | 6 | ||
| 55-3045 | LOCKWASHER - dome | 6 | ||
| 55-7422 | INSERT - threaded | 6 | ||
| 5 | 98-4067 | PANEL (front, before 7/94) | 1 | |
| 98-4678 | PANEL - front (after 7/94) | 6 | ||
| 55-7731 | SCREW - panel | 4 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 55-7422 | INSERT - threaded | 4 | ||
| 6 | 98-4062 | PANEL (lower, front) | 1 | |
| 55-7731 | SCREW - panel | 4 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 55-7422 | INSERT - threaded | 4 | ||
| 7 | 98-4063 | PANEL (upper, right) | 1 | |
| 55-7731 | SCREW - panel | 8 | ||
| 55-3045 | LOCKWASHER - dome | 8 | ||
| 55-7422 | INSERT - threaded | 8 | ||
| 8 | 98-4605 | DOOR - front right | 1 | |
| 9 | 99-7140 | HINGE - door (w/ pin) | 2 | |
| 10 | 99-7139 | HINGE - door (w/ pin) | 2 | |
| 11 | 99-6599 | LATCH - door | 2 | |
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 2 | ||
| 12 | 98-4065 | DOOR (front, left) | 1 | |
| 13 | 98-4072 | PANEL (lower, rear) | 1 | |
| 55-7731 | SCREW - panel (nylock) | 2 | ||
| 55-3045 | LOCKWASHER - dome | 4 | ||
| 55-7422 | INSERT - threaded | 2 | ||
| 55-2977 | SCREW - panel (hh) | 2 | ||
| 55-4953 | NUT (stop) | 2 | ||
| 14 | 98-4071 | ANGLE - unit mounting (rear) | 1 | |
| 15 | 98-4070 | ANGLE - unit mounting (front) | 1 | |
| 55-5204 | SCREW - angle | 8 | ||
| 55-2576 | FLATWASHER | 16 | ||
| 55-5205 | NUT (hexstop) | 8 | ||
| 16 | 55-6163 | PIN - spring | 4 | |
| 17 | 55-4470 | NUT (hexstop) | 4 | |
| 18 | 92-3438 | CLIP - unit mounting | 4 | |
| 19 | 91-545 | BRACKET - clip | 4 | |
| 20 | 91-632 | CHANNEL - unit mounting | 4 | |
| 21 | 55-7502 | BOLT - unit mounting | 4 | |
| 22 | 99-9756 | BRACKET - latch | 2 | |
| 55-6554 | INSERT | 4 | ||
| 55-3027 | SCREW | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 23 | 99-7137 | HINGE - door (w/o pin) | 2 | |
| 24 | 99-7138 | HINGE - door (w/o pin) | 2 | |
| 55-7731 | SCREW - hinge (nylock) | 8 | ||
| 55-1587 | SCREW - hinge (hh) | 8 | ||
| 55-7422 | INSERT - threaded | 8 | ||
| 55-4953 | NUT | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 |
