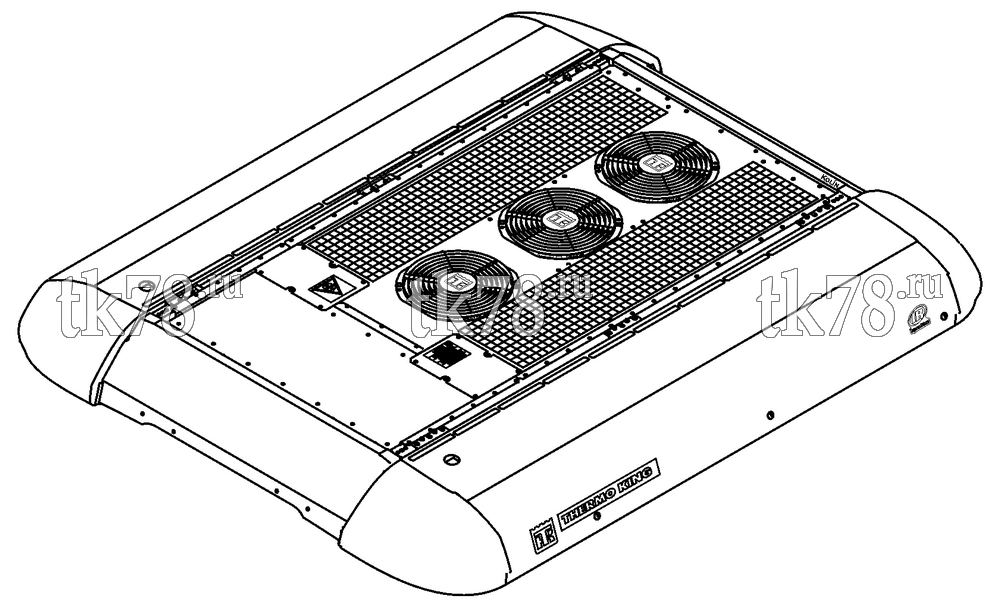

Установкa Thermo King схема ATHENIA S700 SPLIT REFERENCE SHEET – 11U12
Обновление от: 6/5/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900370 | ATHENIA S700 N Split - 1000, R134a | 6/06 | ||
| 900371 | ATHENIA S700 N Split - 1004, R134a | 6/06 | ||
| 900372 | ATHENIA S700 W Split - 1000, R134a | 6/06 | ||
| 900373 | ATHENIA S700 W Split - 1004, R134a | 6/06 | ||
| 006889 | Air Intake Module NARROW with Fresh Air Damper 100% | 6/06 | ||
| 006890 | Air Intake Module NARROW without Fresh Air Damper 0% | 6/06 | ||
| 006891 | Air Intake Module WIDE with Fresh Air Damper 100% | 6/06 | ||
| 006892 | Air Intake Module WIDE without Fresh Air Damper 0% | 6/06 | ||
| 007262 | Electrical Circuiting - CA II - S700 Split, Brush Fans, WITHOUT Blowers, 0% FA | 6/06 | ||
| 007266 | Electrical Circuiting - CA II - S700 Split, Brush Fans, WITHOUT Blowers, 0% FA | 6/06 | ||
| 006888 | Plate with Brush Type Blowers | 6/06 | ||
| 700715 | Kit - ClimaAIRE II D with Harness - Split 9 m | 6/06 | ||
| 700716 | Kit - ClimaAIRE II D with Harness - Split 12 m | 6/06 | ||
| 700717 | Kit - ClimaAIRE II D with Harness - Split 15 m | 6/06 | ||
| 700718 | Kit - ClimaAIRE II D with Harness - Split 18 m | 6/06 | ||
| 700634 | Kit - ClimaAIRE I D with Harness - 6 m | 6/06 | ||
| 700635 | Kit - ClimaAIRE I D with Harness - 8 m | 6/06 | ||
| 700636 | Kit - ClimaAIRE I D with Harness - 10 m | 6/06 | ||
| 700637 | Kit - ClimaAIRE I D with Harness - 12 m | 6/06 | ||
| 700638 | Kit - ClimaAIRE I D with Harness - 14 m | 6/06 | ||
| 700639 | Kit - ClimaAIRE I D with Harness - 16 m | 6/06 | ||
| 700640 | Kit - ClimaAIRE I D with Harness - 18 m | 6/06 | ||
| 700713 | Harness (A/C Unit - 2 x Compressor Alt. - 18 m length) | 6/06 | ||
| 700712 | Harness (A/C Unit - 2 x Compressor Alt. - 14 m length) | 6/06 | ||
| 700711 | Harness (A/C Unit - 2 x Compressor Alt. - 12 m length) | 6/06 | ||
| 700710 | Harness (A/C Unit - 2 x Compressor Alt. - 8 m length) | 6/06 | ||
| 700709 | Harness (A/C Unit - 2 x Compressor - 18 m length) | 6/06 | ||
| 700708 | Harness (A/C Unit - 2 x Compressor - 14 m length) | 6/06 | ||
| 700707 | Harness (A/C Unit - 2 x Compressor - 12 m length) | 6/06 | ||
| 700706 | Harness (A/C Unit - 2 x Compressor - 8 m length) | 6/06 | ||
| 700719 | Harness (A/C Unit - 2 x Compressor - 18 m length) | 6/06 | ||
| 700720 | Harness (A/C Unit - 2 x Compressor - 14 m length) | 6/06 | ||
| 700721 | Harness (A/C Unit - 2 x Compressor - 12 m length) | 6/06 | ||
| 700722 | Harness (A/C Unit - 2 x Compressor - 8 m length) | 6/06 | ||
| 700723 | Harness (A/C Unit - 2 x Compressor Alt. - 18 m length) | 6/06 | ||
| 700724 | Harness (A/C Unit - 2 x Compressor Alt. - 14 m length) | 6/06 | ||
| 700725 | Harness (A/C Unit - 2 x Compressor Alt. - 12 m length) | 6/06 | ||
| 700726 | Harness (A/C Unit - 2 x Compressor Alt. - 8 m length) | 6/06 | ||
| 800050 | Kit - Installation, ATHENIA | 6/06 | ||
| 720287 | Compressor TM21-24V, 1B Pulley, POE Oil | 6/06 | ||
| 720289 | Compressor TM21-24V, 2A Pulley, POE Oil | 6/06 | ||
| 720291 | Compressor TM21-24V, Polygroove Pulley, POE Oil | 6/06 | ||
| 718371 | Compressor TM16, Double A Pulley, 24V, POE Oil, No Manifold | 6/06 | ||
| 718373 | Compressor TM16, Polygroove Pulley, 24V, POE Oil, No Manifold | 6/06 | ||
| 715717 | Kit - Vertical Adjustable Comp Manifold for TM16/TM21 (Not for A6) | 6/06 | ||
| 718121 | Kit - Horizontal Adjustable Comp Manifold for TM16/TM21 and A6 | 6/06 | ||
| 718378 | Kit - POE Oil (8 oz can - 0.24 Liter) for TM Compressors | 6/06 | ||
| 719690 | Kit - Fittings, SR Unit - TM16 (90 deg / straight) | 6/06 | ||
| 719691 | Kit - Fittings, SR Unit - TM16 (45 deg / straight) | 6/06 | ||
| 719692 | Kit - Fittings, SR Unit - TM16 (straight / straight) | 6/06 | ||
| 719804 | Kit - Fittings, SR Unit - TM16 (90 deg / SU 90 deg - DU 45 deg) | 6/06 | ||
| 719805 | Kit - Fittings, SR Unit - TM16 (45 deg / SU 90 deg - DU 45 deg) | 6/06 | ||
| 719806 | Kit - Fittings, SR Unit - TM16 (straight / SU 90 deg - DU 45 deg) | 6/06 | ||
| 719161 | Kit - Fittings, SR Unit - TM16 (90 deg / SU straight - DU 90 deg) | 6/06 | ||
| 719162 | Kit - Fittings, SR Unit - TM16 (45 deg / SU straight - DU 90 deg) | 6/06 | ||
| 719163 | Kit - Fittings, SR Unit - TM16 (straight / SU straight - DU 90 deg) | 6/06 | ||
| 720296 | Kit - Fittings, SR Unit - TM16 (C 90 deg / U 45 deg) | 6/06 | ||
| 720297 | Kit - Fittings, SR Unit - TM16 (C 45 deg / U 45 deg) | 6/06 | ||
| 720298 | Kit - Fittings, SR Unit - TM16 (C straight / U 45 deg) | 6/06 | ||
| 719693 | Kit - Refrigerant Hose (1 m without Fittings) | 6/06 | ||
| 719694 | Kit - Refrigerant Hose (6 m without Fittings) | 6/06 | ||
| 719695 | Kit - Refrigerant Hose (9 m without Fittings) | 6/06 | ||
| 719696 | Kit - Refrigerant Hose (12 m without Fittings) | 6/06 | ||
| 719800 | Kit - Refrigerant Hose (13 m without Fittings) | 6/06 | ||
| 719697 | Kit - Refrigerant Hose (14 m without Fittings) | 6/06 | ||
| 719807 | Kit - Refrigerant Hose (15 m without Fittings) | 6/06 | ||
| 719808 | Kit - Refrigerant Hose (16 m without Fittings) | 6/06 | ||
| 719698 | Kit - Refrigerant Hose (17 m without Fittings) | 6/06 | ||
| 720090 | Kit - Adapters I - for Tube Installation | 6/06 | ||
| 700256 | Kit - Suction T-piece Fitting (DN22, 7/8 in - 14UNF, DN22) | 6/06 | ||
| 719004 | Kit - Water Boost Pump, 27VDC, Hose Connections - 21 mm id; for US Only | 6/06 | ||
| 719055 | Kit - Water Pump, 27VDC, 16 mm id Hose; 500 L/Hr | 6/06 | ||
| 719005 | Kit - Water Boost Pump, 27VDC, Hose Connections - 38 mm id; 5000 L/Hr | 6/06 | ||
| 719006 | Harness (Unit to Water Boost Pump - 14 m length) | 6/06 | ||
| 719007 | Harness (Unit to Water Boost Pump - 9 m length) | 6/06 | ||
| 719008 | Harness (Unit to Water Boost Pump - 7.6 m length) | 6/06 | ||
| 700129 | Kit - Water Valve, 2-way Servomotor | 6/06 | ||
| 700130 | Kit - Water Valve, 3-way Servomotor | 6/06 | ||
| 700127 | Kit - Harness, Servomotor Water Valve - 10 m | 6/06 | ||
| 700128 | Kit - Harness, Servomotor Water Valve - 20 m | 6/06 | ||
| 700296 | Kit - Floor Temperature Sensor, ClimaAIRE II - 9 m | 6/06 | ||
| 700544 | Kit - Temperature Sensor for ClimaAIRE I, II | 6/06 | ||
| 719305 | Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 719306 | Kit - Alternator, 125A, 24VDC, 12V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 720788 | Kit - Return Air Grille - ATHENIA S500 - S700 | 6/06 |
