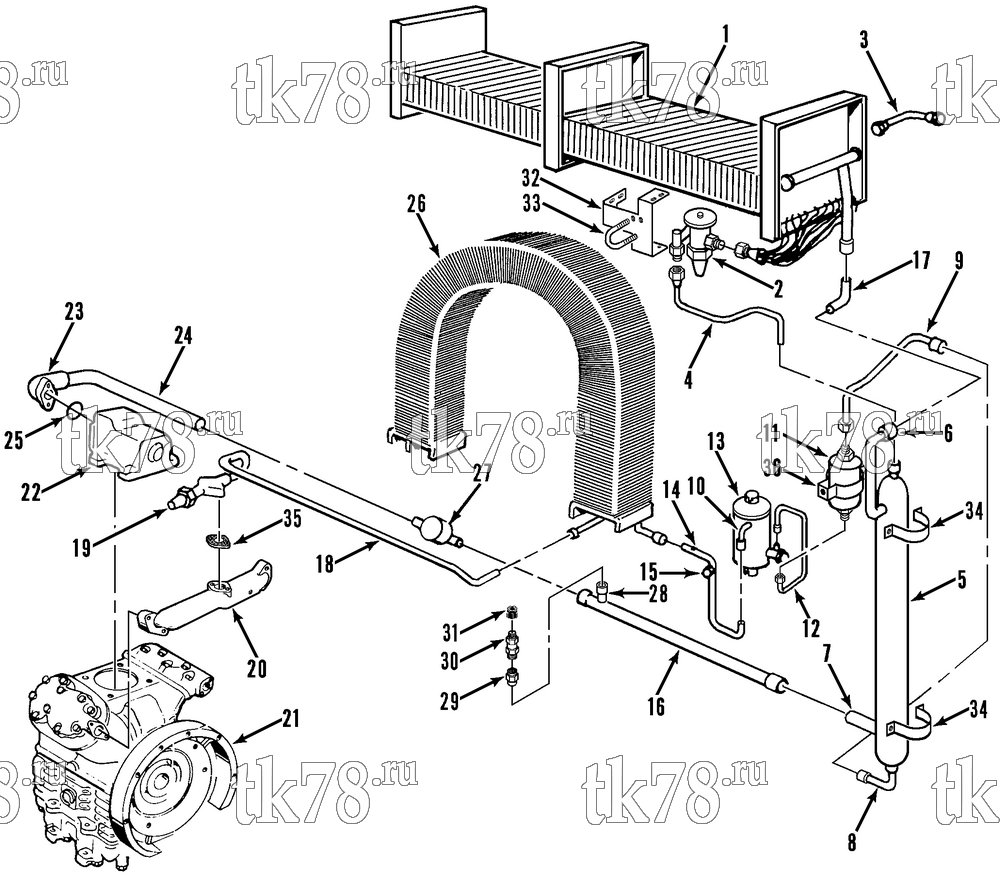

Установкa Thermo King схема REFRIGERATION COMPONENTS – 118F13
Обновление от: 9/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1272 | COIL - evaporator (before 1/90) | 1 | |
| 67-1272 | COIL - evaporator (after 1/90) | 1 | ||
| 2 | 66-4461 | VALVE - expansion (R12, before 1/90) | 1 | |
| 66-633 | ELEMENT - power | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-5365 | VALVE - expansion (R12, after 1/90) | 1 | ||
| 66-633 | ELEMENT - power | 1 | ||
| 66-9378 | SCREEN - inlet | 1 | ||
| 3 | 66-4535 | TUBE - equalizer (before 1/90) | 1 | |
| 66-5367 | TUBE - equalizer (after 1/90) | 1 | ||
| 4 | 66-4536 | TUBE - exchanger to expansion valve (before 1/90) | 1 | |
| 66-5366 | TUBE - exchanger to expansion valve (after 1/90) | 1 | ||
| 5 | 67-799 | HEAT EXCHANGER (incl 6, 7, 8) | 1 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 6 | 66-4537 | TUBE - exchanger to coil | 1 | |
| 7 | 66-4465 | TUBE - exchanger to modulating (suction) | 1 | |
| 8 | 66-4466 | TUBE - liquid | 1 | |
| 9 | 66-4589 | TUBE - dehydrator to exchanger | 1 | |
| 10 | 55-3441 | ELBOW | 1 | |
| 11 | 66-9015 | DEHYDRATOR | 1 | |
| 55-2070 | GASKET - flare nut | 2 | ||
| 12 | 66-4468 | TUBE - receiver to dehydrator (before 1/90) | 1 | |
| 66-5746 | TUBE - receiver to dehydrator (after 1/90) | 1 | ||
| 13 | 60-185 | KIT - receiver tank conversion (units before 2/90, see 119E13) | 1 | |
| 66-594 | VALVE - angle (before 2/90) | 1 | ||
| 66-5747 | VALVE - angle (after 1/90) | 1 | ||
| 66-2170 | CAP - valve | 1 | ||
| 67-975 | TANK - receiver | 1 | ||
| 66-6870 | INDICATOR - liquid | 2 | ||
| 55-1587 | SCREW - tank | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 14 | 66-4469 | TUBE - condenser to receiver (before 2/90) | 1 | |
| 66-5745 | TUBE - condenser to receiver tank (after 1/90) | 1 | ||
| 55-3295 | FITTING - valve | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-4791 | TUBE - exchanger to modulation | 1 | |
| 66-3615 | FITTING - saddle | 1 | ||
| 17 | 66-4538 | TUBE - exchanger to coil | 1 | |
| 18 | 66-4520 | TUBE - valve to coil | 1 | |
| 19 | 66-3942 | VALVE - service (discharge, see 118G11) | 1 | |
| 20 | 22-750 | MANIFOLD - discharge (X426) | 1 | |
| 22-782 | MANIFOLD - discharge (X430) | 1 | ||
| 21 | 102-919 | COMPRESSOR - X426 (see 231C3) | 1 | |
| 102-522 | COMPRESSOR - X426 (R134a, see 118G10) | 1 | ||
| 102-918 | COMPRESSOR - X430 C5 (CF, see 242F6) | 1 | ||
| 22 | 66-4460 | VALVE - throttling (see 73B9) | 1 | |
| 23 | 66-4473 | FLANGE & ELBOW | 1 | |
| 55-2961 | SCREW - flange | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-6395 | FLATWASHER | 2 | ||
| 24 | 66-4820 | TUBE - suction | 1 | |
| 25 | 33-920 | O-RING - suction | 1 | |
| 26 | 67-1392 | COIL - condenser (see 84E12) | 1 | |
| 27 | 66-7793 | VALVE - modulation (for connectors see 115D14) | 1 | |
| 66-7789 | VALVE - only | 1 | ||
| 44-5175 | COIL - valve | 1 | ||
| 28 | 11-2886 | VALVE (Schrader, R12) | 1 | |
| 55-5672 | CAP - valve (R12) | 1 | ||
| 11-7777 | CORE - valve (R12) | 1 | ||
| 29 | 66-7408 | ADAPTER - fitting (R134a) | 1 | |
| 30 | 66-6607 | FITTING - charge port (R134a) | 1 | |
| 31 | 66-7183 | CAP - fitting (R134a) | 1 | |
| 32 | 91-3156 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 33 | 55-5211 | U-BOLT - valve | 1 | |
| 55-2001 | FLATWASHER - U-bolt | 2 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 34 | 99-8949 | CLAMP - heat exchanger | 2 | |
| 55-5641 | SCREW - clamp | 4 | ||
| 35 | 33-2805 | GASKET - valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 36 | 55-4390 | HANGER - dehydrator | 1 | |
| 55-1587 | SCREW - hanger | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 |
