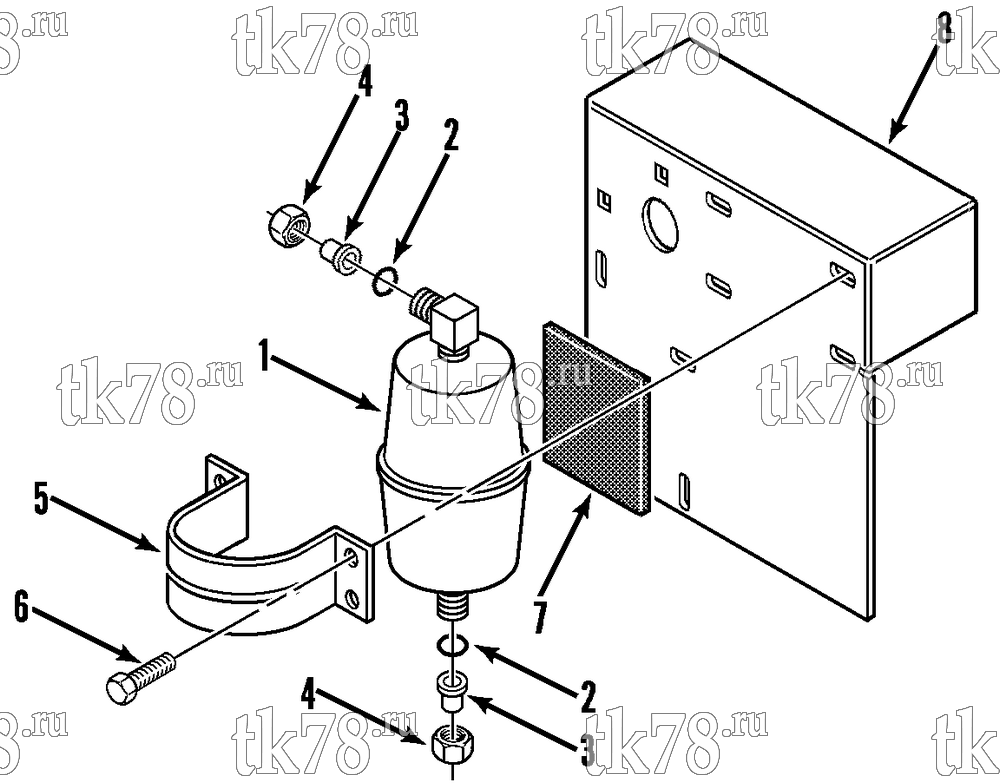

Установкa Thermo King схема DEHYDRATOR GROUP – 117E1
Обновление от: 4/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-800 | DEHYDRATOR (w/ o-ring fittings) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 66-814 | DEHYDRATOR (w/ flare fittings) | 1 | ||
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 2 | 33-1015 | O-RING | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 3 | 55-8268 | SHOULDER | 2 | |
| 4 | 55-8267 | NUT - shoulder | 2 | |
| 5 | 91-7602 | HANGER - dehydrator | 1 | |
| 6 | 55-1587 | SCREW - bracket | 4 | |
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 7 | 99-4326 | PAD - dehydrator | 2 | |
| 8 | 91-9261 | BRACKET - dehydrator, air switch & control box | 1 | |
| 55-1587 | SCREW - bracket | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 |
