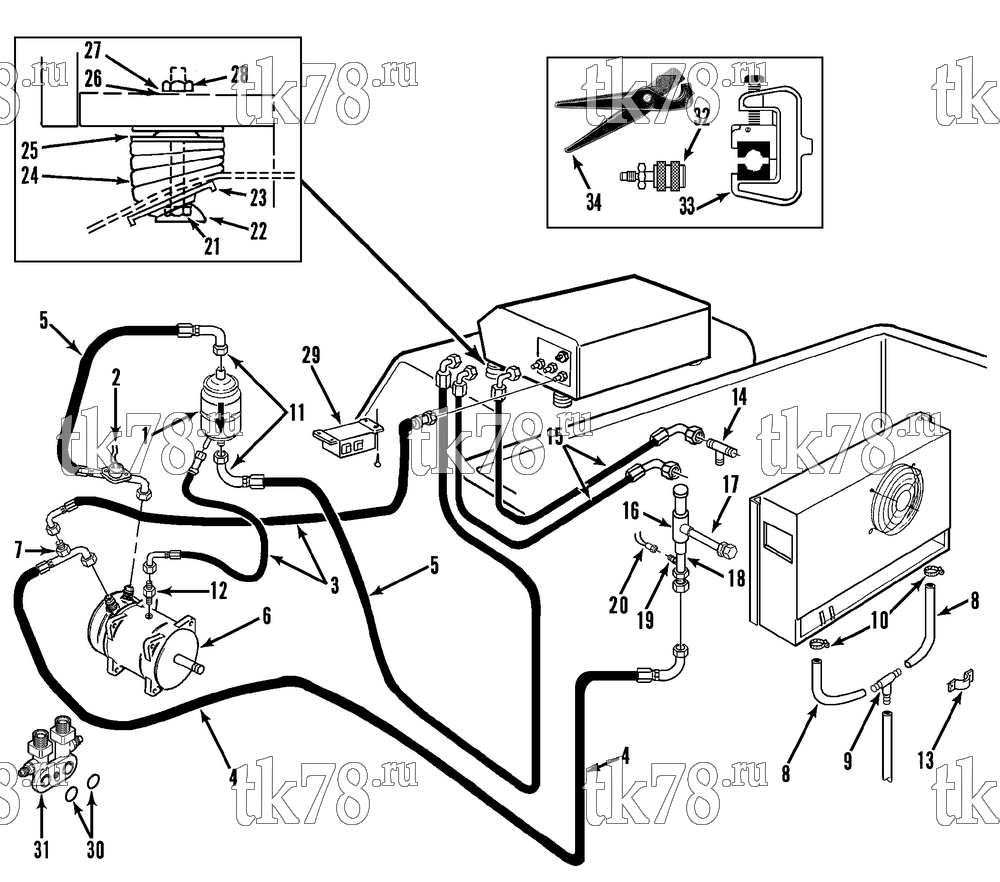

Установкa Thermo King схема INSTALLATION (STBci2 10DR) – 117B6
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-8546 | SEPARATOR - oil | 1 | |
| 66-8546 OEM | Масляный сепаратор, V/VM-Series | 13 030 ₽ |
|
|
| 10-66-8546 | Масляный сепаратор, V/VM-Series | 9 650 ₽ |
|
|
| 99-2909 | BRACKET - separator | 1 | ||
| 2 | 44-9020 | THERMOSTAT - liquid injection | 1 | |
| 3 | 66-5035 | HOSE - liquid injection/oil separator | 2 | |
| 66-5076 | FITTING - hose | 2 | ||
| 33-768 | GASKET - flare | 2 | ||
| 4 | 66-5034 | HOSE - suction (R12) | 1 | |
| 66-5059 | FITTING - hose | 1 | ||
| 67-946 | HOSE - suction (R134a) | 1 | ||
| 66-6983 | FITTING - hose | 1 | ||
| 33-672 | O-RING - suction hose | 3 | ||
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 5 | 66-5033 | HOSE - discharge (R12) | 1 | |
| 66-5238 | FITTING - hose | 1 | ||
| 67-944 | HOSE - discharge (R134a) | 1 | ||
| 66-6985 | FITTING - hose | 1 | ||
| 33-2350 | O-RING - discharge hose | 1 | ||
| 6 | 102-1012 | COMPRESSOR - 16XD (12V, 5.3 in, incl 2A clutch) | 1 | |
| 102-348 | COMPRESSOR & CLUTCH (24V, 6 in, 2A groove clutch) | 1 | ||
| 102-350 | COMPRESSOR & CLUTCH (24V, 6 in, 1B groove clutch) | 1 | ||
| 102-346 | COMPRESSOR & CLUTCH (12V, 5-1/4 in, 2A groove clutch) | 1 | ||
| 102-344 | COMPRESSOR & CLUTCH (12V, poly groove) | 1 | ||
| 102-355 | COMPRESSOR & CLUTCH (24V, 5-1/4 in, 2A groove clutch) | 1 | ||
| 102-1028 | COMPRESSOR - 15XD (12V, 5.3 in, 2A groove, R134a, see note) | 1 | ||
| 102-839 | COMPRESSOR - TM15-XD (24V, 5.3 in, 2A groove, R134a, see note) | 1 | ||
| 102-1018 | COMPRESSOR & CLUTCH - 15HD (12V, poly groove, R134a, see note) | 1 | ||
| 102-581 | COMPRESSOR & CLUTCH - TM15-HD (24V, poly groove, R134a, see note) | 1 | ||
| 102-1020 | COMPRESSOR & CLUTCH - 15XD (12V, variable groove, R134a, see note) | 1 | ||
| 203-513 | OIL - compressor (R134a) | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 203-518 | KIT - acid test (polyol ester kit) | 1 | ||
| 7 | 66-5029 | ADAPTER - liquid injection | 1 | |
| 66-5028 | FILTER - adapter | 1 | ||
| 8 | 11-3305 | SLEEVING - hose (drain, 25 ft lg) | A/R | |
| 9 | 55-6349 | TEE - drain hose | 1 | |
| 10 | 55-2686 | CLAMP - hose (drain) | 2 | |
| 11 | 66-4852 | FITTING - hose | 2 | |
| 33-2070 | GASKET - flare | 2 | ||
| 12 | 66-5451 | FITTING - adapter (R12) | 1 | |
| 66-7041 | FITTING - adapter (R134a) | 1 | ||
| 13 | 55-2239 | CLAMP - hose (0.375 dia) | 4 | |
| 55-4865 | CLAMP - hose (0.562 dia) | 5 | ||
| 55-6016 | CLAMP - hose (0.750 dia) | 9 | ||
| 55-6808 | CLAMP - hose (2.25 dia) | 10 | ||
| 14 | 55-6784 | TEE (3/8, o-ring seal, liquid/defrost) | 2 | |
| 15 | 66-5706 | HOSE - liquid/defrost (condenser to evaporator, before 8/92) | 2 | |
| 55-6425 | FITTING - hose | 2 | ||
| 66-5718 | HOSE - liquid/defrost (condenser to evaporator, after 8/92) | 2 | ||
| 55-6724 | FITTING - hose | 2 | ||
| 33-1015 | O-RING - liquid/defrost | 4 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-4725 | VALVE - cpr | 1 | |
| 55-5293 | BUSHING - valve | 2 | ||
| 17 | 66-5720 | TUBE - inlet | 1 | |
| 55-6400 | ADAPTER - inlet tube | 1 | ||
| 18 | 66-5719 | TUBE - outlet | 1 | |
| 55-6401 | ADAPTER - outlet tube | 1 | ||
| 19 | 66-874 | FITTING - lpco | 1 | |
| 20 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 33-768 | GASKET - flare | 1 | ||
| 21 | 55-4714 | SCREW - condenser | 4 | |
| 22 | 55-4716 | CUP - alignment | 4 | |
| 23 | 55-4715 | WASHER - alignment | 4 | |
| 24 | 55-4717 | SPACER | A/R | |
| 25 | 55-4718 | WASHER | 4 | |
| 26 | 55-402 | FLATWASHER | 4 | |
| 27 | 55-375 | LOCKWASHER | 4 | |
| 28 | 55-3054 | NUT | 4 | |
| 29 | 91-408 | BOX - cab control (before 8/92 see 94E13) | 1 | |
| 91-4313 | BOX - control (after 8/92 see 107G8) | 1 | ||
| 30 | 22-992 | MANIFOLD - compressor (90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 31 | 33-2882 | O-RING | 2 | |
| 32 | 204-677 | CUTTER - hose | 1 | |
| 204-678 | BLADE - replacement | 1 | ||
| 33 | 204-676 | CRIMPER - R12 hose | 1 | |
| 34 | 204-679 | FITTING - charging lines (w/ Schrader valve) | 1 |
