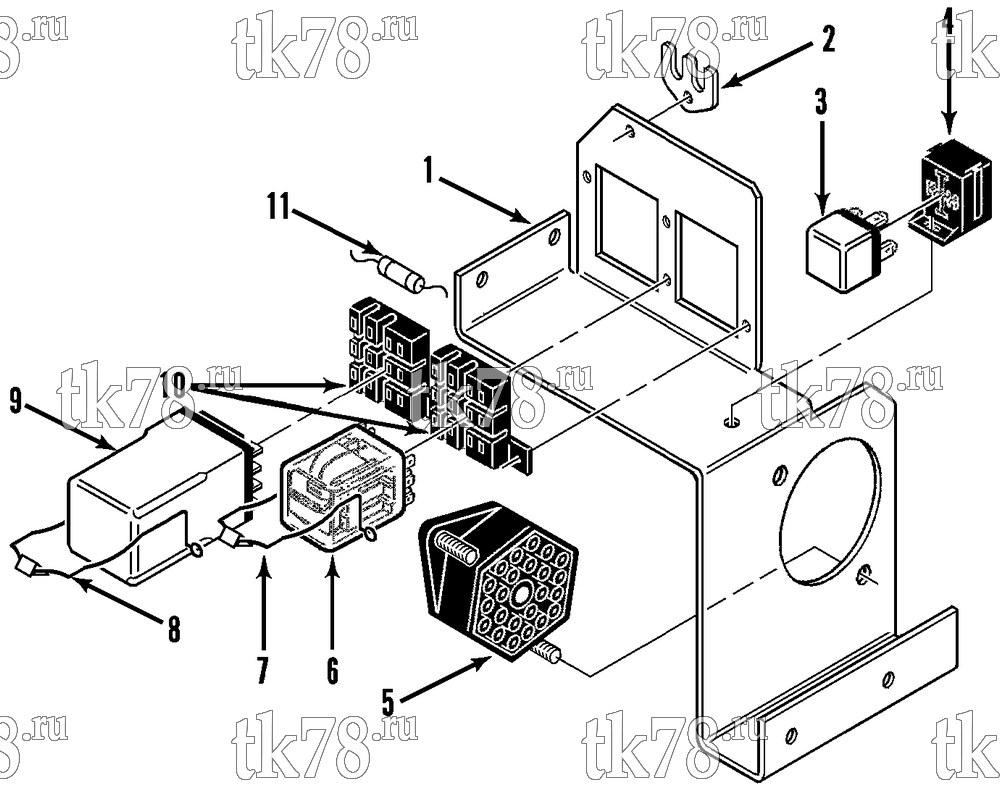

Установкa Thermo King схема RELAY ASSEMBLY (STBci2 10DR, Before 8/92) – 117B4
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-2329 | BRACKET - relay | 1 | |
| 55-3027 | SCREW - bracket to unit | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 2 | 44-7522 | JUMPER - defrost | 1 | |
| 55-3003 | SCREW - jumper | 1 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-2999 | NUT | 1 | ||
| 3 | 44-9391 | RELAY - mini (12V) | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY - mini (24V) | 1 | ||
| 4 | 44-5537 | SOCKET - relay | 1 | |
| 55-3015 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 5 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 2 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 55-4953 | NUT - connector | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 44-3186 | RELAY - defrost (12V) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY - defrost (24V) | 1 | ||
| 7 | 99-2027 | SPRING - holddown (relay) | 1 | |
| 55-2771 | CLAMP - speednut | 1 | ||
| 8 | 99-8475 | HOLDDOWN - timer | 1 | |
| 55-2771 | CLAMP - speednut | 1 | ||
| 9 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 10 | 44-3184 | SOCKET - relay/timer | 2 | |
| 55-2270 | RIVET - socket | 4 | ||
| 11 | 44-2756 | DIODE - assembly | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
