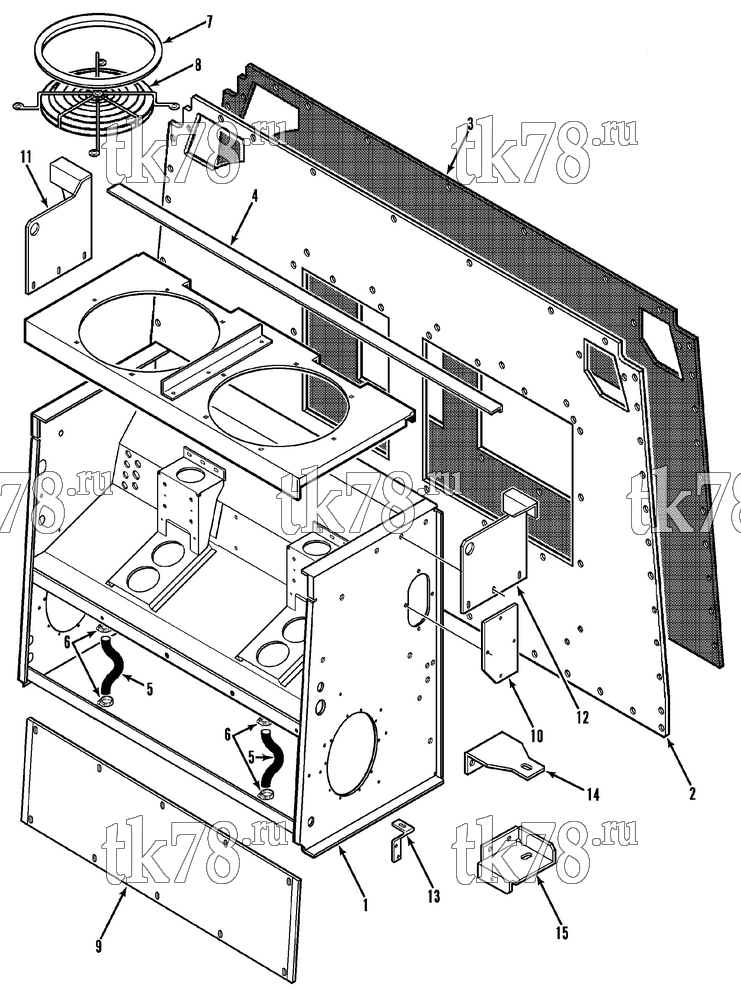

Установкa Thermo King схема STRUCTURAL COMPONENTS (M1, M4 to M6, M11 to M14A, M16, M21) – 117B14
Обновление от: 12/18/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4528 | FRAME - condenser (M1, M5) | 1 | |
| 98-4820 | FRAME - condenser (M6) | 1 | ||
| 98-4624 | FRAME - condenser (M14, M14A) | 1 | ||
| 98-4821 | FRAME - condenser (M11-M13, M16) | 1 | ||
| 98-4962 | FRAME- condenser (M21) | 1 | ||
| 2 | 98-4529 | PANEL - firewall (M1) | 1 | |
| 98-4670 | PANEL - firewall (M4, M5) | 1 | ||
| 98-4965 | PANEL - firewall (M6, M21) | 1 | ||
| 98-4822 | PANEL - firewall (M11, M11A, M12, M14, M16) | 1 | ||
| 98-4824 | PANEL - firewall (M13) | 1 | ||
| 91-5553 | STANDOFF - firewall | 22 | ||
| 55-2977 | SCREW | 22 | ||
| 55-4742 | WASHER - special | 22 | ||
| 55-1800 | LOCKWASHER | 22 | ||
| 3 | 98-4530 | PAD - firewall (M1, M4, M5) | 1 | |
| 98-4966 | PAD - firewall (M6, M21) | 1 | ||
| 98-4823 | PAD - firewall (M11-M14A, M16) | 1 | ||
| 203-396 | ADHESIVE | A/R | ||
| 4 | 98-4531 | ANGLE - roof tie | 1 | |
| 55-2969 | SCREW | 7 | ||
| 55-2964 | LOCKWASHER | 7 | ||
| 55-2958 | FLATWASHER | 7 | ||
| 55-7705 | SPACER | 7 | ||
| 55-4954 | NUT | A/R | ||
| 99-8246 | TAPE - tedlar | A/R | ||
| 5 | 66-6928 | HOSE - drain | A/R | |
| 6 | 55-2684 | CLAMP - hose | 4 | |
| 7 | 98-2357 | ORIFICE - condenser fan | 2 | |
| 8 | 98-3133 | GUARD - fan | 2 | |
| 55-2979 | SCREW | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-3045 | LOCKWASHER - done | 12 | ||
| 55-3049 | NUT - captive | 12 | ||
| 9 | 98-4535 | COVER - rear (M1, M4, M5, M11-M14A, M16) | 1 | |
| 98-4982 | COVER - rear (M6, M21) | 1 | ||
| 91-7445 | INSULATION (M6, M21) | 1 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 55-2977 | SCREW | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-6526 | INSERT | 10 | ||
| 10 | 98-4536 | COVER - fresh air | 1 | |
| 91-6865 | INSULATION (M1, M4, M5, M11-M14A, M16) | 1 | ||
| 91-7446 | INSULATION (M6, M21) | 1 | ||
| 55-2991 | SCREW | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-6554 | INSERT | 4 | ||
| 11 | 91-5564 | BRACKET - unit (roadside) | 1 | |
| 12 | 91-5565 | BRACKET - unit (curbside) | 1 | |
| 55-3305 | SCREW | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 13 | 91-5563 | ANGLE - prop rod | 1 | |
| 55-2864 | RIVET - blind | 2 | ||
| 14 | 91-5526 | BRACKET - receiver tank (top, M1, M4, M5) | 1 | |
| 91-6275 | BRACKET - receiver tank (top, M6, M11-M14A, M16, M21) | 1 | ||
| 55-2977 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-7422 | INSERT | 2 | ||
| 15 | 91-5527 | BRACKET - receiver tank (bottom) | 1 | |
| 55-2977 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 2 |
