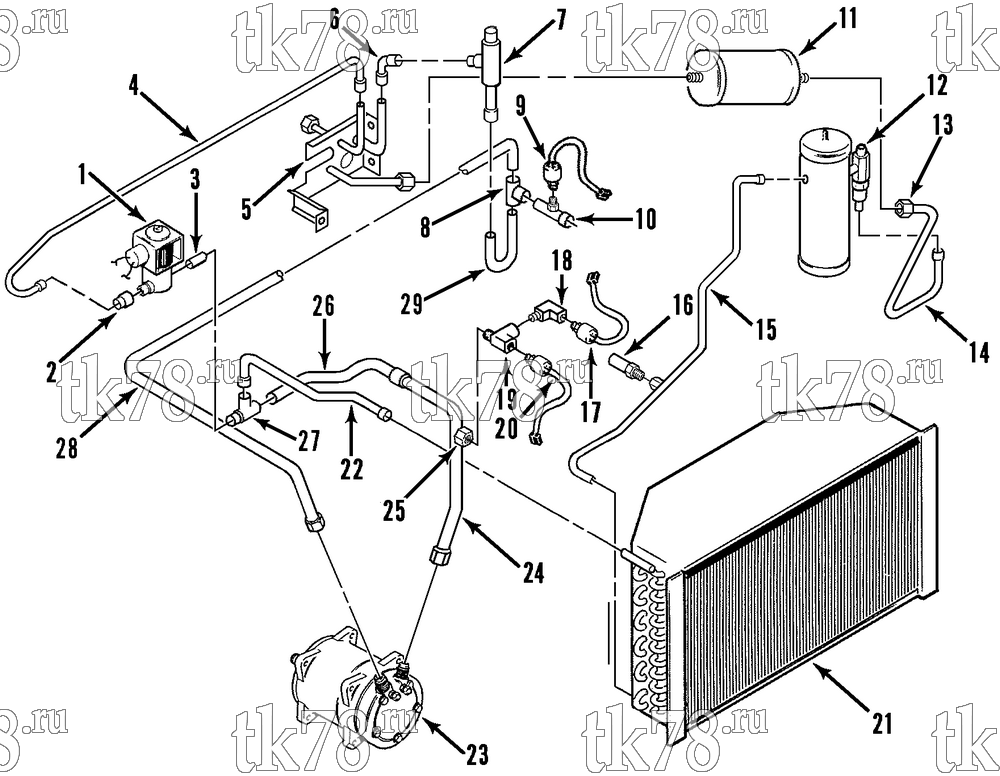

Установкa Thermo King схема REFRIGERATION COMPONENTS - CONDENSER (40s) – 117A2
Обновление от: 4/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-5221 | VALVE - solenoid (defrost, 12V) | 1 | |
| 66-3693 | VALVE - solenoid (only, 12V, see 64C6) | 1 | ||
| 66-5222 | VALVE - solenoid (defrost, 24V) | 1 | ||
| 66-4302 | VALVE - solenoid (only, 24V, see 64C6) | 1 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 2 | 55-1804 | BUSHING - valve | 1 | |
| 3 | 66-4834 | TUBE - valve | 1 | |
| 4 | 66-5062 | TUBE - defrost solenoid to bracket assembly | 1 | |
| 5 | 66-6729 | BRACKET, TUBE & ADAPTER | 1 | |
| 55-6399 | ADAPTER - liquid/defrost (o-ring seal) | 2 | ||
| 55-6400 | ADAPTER - suction (o-ring seal) | 1 | ||
| 55-6837 | SHOULDER (o-ring seal, dehydrator) | 1 | ||
| 55-3247 | BUSHING - shoulder | 1 | ||
| 55-6838 | NUT - shoulder | 1 | ||
| 6 | 55-1468 | ELBOW - cpr valve | 1 | |
| 7 | 66-4725 | VALVE - cpr | 1 | |
| 8 | 55-904 | TEE | 1 | |
| 9 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 33-768 | GASKET - switch | 1 | ||
| 10 | 66-7349 | TUBE - lpco | 1 | |
| 66-874 | FITTING - lpco | 1 | ||
| 55-7532 | CAP - end | 1 | ||
| 11 | 61-600 | DEHYDRATOR (o-ring seal) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 33-566 | O-RING - outlet (1/2) | 1 | ||
| 33-2115 | O-RING - inlet (5/8) | 1 | ||
| 55-5084 | SCREW - clamp | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 12 | 67-1180 | TANK - receiver | 1 | |
| 55-4955 | NUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 13 | 55-6356 | SHOULDER (o-ring seal) | 1 | |
| 55-6396 | NUT - shoulder | 1 | ||
| 55-7505 | BUSHING - tube to shoulder | 1 | ||
| 14 | 66-7350 | TUBE - receiver to dehydrator | 1 | |
| 15 | 66-6449 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 16 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 44-8028 | SWITCH - condenser fan | 1 | |
| 44-7991 | SWITCH - only | 1 | ||
| 18 | 55-2505 | ELBOW | 1 | |
| 19 | 55-655 | TEE | 1 | |
| 20 | 44-7992 | SWITCH - hpco | 1 | |
| 21 | 67-884 | COIL - condenser | 1 | |
| 22 | 66-7034 | TUBE - tee to condenser | 1 | |
| 23 | 102-349 | COMPRESSOR (see 97C12) | 1 | |
| 24 | 66-7347 | TUBE - compressor to discharge | 1 | |
| 25 | 66-3571 | FITTING - saddle | 1 | |
| 26 | 66-7348 | TUBE - compressor discharge | 1 | |
| 27 | 55-1654 | TEE | 1 | |
| 28 | 66-5075 | TUBE - tee to compressor | 1 | |
| 29 | 66-5071 | TUBE - compressor valve to tee | 1 |
