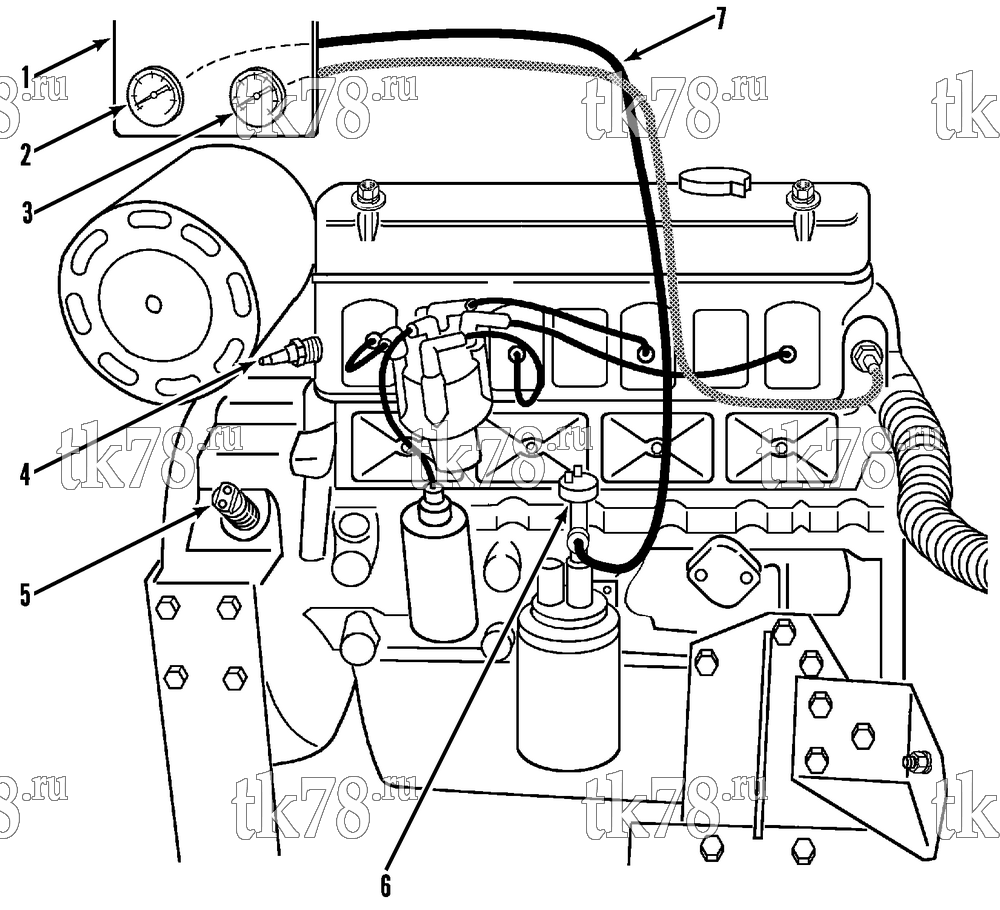

Установкa Thermo King схема ENGINE GAUGES & SENSORS – 116C7
Обновление от: 9/8/93
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1871 | BRACKET - gauge | 1 | |
| 2 | 44-7485 | GAUGE - oil pressure | 1 | |
|
10-44-7485 | Датчик давления масла | 4 800 ₽ |
|
| 3 | 44-7486 | GAUGE - water temperature | 1 | |
| 4 | 44-5027 | SWITCH - water temperature | 1 | |
| 55-2116 | BUSHING - switch | 1 | ||
| 203-385 | SEALER - thread | A/R | ||
| 5 | 44-6016 | SENSOR - rpm | 1 | |
|
10-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 8 900 ₽ |
|
| PP-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 4 310 ₽ |
|
|
| 91-1497 | INSERT - boss (rpm sensor) | 1 | ||
| 6 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 11-5321 | TEE - fitting (oil pressure switch & gauge hose) | 1 | ||
| 55-2539 | BUSHING - tee | 1 | ||
| 7 | 11-4367 | HOSE - tee to gauge (1/4 od x 35 ft lg) | A/R | |
| 10-243 | KIT - sleeve & eyelet (1/4) | 1 | ||
| 11-4841 | NUT (1/4) | 1 |
