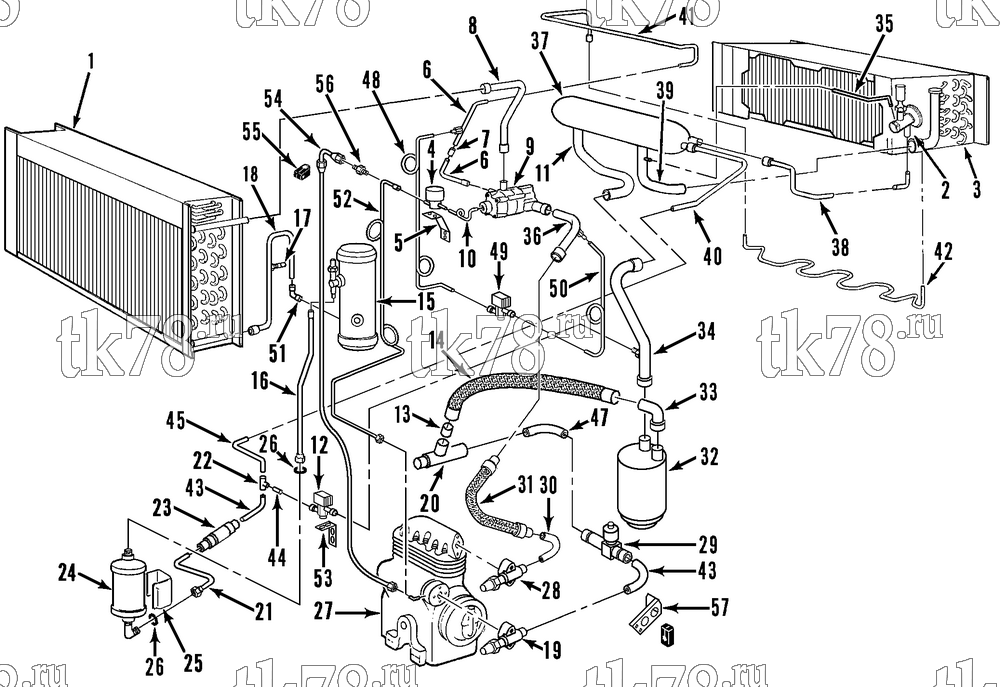

Установкa Thermo King схема REFRIGERATION COMPONENTS (w/ MODULATION) – 116B9
Обновление от: 9/10/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1075 | COIL - condenser (see 105G2) | 1 | |
| 2 | 66-8284 | VALVE - expansion | 1 | |
|
10-66-8284 | Клапан, TS, RD. TD | 34 430 ₽ |
|
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 66-5336 | ELEMENT - power | 1 | ||
| 91-1724 | BRACKET - expansion valve | 1 | ||
| 3 | 67-1185 | COIL - evaporator (see 105G10) | 1 | |
| 4 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 5 | 91-5498 | BRACKET - solenoid valve | 1 | |
| 91-3952 | BOLTSTRIP | 1 | ||
| 55-3029 | SCREW - solenoid valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 6 | 66-7307 | TUBE - 3-way to defrost | 1 | |
| 55-7068 | FITTING | 1 | ||
| 7 | 66-7669 | RESTRICTOR | 1 | |
| 8 | 66-4320 | TUBE - 3-way to condenser | 1 | |
| 9 | 66-4973 | VALVE - 3-way (see 106D3) | 1 | |
| 91-5497 | BRACKET - 3-way valve | 1 | ||
| 55-2115 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 91-3917 | BOLTSTRIP | 1 | ||
| 55-7357 | FLATWASHER | 2 | ||
| 55-7344 | NUT | 2 | ||
| 10 | 66-6596 | TUBE - solenoid valve to 3-way | 1 | |
| 11 | 66-6532 | TUBE - suction | 1 | |
| 12 | 61-283 | VALVE - solenoid (see 125C10) | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 13 | 66-6468 | TUBE - suction | 1 | |
| 14 | 66-6469 | HOSE - suction | 1 | |
| 15 | 67-1180 | TANK - receiver | 1 | |
| 55-5422 | ELBOW | 1 | ||
| 16 | 66-6473 | TUBE - receiver to dehydrator (before 3/93) | 1 | |
| 17 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 18 | 66-6472 | TUBE - condenser to receiver tank (use with receiver tank 67-817) | 1 | |
| 66-7640 | TUBE - condenser to receiver tank (use with receiver tank 67-1180) | 1 | ||
| 66-7261 | TUBE - receiver to dehydrator (3/93 & after, use with receiver tank 67-817) | 1 | ||
| 66-7641 | TUBE - receiver to dehydrator (use with receiver tank 67-1180) | 1 | ||
| 99-3060 | FITTING - saddle | 1 | ||
| 19 | 66-3576 | VALVE - suction (see 105G6) | 1 | |
| 66-341 | CAP - valve | 1 | ||
| 20 | 66-6597 | VALVE - pressure regulator | 1 | |
| 91-3987 | BRACKET - valve | 1 | ||
| 55-7688 | U-BOLT | 2 | ||
| 55-4665 | FLATWASHER | 4 | ||
| 55-7011 | NUT | 4 | ||
| 21 | 66-7262 | TUBE - dehydrator to check valve | 1 | |
| 22 | 55-3251 | TEE | 1 | |
| 23 | 66-5763 | VALVE - check | 1 | |
| 24 | 61-800 | DEHYDRATOR | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 2 550 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 400 ₽ |
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 99-4326 | PAD - dehydrator | 2 | ||
| 25 | 91-7602 | HANGER - dehydrator | 1 | |
| 91-5496 | PLATE | 1 | ||
| 55-6994 | SCREW | 2 | ||
| 55-7172 | SCREW | 2 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 4 | ||
| 26 | 33-1015 | O-RING - dehydrator | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 27 | 102-476 | COMPRESSOR - X214 (see 105G6) | 1 | |
| 28 | 66-3942 | VALVE - discharge (see 105G6) | 1 | |
| 29 | 66-7302 | VALVE - modulation (see 123A8) | 1 | |
| 30 | 66-1332 | TUBE - valve to vibrasorber | 1 | |
| 31 | 66-4183 | VIBRASORBER | 1 | |
| 32 | 67-1077 | TANK - accumulator (see 105G2) | 1 | |
| 33 | 55-7159 | ELBOW | 1 | |
| 34 | 66-7259 | TUBE - exchanger to accumulator | 1 | |
| 66-5481 | ADAPTER | 1 | ||
| 91-4210 | BOLTSTRIP | 2 | ||
| 55-7357 | FLATWASHER | 4 | ||
| 55-7344 | NUT | 4 | ||
| 35 | 66-7258 | TUBE - equalizer | 1 | |
| 36 | 66-7308 | TUBE - vibrasorber to 3-way | 1 | |
| 55-7068 | FITTING | 1 | ||
| 37 | 67-931 | HEAT EXCHANGER | 1 | |
| 91-3482 | NAMEPLATE - pressure vessel | 1 | ||
| 99-9469 | BRACKET - heat exchanger | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 2 | ||
| 38 | 66-6548 | TUBE - exchanger to coil | 1 | |
| 39 | 66-6467 | TUBE - coil to exchanger | 1 | |
| 66-5752 | FITTING - adapter | 1 | ||
| 40 | 66-6535 | TUBE - exchanger to bulkhead | 1 | |
| 41 | 66-3391 | TUBE - defrost | 1 | |
| 42 | 91-3941 | TUBE - defrost serpentine | 1 | |
| 203-391 | SEALER - tape (permagum) | 1 | ||
| 43 | 66-7263 | TUBE - check valve to tee | 1 | |
| 44 | 66-7264 | TUBE - tee to solenoid valve | 1 | |
| 45 | 66-7265 | TUBE - tee to bulkhead | 1 | |
| 46 | 66-7304 | TUBE - modulation to suction | 1 | |
| 47 | 66-7303 | TUBE - regulator to modulation | 1 | |
| 48 | 66-7305 | TUBE - solenoid to defrost (modulation) | 1 | |
| 49 | 66-5374 | VALVE - solenoid (hot gas bypass, see 138A7) | 1 | |
| 50 | 66-7306 | TUBE - compressor to solenoid (modulation) | 1 | |
| 51 | 55-3441 | ELBOW - condenser to tank | 1 | |
| 52 | 66-6598 | TUBE - solenoid to compressor (before 1/95) | 1 | |
| 53 | 91-3953 | BRACKET - valve | 1 | |
| 54 | 66-5177 | HOSE - solenoid to compressor (1/95 & after) | 1 | |
| 55 | 55-6544 | CLAMP - hose | 1 | |
| 55-7035 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 1 | ||
| 56 | 66-5607 | ADAPTER - hose | 1 | |
| 57 | 91-7011 | BRACKET - support (discharge vibrasorber, per ECO 64645) | 1 |
