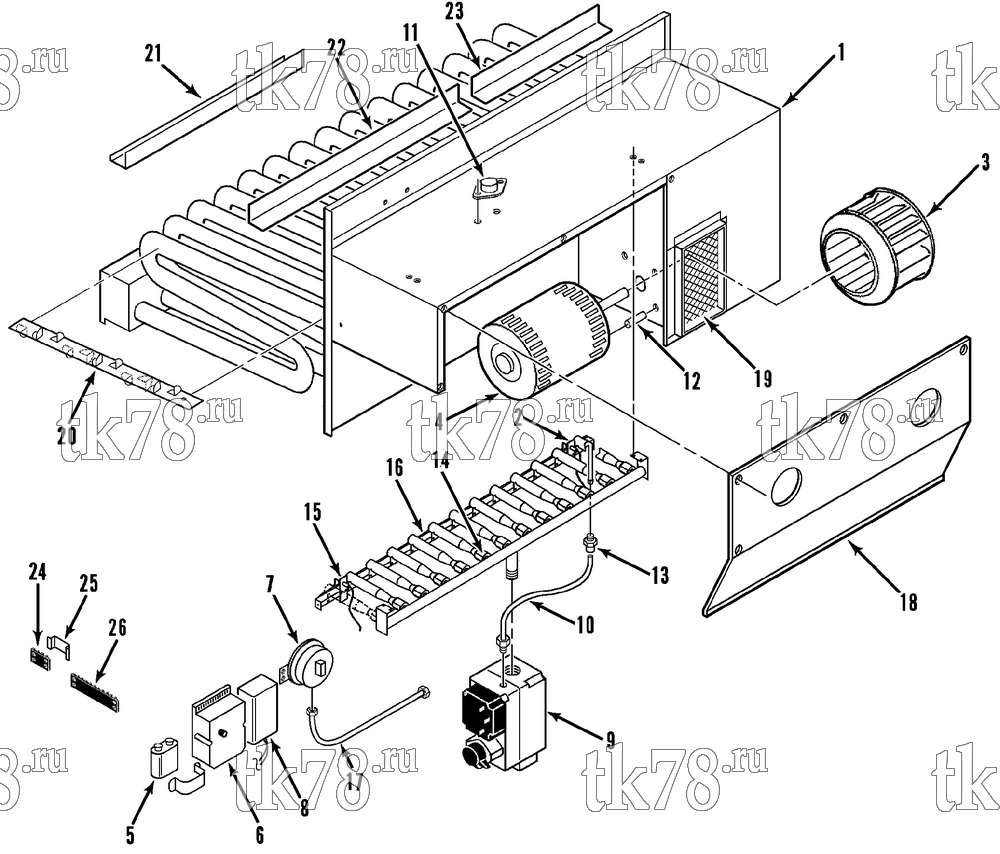

Установкa Thermo King схема FURNACE ASSEMBLY – 116A14
Обновление от: 7/1/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-923 | FURNACE (280/230VAC, complete, incl 1 thru 20) | 1 | |
| 67-1145 | FURNACE (460VAC, complete, incl 1 thru 20) | 1 | ||
| 67-939 | HEAT EXCHANGER | 1 | ||
| 91-2160 | NAMEPLATE - ignition control checkout | 1 | ||
| 91-2163 | NAMEPLATE - lighting instructions | 1 | ||
| 2 | 44-8673 | ELECTRODE - sparker | 1 | |
| 3 | 77-1964 | FAN - combustion vent | 1 | |
| 4 | 104-522 | MOTOR - vent fan (230V) | 1 | |
| 104-575 | MOTOR - vent fan (460V) | 1 | ||
| 5 | 44-8544 | CAPACITOR - motor | 1 | |
| 6 | 44-9765 | CONTROLLER - ignition | 1 | |
| 7 | 44-8547 | SWITCH - air pressure differential | 1 | |
| 8 | 44-8548 | SWITCH - fan & limit | 1 | |
| 9 | 44-8546 | VALVE & REGULATOR | 1 | |
| 10 | 91-2161 | TUBE - lighter | 1 | |
| 91-2162 | CLAMP - tube | 2 | ||
| 11 | 41-140 | SWITCH - flame rollout | 1 | |
| 12 | 91-2164 | STANDOFF - blower | 4 | |
| 13 | 91-4960 | ORIFICE - runner tube | 1 | |
| 14 | 91-2159 | ORIFICE - burner | 10 | |
| 15 | 44-9493 | ELECTRODE - pilot sensor | 1 | |
| 16 | 91-4961 | MANIFOLD - burner | 1 | |
| 17 | 91-4962 | TUBE - exhaust | 1 | |
| 18 | 91-4965 | SHIELD - observation | 1 | |
| 19 | 91-4963 | SCREEN - flue outlet | 1 | |
| 20 | 91-2170 | SUPPORT - burner baffle | 10 | |
| 91-4964 | BAFFLE - burner | 10 | ||
| 21 | 91-1498 | ANGLE - furnace support | 1 | |
| 22 | 91-4867 | ANGLE - furnace stiffener | 1 | |
| 23 | 91-4866 | ANGLE - support | 1 | |
| 24 | 44-2880 | BOARD - terminal (2 terminal) | 1 | |
| 91-4882 | MARKSTRIP | 1 | ||
| 25 | 91-4883 | BRACKET - terminal board | 1 | |
| 26 | 44-5057 | BOARD - terminal (8 terminal) | 1 | |
| 91-4884 | MARKSTRIP | 1 |
