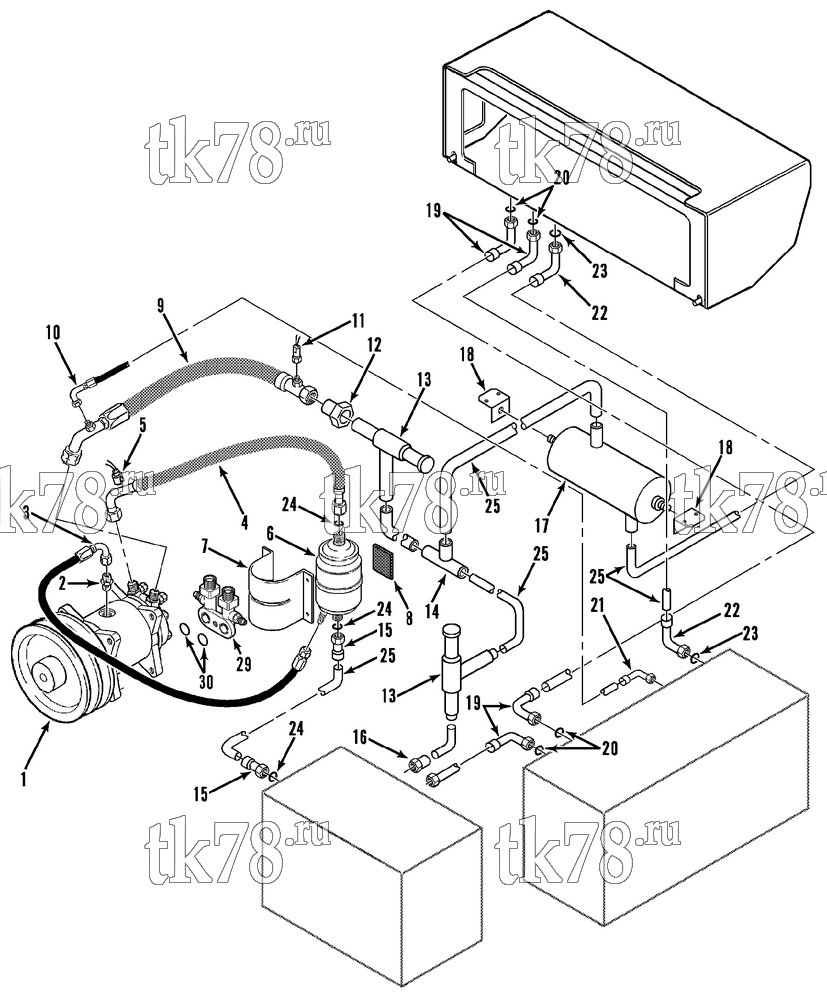

Установкa Thermo King схема INSTALLATION COMPONENTS (MTJ w/ POWER PACK) – 115G11
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-839 | COMPRESSOR - TM15-XD (see note) | 1 | |
| 67-404 | OIL - compressor | 1 | ||
| 2 | 66-5451 | FITTING - adapter (oil separator) | 1 | |
| 3 | 66-7461 | HOSE - oil separator | 1 | |
| 4 | 66-7460 | HOSE - discharge | 1 | |
| 5 | 41-105 | SWITCH - high temperature | 1 | |
| 6 | 66-8546 | SEPARATOR - oil | 1 | |
| 66-8546 OEM | Масляный сепаратор, V/VM-Series | 13 030 ₽ |
|
|
| 10-66-8546 | Масляный сепаратор, V/VM-Series | 9 650 ₽ |
|
|
| 7 | 99-9209 | BRACKET - separator | 1 | |
| 8 | 99-4326 | PAD - separator | 1 | |
| 9 | 66-7459 | HOSE - suction | 1 | |
| 10 | 66-5029 | ADAPTER - liquid injection | 1 | |
| 66-5028 | FILTER - adapter | 1 | ||
| 11 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 12 | 55-5692 | ADAPTER | 1 | |
| 13 | 66-5013 | VALVE - cpr | 2 | |
| 14 | 55-6174 | TEE | 1 | |
| 15 | 55-1610 | ADAPTER (1/2 flare) | 2 | |
| 16 | 55-5692 | ADAPTER (5/8 flare) | 1 | |
| 17 | 67-1157 | TANK - accumulator | 1 | |
| 18 | 91-5452 | BRACKET - accumulator | 2 | |
| 19 | 66-7191 | TUBE - o-ring seal shoulder (3/8) | 4 | |
| 20 | 33-1015 | O-RING (3/8) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 66-7192 | TUBE - o-ring seal shoulder (1/4) | 1 | |
| 22 | 66-7193 | TUBE - o-ring seal shoulder (7/8) | 1 | |
| 66-7335 | TUBE - o-ring seal shoulder (5/8) | 1 | ||
| 66-7336 | TUBE - o-ring seal shoulder (1/2) | 1 | ||
| 23 | 33-1222 | O-RING (3/4) | 2 | |
| 24 | 33-566 | O-RING (1/2) | 3 | |
| 25 | 67-712 | TUBE (3/8 x 50 ft) | 1 | |
| 26 | 67-1042 | TUBE (5/8 x 50 ft) | 1 | |
| 27 | 67-1041 | TUBE (7/8 x 50 ft) | 1 | |
| 28 | 67-1126 | TUBE (1/2 x 50 ft) | 1 | |
| 29 | 22-992 | MANIFOLD - compressor (one belt, 90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 30 | 33-2882 | O-RING | 2 | |
| 203-346 | KIT - acid test | 1 |
