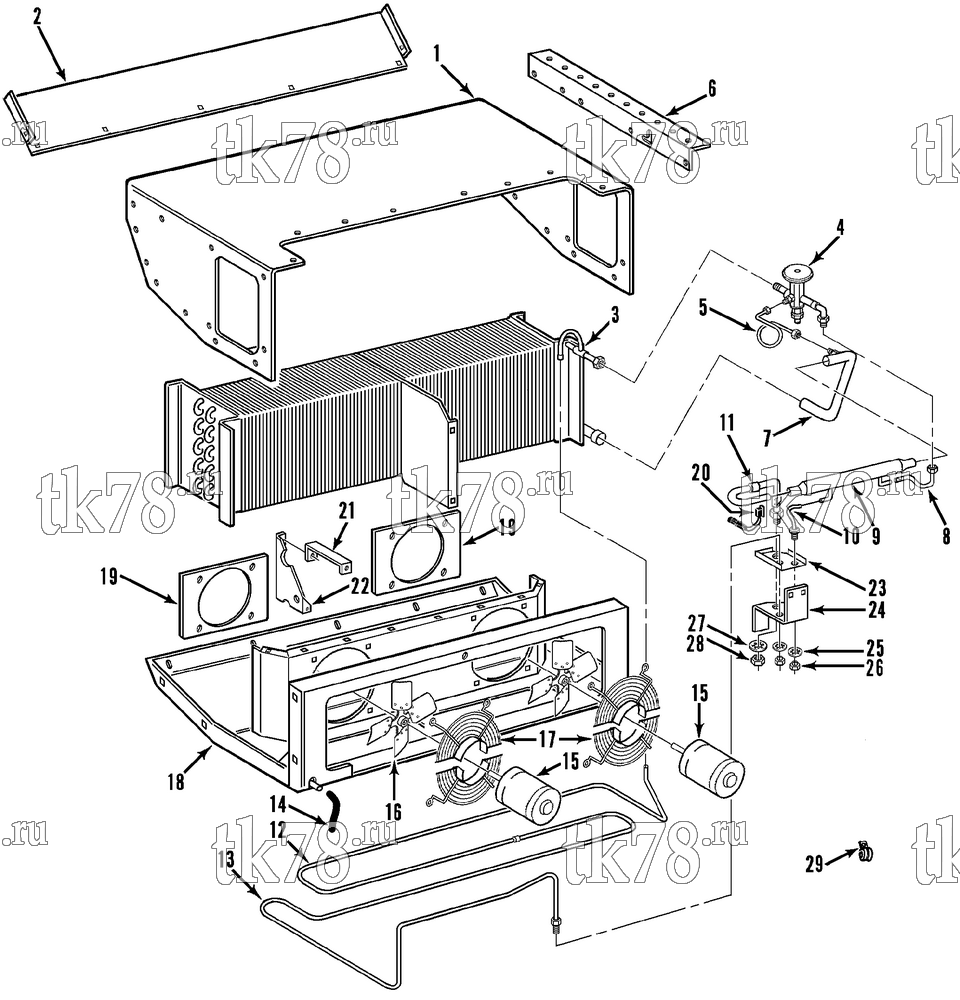

Установкa Thermo King схема EVAPORATOR GROUP – 115D13
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4304 | HOUSING - evaporator | 1 | |
| 55-2977 | SCREW - housing | 22 | ||
| 55-1800 | LOCKWASHER | 22 | ||
| 55-2086 | FLATWASHER | 22 | ||
| 55-3059 | NUT - captive | 22 | ||
| 2 | 98-4305 | COVER - access (rear) | 1 | |
| 3 | 67-841 | COIL - evaporator | 1 | |
| 55-3059 | NUT - captive | 4 | ||
| 33-1084 | GROMMET - distributor | 1 | ||
| 55-1587 | SCREW - coil | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 66-5016 | VALVE - expansion (R404A) | 1 | |
| 66-5335 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 91-1048 | SCREEN - mesh | 2 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 5 | 66-5992 | TUBE - equalizer | 1 | |
| 6 | 91-4497 | BRACKET - evaporator (curbside) | 1 | |
| 91-4498 | BRACKET - evaporator (roadside) | 1 | ||
| 55-2977 | SCREW - bracket | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 | ||
| 7 | 66-5989 | TUBE - evaporator to exchanger | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 8 | 66-5988 | TUBE - exchanger to expansion valve | 1 | |
| 9 | 67-351 | HEAT EXCHANGER | 1 | |
| 10 | 66-5990 | TUBE - liquid (inlet) | 1 | |
| 66-6036 | ADAPTER - bulkhead | 1 | ||
| 11 | 66-5987 | TUBE - suction | 1 | |
| 55-7622 | ADAPTER - bulkhead | 1 | ||
| 33-415 | GROMMET (5/8 id) | 1 | ||
| 12 | 66-4614 | TUBE - defrost (roadside) | 1 | |
| 13 | 66-6732 | TUBE - defrost (curbside) | 1 | |
| 66-6036 | ADAPTER - bulkhead | 1 | ||
| 33-282 | GROMMET (3/8 id) | 2 | ||
| 14 | 91-2434 | HOSE - drain | 2 | |
| 15 | 41-436 | MOTOR - fan (24V) | 2 | |
| 44-8526 | MOTOR - fan (12V) | 2 | ||
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 44-8054 | BRUSH & END BELL | 1 | ||
| 77-1461 | BEARING | 2 | ||
| 16 | 78-808 | FAN | 2 | |
| 17 | 91-628 | MOUNT & SCREEN - motor | 4 | |
| 99-4520 | STRIP (neoprene) | 4 | ||
| 18 | 98-4891 | BASE - evaporator drain pan | 1 | |
| 19 | 98-3123 | ORIFICE - fan | 2 | |
| 55-2957 | SCREW - orifice | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 20 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-5639 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2990 | NUT | 2 | ||
| 21 | 91-3154 | BRACKET - evaporator (vertical) | 1 | |
| 22 | 91-3153 | BRACKET - evaporator (vertical) | 1 | |
| 23 | 91-3032 | PLATE - locking | 1 | |
| 24 | 91-3031 | BRACKET - tube | 1 | |
| 25 | 55-6843 | LOCKWASHER | 2 | |
| 26 | 55-6780 | NUT - bulkhead adapter (liquid/defrost) | 2 | |
| 27 | 55-6812 | NUT - bulkhead adapter (suction) | 1 | |
| 28 | 55-7045 | LOCKWASHER | 1 | |
| 33-1015 | O-RING (3/8) | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 33-2115 | O-RING (5/8) | 1 | ||
| 29 | 55-547 | CLAMP (0.375 dia) | 1 | |
| 55-548 | CLAMP (0.437 dia) | 2 | ||
| 55-2991 | SCREW - clamp | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT (hexstop) | 3 |
