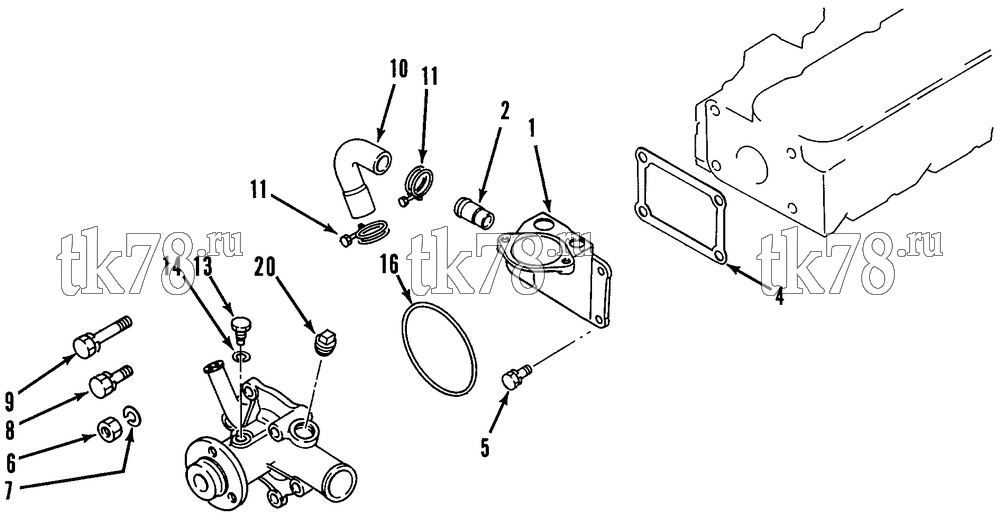

Установкa Thermo King схема WATER PUMP GROUP – 115B6
Обновление от: 7/10/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9265 | HOUSING - thermostat | 1 | |
| 2 | 11-5862 | PIPE - bypass | 1 | |
| 3 | 55-5504 | PLUG - housing | 1 | |
| 4 | 33-3169 | GASKET - housing | 1 | |
| 5 | 55-5455 | BOLT - housing | 2 | |
| 6 | 55-2433 | NUT - pump | 2 | |
| 7 | 55-790 | LOCKWASHER | 2 | |
| 8 | 55-5470 | BOLT (30 mm lg) | 1 | |
| 9 | 55-5503 | BOLT (50 mm lg) | 1 | |
| 10 | 11-5861 | HOSE - bypass (neoprene) | 1 | |
|
10-11-5861 | Патрубок системы охлаждения, Isuzu 2.2 DI (D201) | 2 200 ₽ |
|
| 11-5932 | HOSE - bypass (silicone) | 1 | ||
| 11 | 55-3401 | CLAMP - hose | 1 | |
| 12 | 11-9356 | PUMP - water (ELC compatible) | 1 | |
|
US-11-9356 | Водяной насос, Isuzu 2.2 (D201), SB-II/III / SMX/SMX-II | 10 780 ₽ |
|
|
PP-11-9356 | Водяной насос, Isuzu 2.2 (D201), SB-II/III / SMX/SMX-II | 4 670 ₽ |
|
| 811-9356 | PUMP - water (remanufactured, di 2.2 & se 2.2) | 1 | ||
| 13 | 55-2454 | SCREW - set | 1 | |
| 14 | 55-790 | LOCKWASHER | 1 | |
| 15 | 55-6386 | PLUG | 1 | |
| 16 | 33-1646 | O-RING | 1 |
