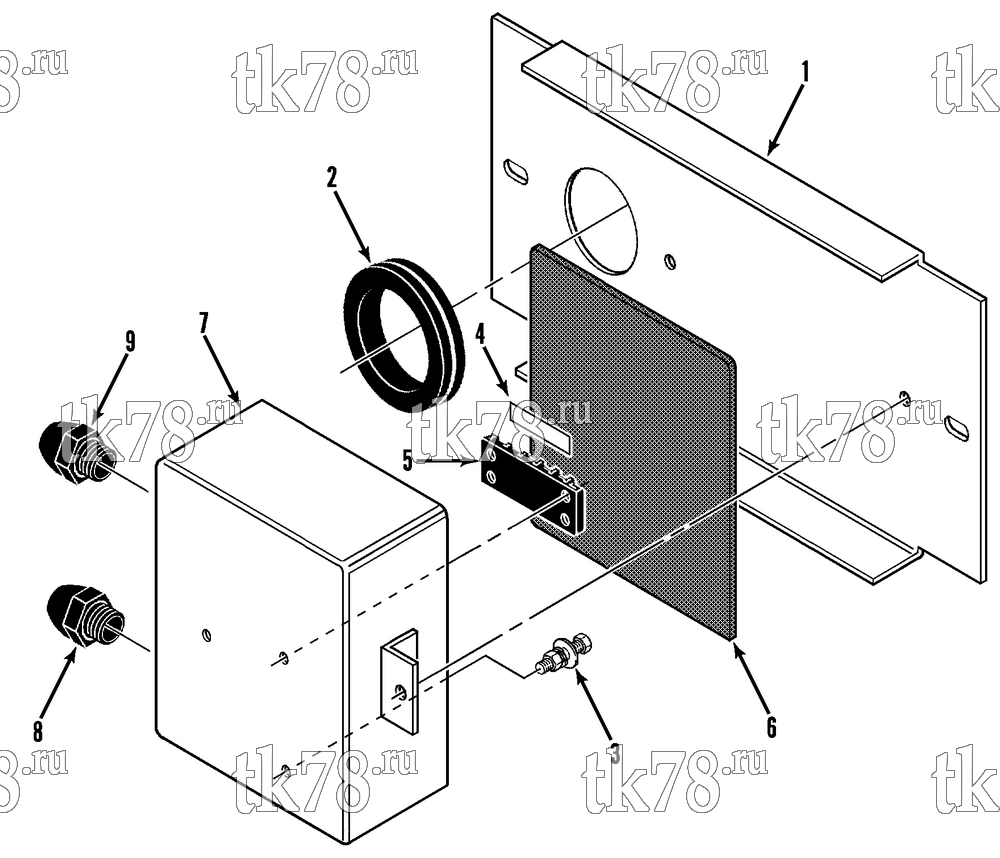

Установкa Thermo King схема JUNCTION BOX ASSEMBLY – 115B4
Обновление от: 2/21/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5309 | COVER | 1 | |
| 55-2977 | SCREW - cover | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-6526 | NUT - insert | 2 | ||
| 2 | 33-628 | GROMMET | 1 | |
| 3 | 55-3000 | SCREW - ground | 1 | |
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 4 | 91-5322 | MARKSTRIP | 1 | |
| 5 | 44-4341 | BOARD - terminal | 1 | |
| 55-5416 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-5754 | NUT | 1 | ||
| 6 | 33-2480 | GASKET | 1 | |
| 7 | 91-5310 | BOX - junction | 1 | |
| 55-3018 | SCREW - box | 2 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 8 | 55-6742 | CONNECTOR | 1 | |
| 9 | 55-6141 | CONNECTOR | 1 | |
| 55-2635 | NUT | 2 |
