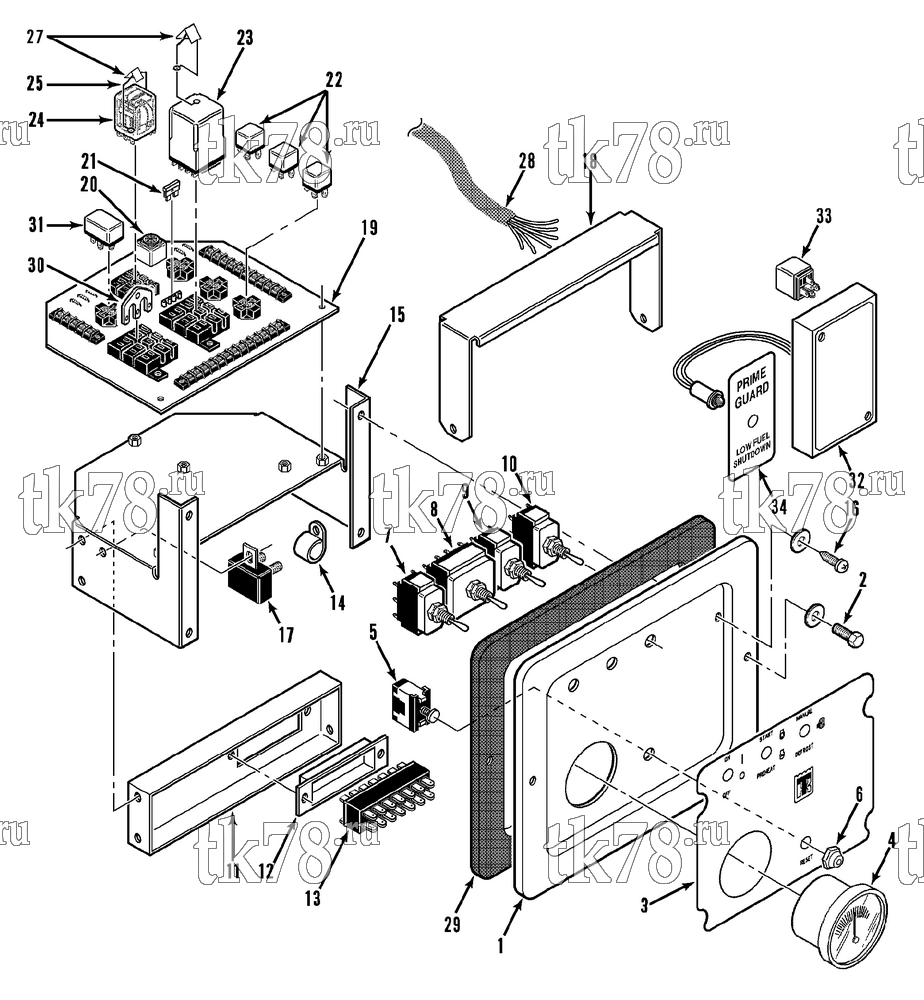

Установкa Thermo King схема SWITCH PANEL ASSEMBLY (CYCLE SENTRY) – 115B13
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1567 | PANEL - switch | 1 | ||
| 1 | 91-5383 | PANEL - switch | 1 | |
| 2 | 55-2977 | SCREW - panel | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3028 | WASHER - sealing | 2 | ||
| 55-4415 | NUT - captive | 2 | ||
| 55-6733 | INSERT - threaded | 2 | ||
| 3 | 91-5387 | NAMEPLATE - switch panel | 1 | |
| 4 | 44-9302 | AMMETER | 1 | |
| 55-346 | NUT - ammeter | 4 | ||
| 55-401 | FLATWASHER | 2 | ||
| 55-1852 | LOCKWASHER | 4 | ||
| 5 | 44-7774 | BREAKER - circuit | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 6 | 44-8688 | BOOT - switch | 1 | |
| 7 | 44-7792 | SWITCH - on/off | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 8 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 9 | 44-7793 | SWITCH - defrost | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 10 | 44-7929 | SWITCH - Cycle Sentry | 1 | |
|
10-44-7929 | Выключатель двухполюсный, SB-III/SMX/SMX-II/SL | 5 920 ₽ |
|
| 11 | 91-5385 | BRACKET - receptacle | 1 | |
| 55-3015 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 12 | 99-5316 | BRACKET - plug | 1 | |
| 55-3588 | RIVET - bracket | 2 | ||
| 13 | 44-7524 | PLUG - connector (14-pin) | 1 | |
| 55-103 | SCREW - plug | 2 | ||
| 14 | 55-3065 | CLAMP | 1 | |
| 15 | 91-5388 | BRACKET - printed circuit board | 1 | |
| 16 | 55-2997 | SCREW - bracket | 4 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-1683 | NUT - speed | 4 | ||
| 17 | 44-5512 | BREAKER - circuit | 1 | |
|
10-44-5512 | Автоматический выключатель, 30A | 2 260 ₽ |
|
| 55-3099 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 18 | 91-5389 | BRACKET - holddown | 1 | |
| 55-3099 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 19 | 44-9115 | BOARD - printed circuit (Cycle Sentry) | 1 | |
|
10-44-9115 | Плата | 28 740 ₽ |
|
| 55-3025 | SCREW - board | 4 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 20 | 41-8291 | BUZZER - warning | 1 | |
| 21 | 44-9758 | FUSE (10 amp) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 1 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 22 | 44-9111 | RELAY - mini | 3 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 23 | 44-7192 | SWITCH - starter lockout | 1 | |
|
10-44-7192 | Выключатель стартера | 19 780 ₽ |
|
| 24 | 44-3186 | RELAY (12VDC) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 25 | 99-2027 | SPRING - holddown | 1 | |
| 26 | 99-8475 | HOLDDOWN - spring | 1 | |
| 55-7058 | RIVET - spring | 4 | ||
| 27 | 55-2771 | CLIP - spring | 2 | |
| 28 | 41-342 | HARNESS - Cycle Sentry | 1 | |
| 29 | 33-1839 | GASKET - panel | 1 | |
| 203-397 | ADHESIVE - gasket | A/R | ||
| 30 | 44-7522 | JUMPER - defrost (3-pin) | 1 | |
| 44-9017 | JUMPER - defrost (2-pin) | 1 | ||
| 31 | 44-7263 | RELAY - Battery Sentry (37 amp alternator) | 1 | |
|
10-44-7263 | Реле, Sentry | 7 100 ₽ |
|
| 44-8029 | RELAY - Battery Sentry (65 amp alternator) | 1 | ||
| 40-573 | KIT - prime guard | 1 | ||
| 32 | 41-1448 | MODULE | 1 | |
| 55-3031 | SCREW - module | 2 | ||
| 55-1294 | NUT | 2 | ||
| 33 | 44-9111 | RELAY - module | 1 | |
|
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 34 | 91-7236 | NAMEPLATE - prime guard | 1 |
