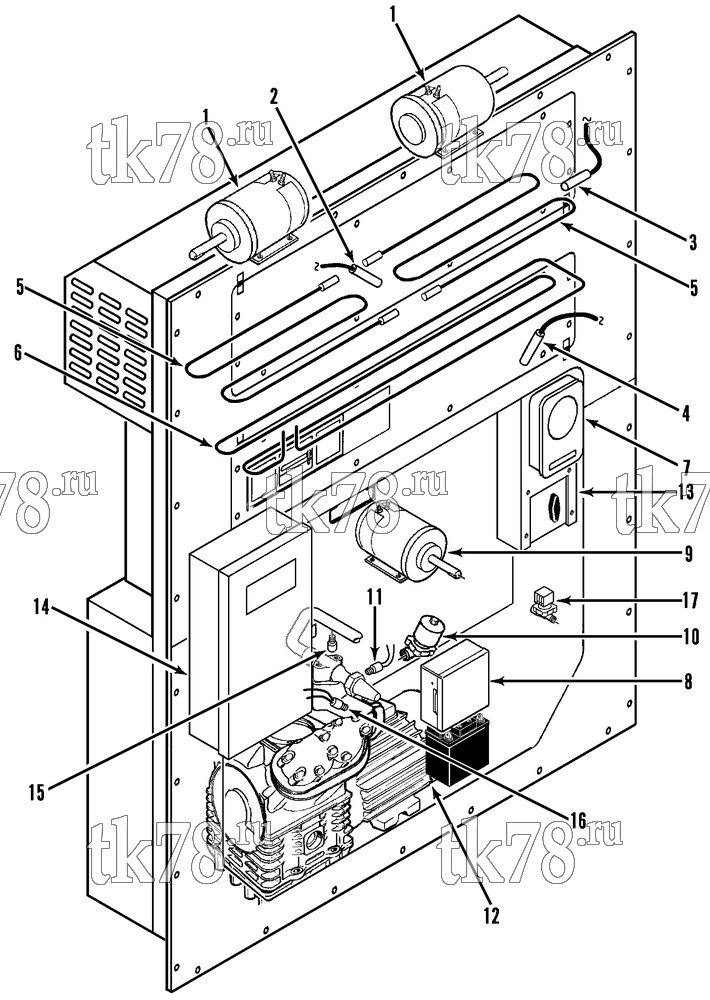

Установкa Thermo King схема ELECTRICAL COMPONENTS – 115A9
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-628 | MOTOR - evaporator fan (see 102F1) | 2 | |
| 2 | 44-6565 | SENSOR - defrost (see 102E14) | 1 | |
| 3 | 44-5568 | SENSOR - return air (see 102E14) | 1 | |
| 4 | 44-5448 | SENSOR - discharge air (see 102E14) | 1 | |
| 5 | 45-1391 | HEATER - evaporator coil (see 102E14) | 2 | |
| 6 | 45-1471 | HEATER - drip pan (see 102E14) | 1 | |
| 7 | 45-1831 | THERMOMETER (see 107D14) | 1 | |
| 8 | 203-382 | BATTERY & HARNESS (see 102B14) | 1 | |
| 9 | 104-627 | MOTOR - condenser fan (see 115B1) | 1 | |
| 10 | 66-7793 | VALVE - modulation (see 114G6) | 1 | |
| 11 | 41-1626 | SWITCH - hpco (see 112G14) | 1 | |
| 12 | 104-515 | MOTOR - compressor drive (see 112G14) | 1 | |
| 13 | 45-1303 | TRANSFORMER (see 102F4) | 1 | |
| 14 | 98-3860 | BOX - control (see 114G7) | 1 | |
| 15 | 41-309 | SWITCH - thermostat (see 114G6) | 1 | |
| 44-5838 | CONNECTOR - switch (2-pin, male) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 16 | 44-5840 | SWITCH - 2 speed condenser fan (see 112G14) | 1 | |
| 17 | 66-6384 | VALVE - solenoid (liquid/refrigeration, see 116G10) | 1 | |
|
10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
