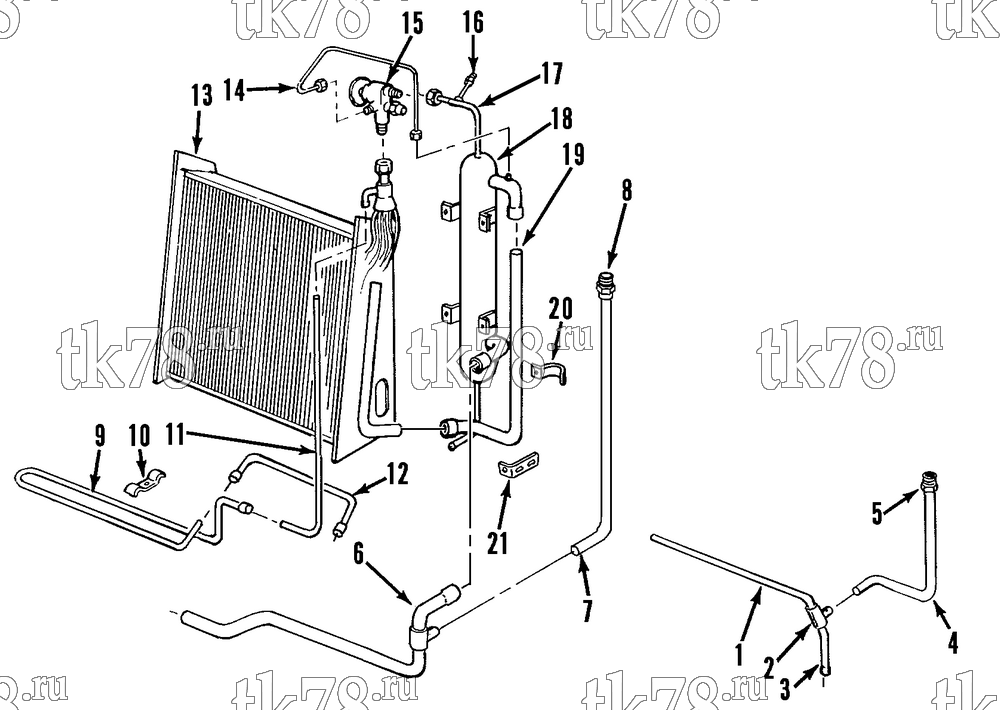

Установкa Thermo King схема REFRIGERATION COMPONENTS - EVAPORATOR – 115A7
Обновление от: 3/19/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-4413 | TUBE - 3-way valve to vib (PEG) | 1 | |
| 2 | 55-3518 | TEE | 1 | |
| 3 | 66-4653 | TUBE - 3-way to tee | 1 | |
| 4 | 66-4414 | TUBE - bulkhead (PEG) | 1 | |
| 5 | 55-1610 | CONNECTOR - PEG | 1 | |
| 6 | 66-4226 | TUBE - accumulator tank to heat exchanger | 1 | |
| 66-4383 | TUBE - heat exchanger to accumulator tank (PEG, PE) | 1 | ||
| 66-3945 | TEE (PEG, PE) | 1 | ||
| 7 | 66-4382 | TUBE - suction bulkhead (PEG & PE) | 1 | |
| 8 | 55-4274 | ADAPTER (PEG & PE) | 1 | |
| 9 | 66-4218 | TUBE - defrost | 1 | |
| 10 | 99-8001 | CLAMP - defrost tube | 1 | |
| 55-4954 | NUT | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 11 | 66-4220 | TUBE - defrost to distributor | 1 | |
| 12 | 66-4219 | TUBE - 3-way to defrost | 1 | |
| 66-4381 | TUBE - 3-way to defrost (PE) | 1 | ||
| 13 | 67-831 | COIL - evaporator (w/ solder expansion fitting) | 1 | |
| 67-825 | COIL - evaporator (rev air w/ solder expansion fitting) | 1 | ||
| 55-3089 | SCREW - coil (1-1/2 in lg) | 2 | ||
| 55-5599 | SCREW - coil (3-1/4 in lg) | 2 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-4954 | NUT | 2 | ||
| 55-3344 | SCREW (1/4-20) | 2 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 14 | 66-5103 | TUBE - equalizer | 1 | |
| 15 | 66-820 | VALVE - expansion (w/ threaded fitting) | 1 | |
| 66-633 | ELEMENT - power | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4437 | VALVE - expansion (w/ solder fitting, R12) | 1 | ||
| 66-633 | ELEMENT - power | 1 | ||
| 66-9379 | SCREEN - inlet | 1 | ||
| 66-4349 | VALVE - expansion | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4438 | VALVE - expansion (w/ solder fitting, R502) | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 66-9379 | SCREEN - inlet | 1 | ||
| 16 | 55-312 | ADAPTER - liquid (PEG & PE) | 1 | |
| 17 | 55-2181 | TEE - liquid line (PEG & PE) | 1 | |
| 18 | 67-730 | HEAT EXCHANGER (standard units) | 1 | |
| 67-758 | HEAT EXCHANGER (PEG, PE) | 1 | ||
| 19 | 66-4217 | TUBE - coil to evaporator | 1 | |
| 66-4387 | TUBE - coil to evaporator (rev air) | 1 | ||
| 20 | 55-5274 | CLAMP (1.25 dia) | 1 | |
| 55-2977 | SCREW | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 21 | 99-8574 | BRACKET - tubes (PEG) | 2 | |
| 55-3344 | SCREW | 2 | ||
|
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 |
