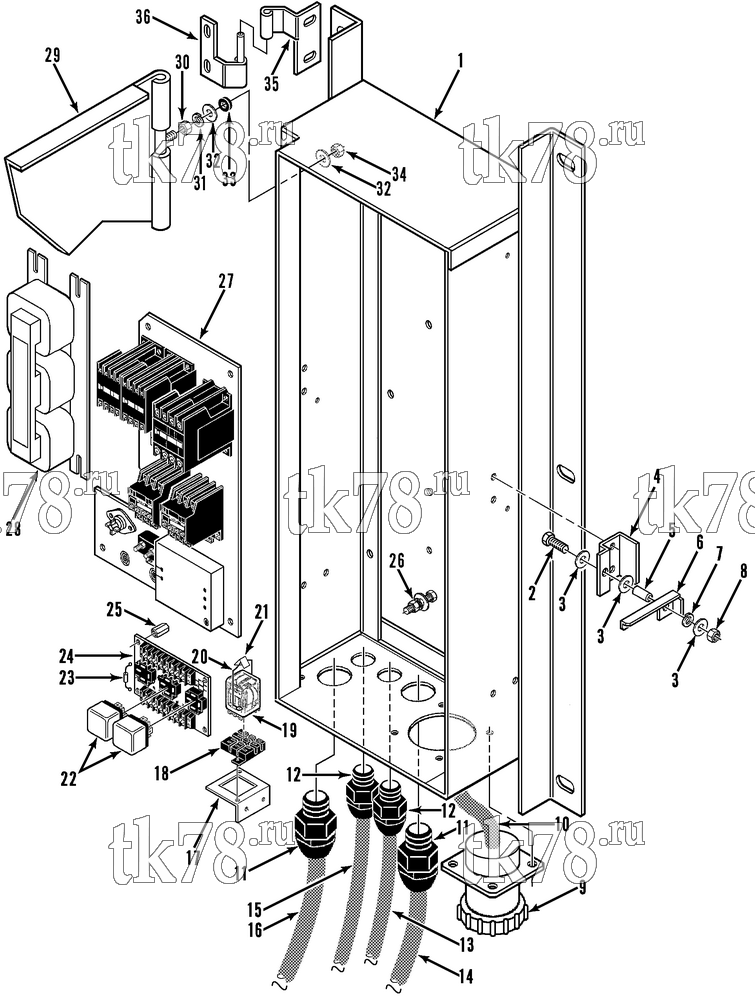

Установкa Thermo King схема CONTROL BOX (NWE MAX II TOTE 460V) – 115A11
Обновление от: 2/23/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4491 | BOX - control | 1 | |
| 55-2997 | SCREW - box | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-6526 | INSERT - threaded | 6 | ||
| 2 | 55-2957 | SCREW - latch | 1 | |
| 3 | 55-2086 | FLATWASHER | 3 | |
| 4 | 99-8993 | BRACKET - latch | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 5 | 99-8994 | SPACER - latch | 1 | |
| 6 | 99-8149 | LATCH - door | 1 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 7 | 55-2363 | LOCKWASHER | 1 | |
| 8 | 55-4953 | NUT | 1 | |
| 9 | 44-3082 | RECEPTACLE - power | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 10 | 41-315 | HARNESS - receptacle | 1 | |
| 11 | 55-5885 | CONNECTOR - cable grip | 2 | |
| 12 | 55-6742 | CONNECTOR - cable grip | 2 | |
| 55-2635 | NUT | 2 | ||
| 13 | 44-2861 | CABLE - motor | 1 | |
| 14 | 41-493 | CABLE - fan motor | 1 | |
| 15 | 44-8402 | CABLE - heater | 1 | |
| 16 | 41-312 | HARNESS - main (before 7/95) | 1 | |
| 41-312 | HARNESS - main (after 6/95) | 1 | ||
| 17 | 99-4268 | BRACKET - relay | 1 | |
| 55-3099 | SCREW - bracket | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 18 | 44-3184 | SOCKET - relay | 1 | |
| 19 | 44-3186 | RELAY - defrost | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 20 | 99-2027 | SPRING - holddown | 1 | |
| 55-3010 | RIVET - spring | 2 | ||
| 21 | 55-2771 | CLIP - holddown | 2 | |
| 22 | 41-895 | RELAY - mini | 2 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 23 | 44-3521 | DIODE | 1 | |
| 24 | 44-7527 | BOARD - relay | 1 | |
| 25 | 99-9889 | SPACER - standoff (relay board) | 5 | |
| 55-2997 | SCREW - relay board | 10 | ||
| 55-2998 | LOCKWASHER (internal tooth) | 5 | ||
| 55-3014 | LOCKWASHER | 5 | ||
| 55-3013 | FLATWASHER | 5 | ||
| 26 | 55-3000 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 27 | NSS | TRAY - high voltage (before 2/94, see 112A13) | 1 | |
| NSS | TRAY - high voltage (2/94 & after, see 121C7) | 1 | ||
| 55-2977 | SCREW - tray | 4 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-1801 | NUT | 8 | ||
| 28 | 44-6857 | TRANSFORMER | 1 | |
| 55-1587 | SCREW - transformer | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 29 | NSS | COVER - assembly (see 115A12) | 1 | |
| 30 | 55-2114 | NUT | 2 | |
| 31 | 55-2959 | LOCKWASHER | 2 | |
| 32 | 55-2958 | FLATWASHER | 4 | |
| 33 | 55-3034 | WASHER - sealing | 2 | |
| 34 | 55-4954 | NUT | 2 | |
| 35 | 99-7058 | HINGE - control box | 2 | |
| 36 | 99-7059 | HINGE (w/ pin) | 2 | |
| 55-1587 | SCREW - hinge | 4 | ||
| 55-7317 | STUD - hinge | 4 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 8 |
