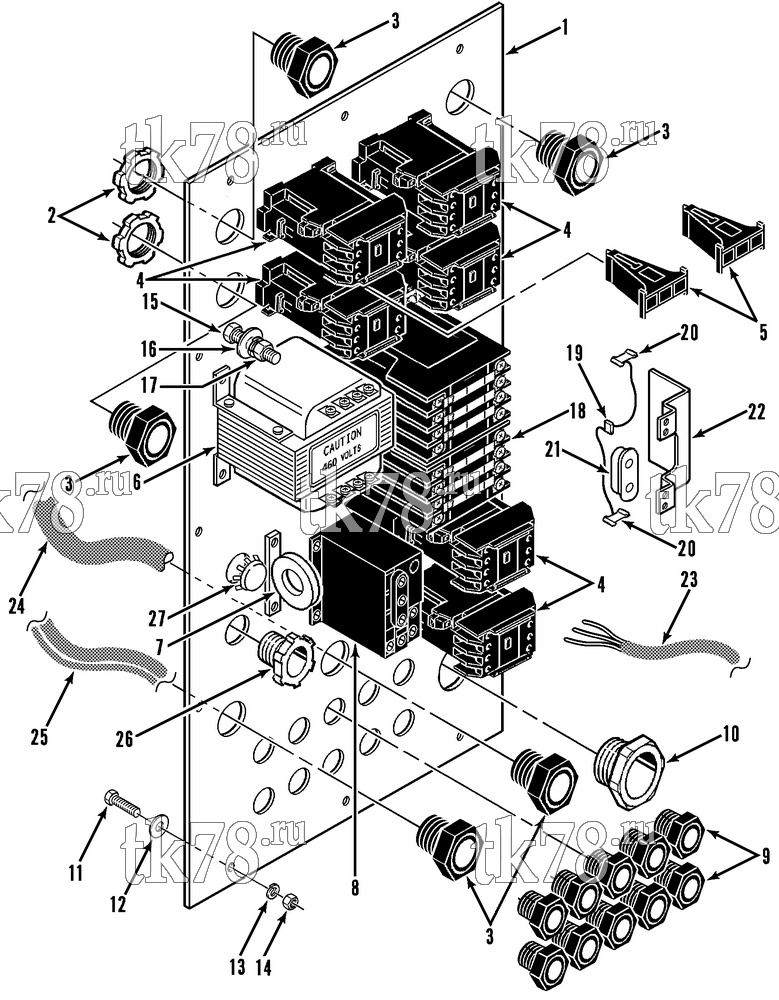

Установкa Thermo King схема HIGH VOLTAGE TRAY – 114G8
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3235 | PANEL - high voltage | 1 | |
| 2 | 55-5018 | LOCKNUT | 6 | |
| 3 | 55-2788 | FITTING - barb | 5 | |
| 4 | 44-8812 | CONTACTOR | 6 | |
| 55-3842 | SCREW - contactor | 12 | ||
| 55-2964 | LOCKWASHER | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 5 | 44-8813 | INTERLOCK - contactor | 2 | |
| 6 | 44-8811 | TRANSFORMER | 1 | |
| 44-3710 | JUMPER | 2 | ||
| 44-3311 | TERMINAL - connecting (splice) | 2 | ||
| 99-3407 | NAMEPLATE - Caution 230 Volts | 1 | ||
| 55-3842 | SCREW - transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 7 | 44-8832 | TRANSFORMER - current | 1 | |
| 55-3022 | SCREW - transformer | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 8 | 40-863 | KIT - overload replacement | 1 | |
| 55-3684 | SCREW - relay | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 9 | 55-5111 | CONNECTOR - cable | 10 | |
| 33-1435 | GROMMET - connector | 6 | ||
| 10 | 55-5112 | CONNECTOR - cable | 1 | |
| 11 | 55-1587 | SCREW - panel to box | 12 | |
| 12 | 55-3028 | WASHER - sealing | 12 | |
| 13 | 55-2086 | FLATWASHER | 12 | |
| 14 | 55-4953 | NUT (stop) | 12 | |
| 15 | 55-3000 | SCREW - ground | 3 | |
| 55-3008 | WASHER - sealing | 3 | ||
| 16 | 55-2996 | LOCKWASHER | 6 | |
| 55-2001 | FLATWASHER | 6 | ||
| 17 | 55-2965 | NUT (stop) | 6 | |
| 18 | 44-5753 | CONTACTOR - phase correction | 1 | |
| 44-5752 | CONTACTOR - only | 1 | ||
| 44-4889 | COIL - contactor | 1 | ||
| 40-333 | KIT - points | 1 | ||
| 19 | 44-6002 | BOARD - phase correction | 1 | |
| 99-5226 | BRACKET - board | 1 | ||
| 44-5149 | BOARD - circuit | 1 | ||
| 44-3832 | RECTIFIER | 2 | ||
| 20 | 44-4298 | RESISTOR | 2 | |
| 99-6511 | BRACKET - resistor | 2 | ||
| 21 | 44-4299 | CAPACITOR | 1 | |
| 22 | 99-5225 | BRACKET - capacitor | 1 | |
| 55-3842 | SCREW - contactor | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 23 | 44-8833 | HARNESS - high voltage tray to microprocessor | 1 | |
| 24 | 44-8844 | HARNESS - heater | 1 | |
| 11-3305 | SLEEVING - hose (25 ft, pvc) | A/R | ||
| 25 | 41-308 | HARNESS - main (assembly) | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 3 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 8 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 12 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 4 | ||
| 204-209 | LEAD - thermistor | 1 | ||
| 26 | 55-2789 | FITTING - barb | 1 | |
| 33-144 | O-RING | 1 | ||
| 27 | 99-2702 | PLUG - oil tight seal | 1 |
