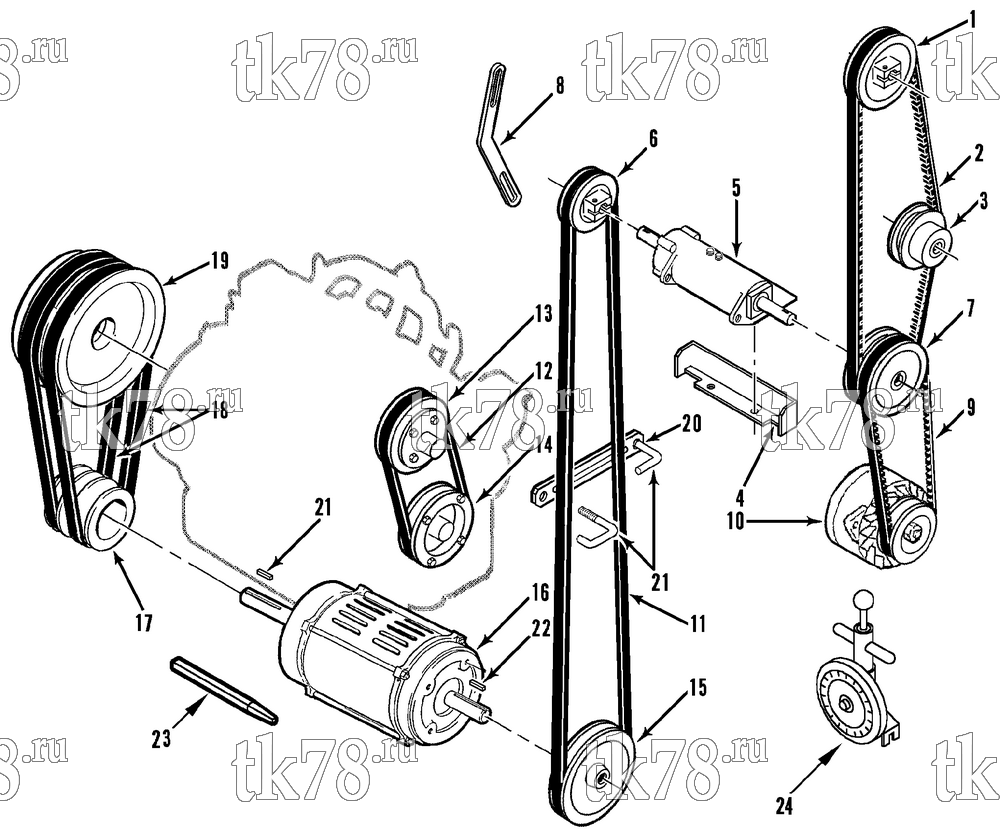

Установкa Thermo King схема BELT GROUP (50s) – 114E3
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2036 | PULLEY - fanshaft | 1 | |
| 55-6479 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-457 | KEY | 1 | ||
| 2 | 78-1047 | BELT - idler to fanshaft (before 11/92) | 1 | |
| 10-78-1047 | Ремень вентиляторов, SMX SR до 93г. | 6 530 ₽ |
|
|
| PP-78-1047 | Ремень вентиляторов, SMX SR до 93г. | 2 060 ₽ |
|
|
| 78-983 | BELT - idler to fanshaft (12/93 & after) | 1 | ||
|
10-78-983 | Ремень вентиляторов, SL-400/SMX после 93г. | 4 880 ₽ |
|
| PP-78-983 | Ремень вентиляторов, SL-400/SMX после 93г. | 3 590 ₽ |
|
|
| 3 | 77-2043 | PULLEY - idler (see 100B11) | 1 | |
| 91-4833 | PLATE - idler | 1 | ||
| 55-7571 | SCREW - plate | 1 | ||
| 55-5914 | FLATWASHER | 1 | ||
| 55-7569 | WASHER - special | 1 | ||
| 55-7570 | WASHER - special | 1 | ||
| 55-7003 | LOCKNUT | 1 | ||
| 4 | 91-4831 | ANGLE - jackshaft | 1 | |
| 55-4723 | SCREW - angle | 2 | ||
| 55-5006 | LOCKWASHER | 2 | ||
| 55-2769 | FLATWASHER | 2 | ||
| 91-4832 | NUTPLATE | 2 | ||
| 5 | 78-830 | JACKSHAFT (see 100F11) | 1 | |
| 55-4612 | SCREW - jackshaft | 2 | ||
| 55-7069 | FLATWASHER | 4 | ||
| 55-2292 | WASHER - special | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7006 | NUT | 2 | ||
| 6 | 77-2038 | PULLEY - motor to jackshaft (before 12/93) | 1 | |
| 77-2206 | PULLEY - engine to jackshaft (12/93 & after) | 1 | ||
| 7 | 77-2039 | PULLEY - jackshaft to fanshaft (before 12/93) | 1 | |
| 77-2134 | PULLEY - jackshaft to fanshaft (12/93 & after) | 1 | ||
| 55-457 | KEY | 2 | ||
| 55-6479 | SCREW - pulley | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 8 | 91-4834 | ARM - adjusting | 1 | |
| 55-6215 | SCREW - arm | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-2769 | WASHER - special | 2 | ||
| 9 | 78-679 | BELT - alternator (before 12/93) | 1 | |
| 10-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 880 ₽ |
|
|
|
PP-78-679 | Ремень генератора и водяной помпы, SL/SMX 30 / MD-II/KD-II | 1 120 ₽ |
|
| 78-336 | BELT - alternator (12/93 & after) | 1 | ||
| 10-78-336 | Ремень генератора, SL/SMX 50 после 93г. | 3 840 ₽ |
|
|
| PP-78-336 | Ремень генератора, SL/SMX 50 после 93г. | 980 ₽ |
|
|
| 10 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 11 | 78-826 | BELT - motor to jackshaft (before 12/93) | 1 | |
| 10-78-826 | Ремень электромотор - промвал, SMX 50 до 93г. | 11 500 ₽ |
|
|
| 78-928 | BELT - motor to jackshaft (12/93 & after) | 1 | ||
| 10-78-928 | Ремень электромотор - промвал, SL/SMX 50 после 93г. | 9 040 ₽ |
|
|
|
PP-78-928 | Ремень электромотор - промвал, SL/SMX 50 после 93г. | 3 610 ₽ |
|
| 12 | 78-668 | BELT - water pump | 1 | |
| 10-78-668 | Ремень водяной помпы, SB-III/SMX | 3 680 ₽ |
|
|
| PP-78-668 | Ремень водяной помпы, SB-III/SMX | 1 040 ₽ |
|
|
| 13 | 77-1595 | PULLEY - water pump (stationary) | 1 | |
| 77-1187 | PULLEY - water pump (sliding) | 1 | ||
| 77-1285 | SPACER - pulley (0.035 thk) | 5 | ||
| 77-2164 | SPACER - pulley (0.015 thk) | 1 | ||
| 55-544 | SCREW - pulley | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 14 | 77-1369 | PULLEY - crankshaft | 1 | |
| 77-1664 | SPACER - pulley | 1 | ||
| 55-5611 | SCREW - pulley | 4 | ||
| 55-5411 | LOCKWASHER | 4 | ||
| 15 | 98-3965 | PULLEY - fan drive | 1 | |
| 55-7022 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 16 | 104-735 | MOTOR (230-460/3/50-60) | 1 | |
| 17 | 77-2040 | PULLEY - clutch | 1 | |
| 55-7022 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 18 | 78-827 | BELT - clutch (before 12/93, matched pair) | 1 | |
| 10-78-827 | Ремень к-т, SMX до 12/93 | 11 300 ₽ |
|
|
| PP-78-827 | Ремень к-т, SMX до 12/93 | 11 300 ₽ |
|
|
| 78-617 | BELT - clutch (12/93 & after, matched pair) | 1 | ||
| 10-78-617 | Пара ремней двигатель - электромотор, SL/SMX | 8 690 ₽ |
|
|
| PP-78-617 | Пара ремней двигатель - электромотор, SL/SMX | 4 430 ₽ |
|
|
| 19 | 107-341 | CLUTCH (see 125E4) | 1 | |
|
10-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 100 300 ₽ |
|
| 55-3546 | SCREW - clutch to compressor | 1 | ||
| 55-9024 | KEY | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 20 | 91-4835 | GUIDE - belt | 1 | |
| 55-6215 | SCREW - guide | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-2507 | WASHER - special | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4621 | NUT | 2 | ||
| 21 | 91-4526 | ROD - belt guide | 1 | |
| 55-7006 | NUT | 2 | ||
| 22 | 55-7482 | KEY - motor | 2 | |
| 23 | 204-972 | TOOL - keyway alignment | 1 | |
| 24 | 204-427 | GAUGE - belt tension | 1 |
