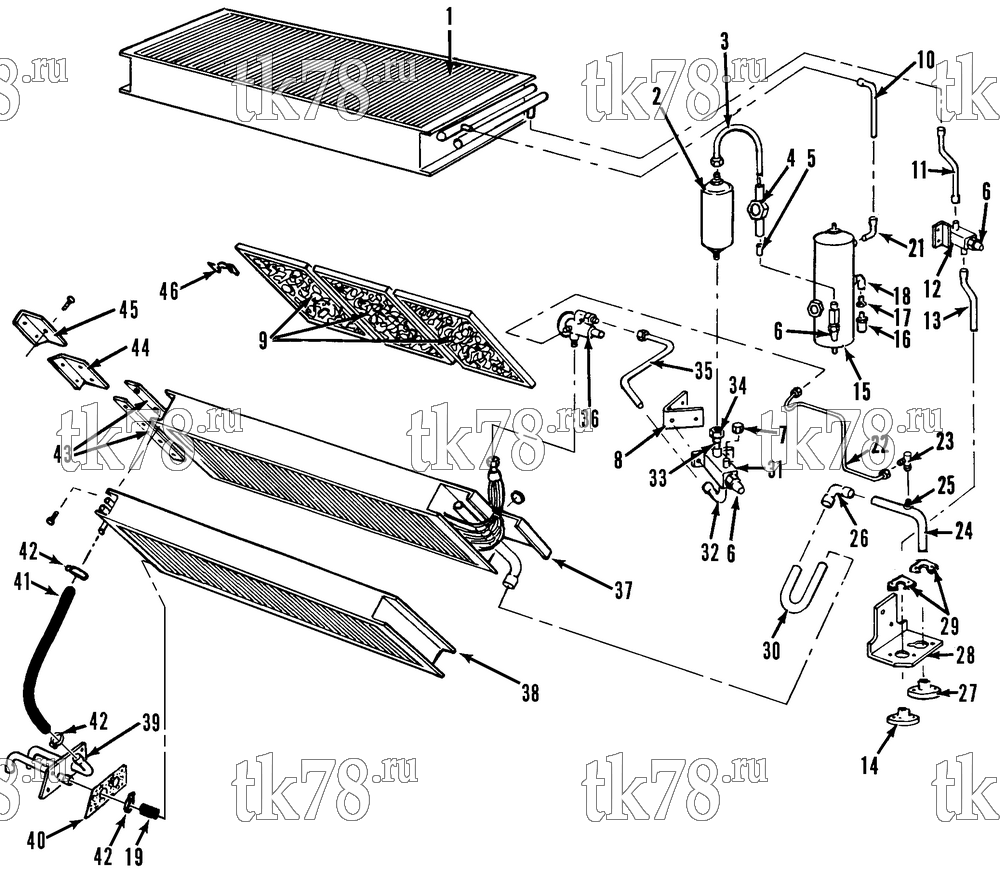

Установкa Thermo King схема REFRIGERATION COMPONENTS (M1, M2) – 114E13
Обновление от: 3/8/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-720 | COIL - condenser | 1 | |
| 55-3018 | SCREW - coil | 12 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 24 | ||
| 55-4560 | NUT (stop) | 2 | ||
| 55-2239 | CLAMP (0.375 dia) | 2 | ||
| 33-314 | GROMMET (5/16) | 1 | ||
| 2 | 66-4858 | DEHYDRATOR | 1 | |
| 3 | 66-4418 | TUBE - dehydrator liquid line | 1 | |
| 55-4737 | NUT | 1 | ||
| 66-4139 | FITTING - saddle | 1 | ||
| 4 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 5 | 66-4419 | TUBE - receiver to liquid indicator | 1 | |
| 6 | 66-2170 | CAP - valve (plastic) | 3 | |
| 7 | 55-1983 | CAP (1/4 flare) | 1 | |
| 8 | 99-7934 | BRACKET - shutoff valve | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 9 | 91-6289 | FILTER - air | 3 | |
| 10 | 66-4173 | TUBE - receiver to condenser coil | 1 | |
| 11 | 66-4176 | TUBE - coil to valve | 1 | |
| 12 | 66-4172 | VALVE - shutoff | 1 | |
| 13 | 66-4175 | TUBE - shutoff valve to flange | 1 | |
| 14 | 66-4197 | FLANGE | 1 | |
| 55-2747 | SCREW - flange | 2 | ||
| 33-2548 | GASKET | 1 | ||
| 15 | 67-762 | TANK - receiver (see 115G12) | 1 | |
| 16 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 66-2297 | ADAPTER - relief valve | 1 | |
| 18 | 55-636 | ELBOW | 1 | |
| 19 | 12-419 | HOSE (3/4 id x 25 ft, silicone) | A/R | |
| 33-2013 | GROMMET | 1 | ||
| 33-1611 | GROMMET | 1 | ||
| 55-570 | CLAMP (0.625 dia) | 1 | ||
| 20 | Not Used | |||
| 21 | 55-3441 | ELBOW | 1 | |
| 22 | 66-4179 | TUBE - equalizer | 1 | |
| 23 | 55-308 | ELBOW | 1 | |
| 24 | 66-4177 | TUBE - suction | 1 | |
| 25 | 66-3570 | FITTING - saddle | 1 | |
| 26 | 55-3682 | ELBOW | 1 | |
| 27 | 66-2848 | FLANGE - suction | 1 | |
| 55-2747 | SCREW - flange | 2 | ||
| 55-2166 | NUT | 2 | ||
| 28 | 99-7928 | BRACKET - flange | 1 | |
| 29 | 99-7929 | NUTPLATE - flange | 2 | |
| 30 | 66-4168 | TUBE - suction | 1 | |
| 31 | 66-2104 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-2969 | SCREW - valve | 2 | ||
| 32 | 55-3441 | ELBOW | 1 | |
| 33 | 66-4178 | TUBE | 1 | |
| 34 | 55-4737 | NUT - flare | 1 | |
| 35 | 66-4174 | TUBE - coupling & flare nut | 1 | |
| 66-4417 | TUBE - shutoff valve to expansion | 1 | ||
| 36 | 66-7393 | VALVE - expansion (R22) | 1 | |
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 55-5211 | U-BOLT - valve | 1 | ||
| 55-4560 | NUT - valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 37 | 67-721 | COIL - evaporator (incl 43) | 1 | |
| 33-315 | GROMMET (1-5/16 id) | 1 | ||
| 33-572 | GROMMET (3/4 id) | 1 | ||
| 38 | 67-722 | COIL - heater | 1 | |
| 99-7803 | NUTSTRIP - coil | 1 | ||
| 39 | 66-4198 | PLATE & TUBE | 1 | |
| 99-7876 | NAMEPLATE - Water Inlet | 1 | ||
| 40 | 99-7871 | GASKET - plate | 1 | |
| 41 | 11-5953 | HOSE | 1 | |
| 42 | 55-5400 | CLAMP - hose (1-1/2) | 8 | |
| 43 | 99-7803 | NUTSTRIP - coil | 4 | |
| 44 | 99-7862 | BRACKET - coil | 1 | |
| 33-1714 | GASKET | 1 | ||
| 45 | 99-7863 | BRACKET - coil | 1 | |
| 55-2969 | SCREW - bracket to frame | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-5738 | WASHER - sealing | 4 | ||
| 46 | 55-4422 | FASTENER - snap (filter) | 2 |
