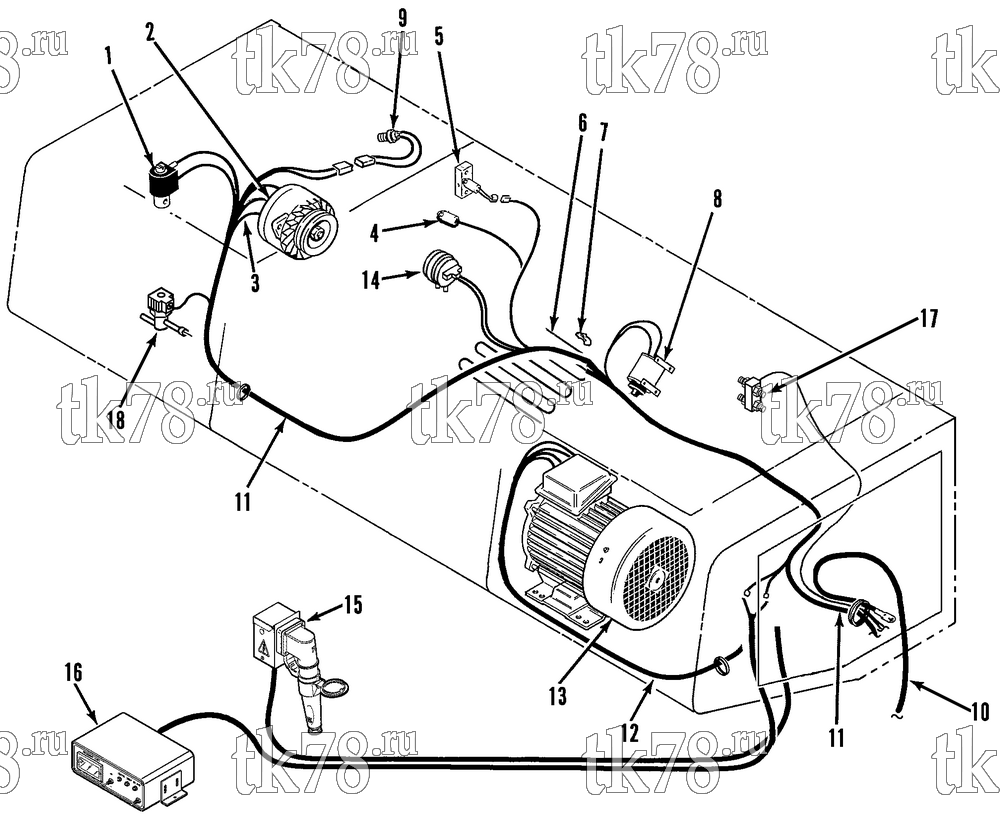

Установкa Thermo King схема ELECTRICAL COMPONENTS – 114D9
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-5908 | VALVE - pilot solenoid (complete) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 55-4523 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 2 | 41-2194 | ALTERNATOR (23 amp, model EA, see 78A8) | 1 | |
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 3 | 44-9107 | HARNESS - alternator | 1 | |
| 44-6959 | CONNECTOR - tower (3-pin) | 1 | ||
| 4 | 44-3155 | SWITCH - defrost termination | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 55-5639 | SCREW - switch | 2 | ||
| 5 | 44-6691 | SWITCH - temperature remote (heat option only) | 1 | |
| 55-3029 | SCREW - sensor | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | LOCKNUT | 2 | ||
| 6 | 45-1356 | HEATER (600W, optional) | 3 | |
| 7 | 91-240 | RETAINER | 12 | |
| 8 | 44-2823 | SOLENOID - damper (see 82A3) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 9 | 44-7992 | SWITCH - hpco (R12) | 1 | |
| 41-3846 | SWITCH - hpco (R502) | 1 | ||
| 10 | 41-296 | CABLE - battery (see 114D11) | 2 | |
| 11 | 44-9946 | HARNESS - main | 1 | |
| 44-5719 | CONNECTOR - relay board (8-pin, female) | 2 | ||
| 44-5814 | CONNECTOR - relay board, high voltage tray (4-pin, female) | 2 | ||
| 44-5622 | CONNECTOR - relay board (6-pin, female) | 1 | ||
| 44-5030 | CONNECTOR - switch panel (6-pin, female) | 1 | ||
| 44-5838 | CONNECTOR - heat solenoid (2-pin, female) | 1 | ||
| 44-5835 | CONNECTOR - hpco (2-pin, male) | 1 | ||
| 44-6381 | CONNECTOR - hourmeter/timer (1-pin, female) | 4 | ||
| 41-306 | CONNECTOR - common (4-pin, female) | 1 | ||
| 12 | 44-9177 | CABLE - motor | 1 | |
| 13 | 104-488 | MOTOR - (380/3/50, see 114D7) | 1 | |
| 14 | 66-6243 | SWITCH - air | 1 | |
| 55-4560 | NUT (hexstop) | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 91-3343 | BRACKET - switch | 1 | ||
| 99-1275 | PROBE - air switch | 1 | ||
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 99-1143 | HOSE (black) | 1 | ||
| 33-573 | GROMMET (5/16 id) | 1 | ||
| 15 | 99-9845 | BOX - power receptacle (see 107A2) | 1 | |
| 16 | 41-286 | BOX - cab control (see 114D3) | 1 | |
| 17 | 11-7870 | CONTROLLER - motor block (see 112D14) | 1 | |
| 18 | 61-283 | VALVE - solenoid (see 114D2) | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 60-188 | KIT - internal repair | 1 |
