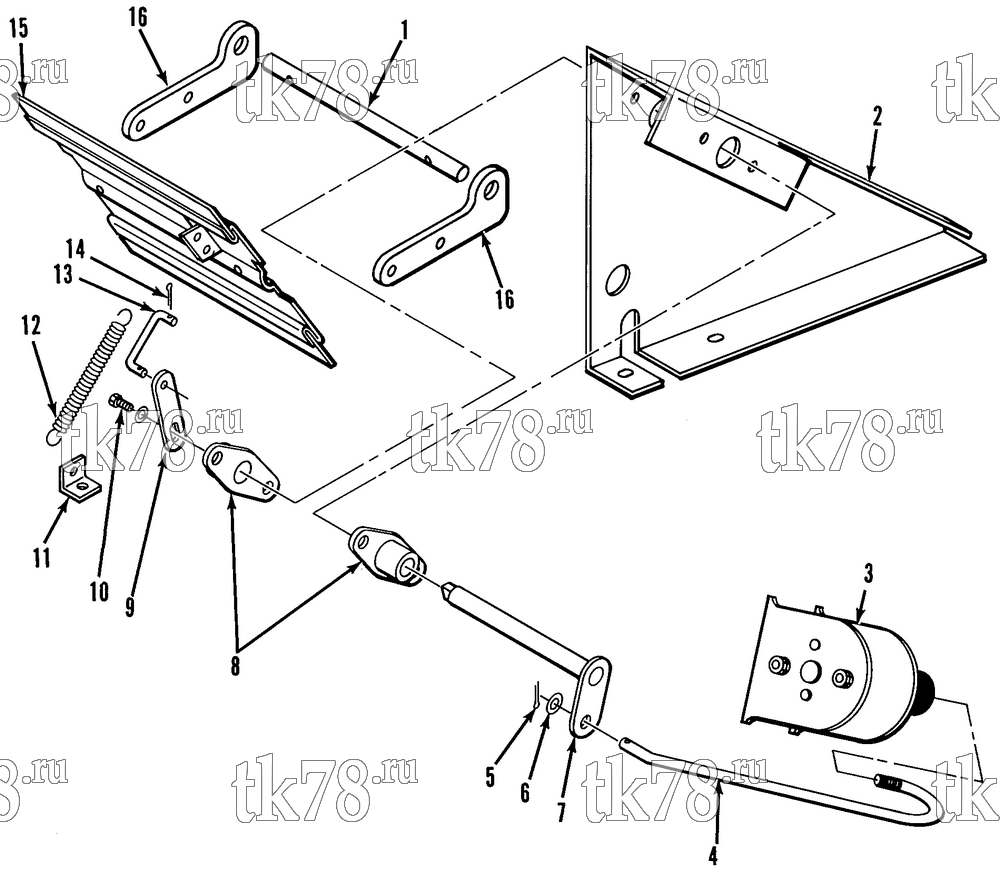

Установкa Thermo King схема EVAPORATOR DAMPER – 114D13
Обновление от: 10/6/93
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-249 | SHAFT - damper | 1 | |
| 55-2995 | SCREW - damper to shaft | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 2 | 91-4752 | BAFFLE - evaporator | 1 | |
| 55-1587 | SCREW - baffle | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 33-1408 | GROMMET (5/16 id) | 2 | ||
| 3 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 91-3095 | BOOT - cover | 1 | ||
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 55-2495 | RING - retaining (plunger) | 1 | ||
| 55-1587 | SCREW - solenoid | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 91-3337 | NUTSTRIP | 2 | ||
| 4 | 91-244 | ROD - damper | 1 | |
| 55-1533 | NUT - rod | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 5 | 55-605 | PIN - cotter | 1 | |
| 6 | 55-2001 | FLATWASHER | 1 | |
| 7 | 91-246 | SHAFT - damper | 1 | |
| 8 | 99-6565 | BEARING - damper | 2 | |
|
10-99-6565 | Демпфер | 1 040 ₽ |
|
| 55-2977 | SCREW - bearing | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 9 | 91-245 | ARM - damper | 1 | |
| 10 | 55-2995 | SCREW - arm | 1 | |
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 11 | 91-709 | ANGLE - damper | 1 | |
| 55-1587 | SCREW - angle | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 12 | 99-5804 | SPRING - damper | 1 | |
| 13 | 91-247 | ROD - damper | 1 | |
| 14 | 55-605 | PIN - cotter | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 15 | 91-248 | BLADE - damper | 1 | |
| 91-3599 | STOP - damper | 1 | ||
| 16 | 91-250 | BLOCK - shaft | 2 | |
| 55-2977 | SCREW - block | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 |
