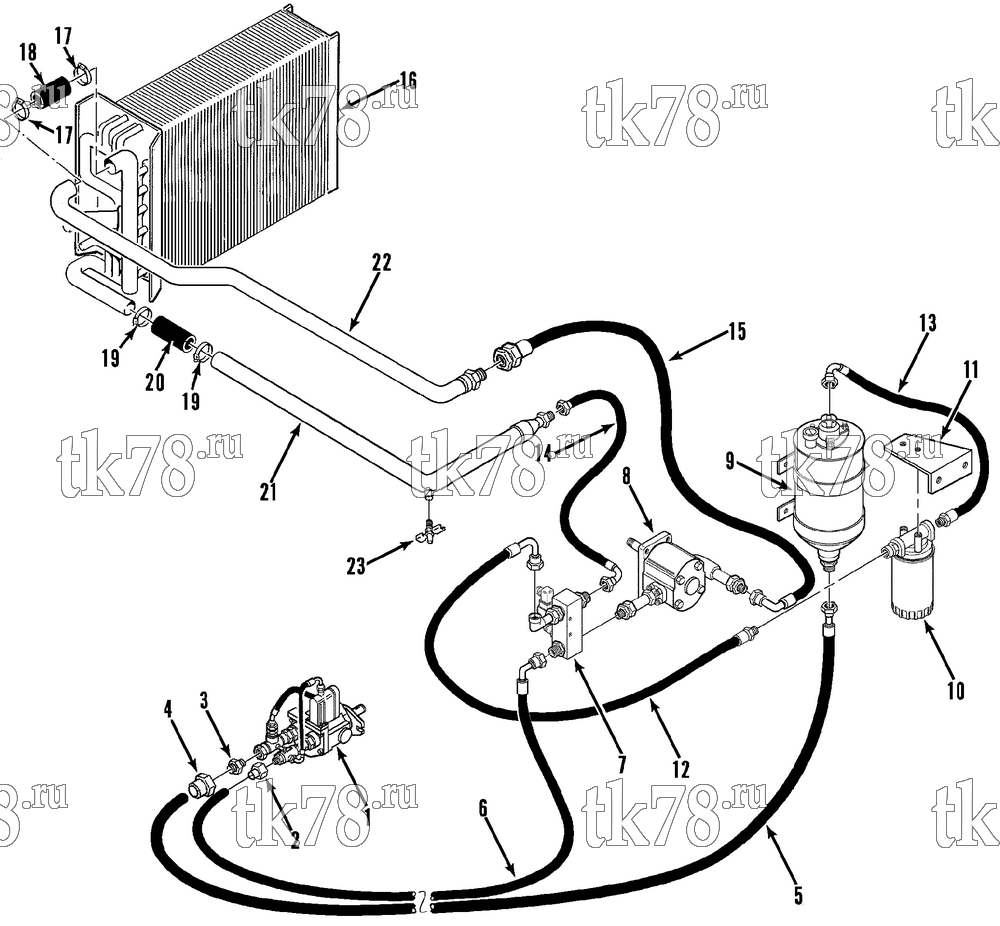

Установкa Thermo King схема HYDRAULIC OIL CIRCULATION GROUP – 114D1
Обновление от: 1/2/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-640 | PUMP - hydraulic | 1 | |
| 2 | 11-7877 | UNION (female, 1/2 bsp) | 1 | |
| 11-7880 | ELBOW - female (1/2 bsp) | 1 | ||
| 3 | 11-7887 | ADAPTER (male/female, 1 bsp) | 1 | |
| 4 | 11-7878 | UNION (female, 1/2 bsp) | 1 | |
| 11-7881 | ELBOW - female (1 bsp, 90) | 1 | ||
| 5 | 11-7882 | HOSE - reservoir to pump | 1 | |
| 6 | 11-7883 | HOSE - pump to control block | 1 | |
| 7 | 11-8453 | CONTROLLER (see 112D14) | 1 | |
| 8 | 11-7874 | MOTOR - hydraulic (see 112D14) | 1 | |
| 9 | 11-7992 | RESERVOIR (see 112D14) | 1 | |
| 10 | 11-7871 | FILTER - return line | 1 | |
| 11-7869 | ELEMENT - filter | 1 | ||
| 11-7888 | ADAPTER - union (3/4 bsp male, 1/2 bsp female) | 2 | ||
| 11-7879 | COUPLING - male stud (1/2 bsp, M22 thd) | 1 | ||
| 55-5022 | SCREW - filter | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 11 | 91-5009 | BRACKET - filter | 1 | |
| 55-141 | SCREW - bracket | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 12 | 11-7884 | HOSE - control block to filter inlet | 1 | |
| 13 | 11-7885 | HOSE - filter to hydraulic oil tank | 1 | |
| 14 | 11-7950 | HOSE - condenser coil to control block | 1 | |
| 15 | 11-7951 | HOSE - hydraulic motor to condenser coil | 1 | |
| 16 | 67-1333 | COIL - condenser/radiator | 1 | |
| 17 | 55-5002 | CLAMP - hose | 2 | |
| 18 | 11-7948 | HOSE - hydraulic to condenser | 1 | |
| 55-7658 | UNION - condenser coil inlet | 1 | ||
| 19 | 55-558 | CLAMP - hose | 2 | |
| 20 | 11-7949 | HOSE - hydraulic from condenser | 1 | |
| 21 | 11-7961 | TUBE - condenser outlet | 1 | |
| 22 | 66-7087 | TUBE - condenser inlet | 1 | |
| 23 | 55-5094 | DRAIN COCK | 1 |
