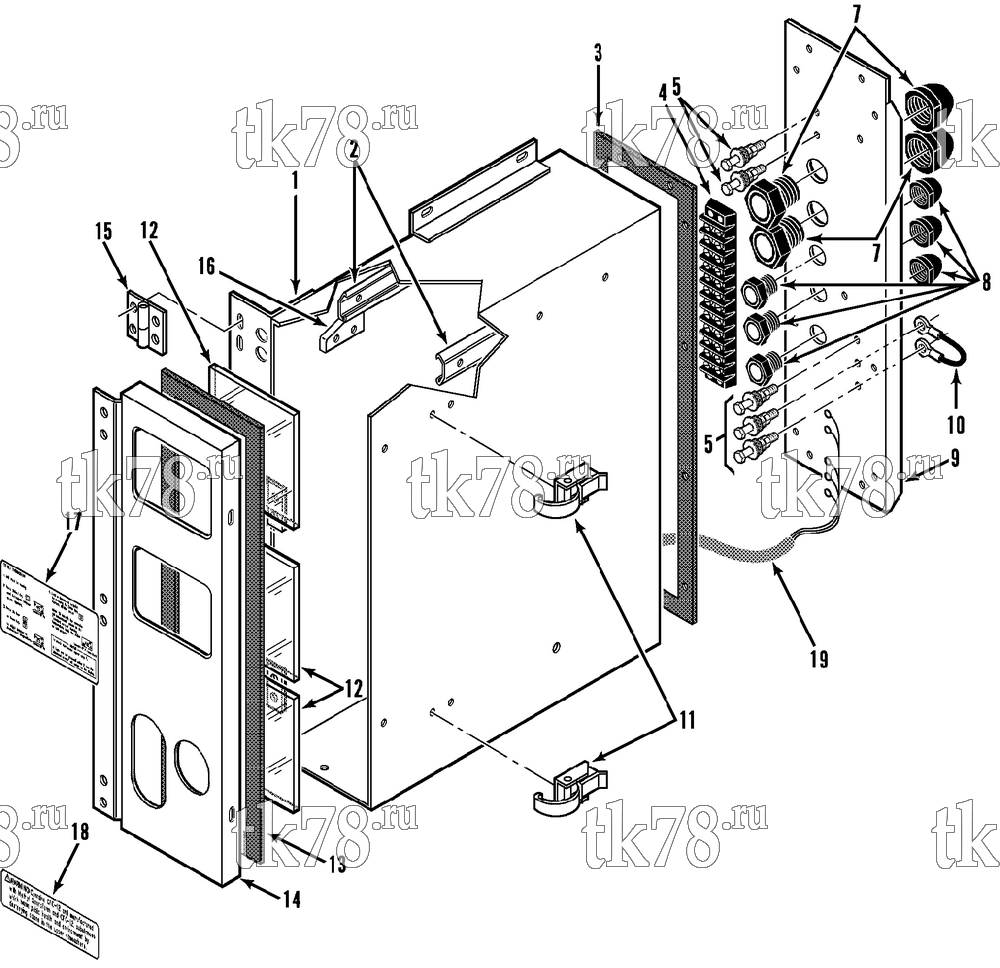

Установкa Thermo King схема CONTROL BOX GROUP (w/ TG V DOMESTIC) – 114B2
Обновление от: 3/4/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5101 | BOX - control | 1 | |
| 55-2969 | SCREW - box | 5 | ||
| 55-2958 | FLATWASHER | 5 | ||
| 55-4954 | NUT | 5 | ||
| 2 | 91-5807 | SLIDE - chassis | 2 | |
| 55-5722 | SCREW - slide | 6 | ||
| 55-4223 | NUT | 6 | ||
| 3 | 33-2117 | GASKET - rear cover | 1 | |
| 4 | 44-2728 | BOARD - terminal | 1 | |
| 91-2521 | MARKSTRIP | 1 | ||
| 5 | 55-2991 | SCREW - ground | 6 | |
| 55-3006 | WASHER - shoulder (fiber) | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 9 | ||
| 55-2965 | NUT (hex) | 9 | ||
| 6 | 55-5112 | CONNECTOR - liquid tite (evaporator main harness) | 1 | |
| 55-6765 | PLUG - button | A/R | ||
| 7 | 55-5112 | CONNECTOR - liquid tite | 2 | |
| 8 | 55-5900 | CONNECTOR - liquid tite | 3 | |
| 9 | 91-2520 | COVER - rear box | 1 | |
| 91-2522 | NAMEPLATE - Fuel pump, 2X, Battery + | 1 | ||
| 55-3015 | SCREW - cover | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 10 | 44-8244 | FUSE LINK | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 11 | 99-6942 | LATCH - assembly | 2 | |
| 55-4222 | SCREW - latch | 4 | ||
| 55-5754 | NUT | 4 | ||
| 12 | 91-4304 | WINDOW | 1 | |
| 13 | 99-2996 | STRIP - gasket (50 ft) | A/R | |
| 14 | 91-4303 | COVER - control box | 1 | |
| 15 | 99-7137 | HINGE - cover (w/o pin) | 3 | |
| 99-7139 | HINGE - cover (w/ pin) | 3 | ||
| 99-6268 | NUTSTRIP | 3 | ||
| 55-5046 | SCREW - hinge (truss head) | 6 | ||
| 55-4360 | SCREW - hinge (socket head, 3/4 lg) | 4 | ||
| 55-7481 | SCREW - hinge (socket head, 1 lg) | 4 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-2993 | LOCKWASHER | 6 | ||
| 55-4953 | NUT | 6 | ||
| 16 | 91-2703 | GUIDE - chassis slide | 2 | |
| 55-5722 | SCREW - guide | 4 | ||
| 55-4223 | NUT | 4 | ||
| 17 | 91-4320 | NAMEPLATE - TG V unit | 1 | |
| 18 | 91-5252 | NAMEPLATE - Warning, CFC-115 | 1 | |
| 19 | 44-9734 | HARNESS - terminal board to circuit breaker | 1 |
