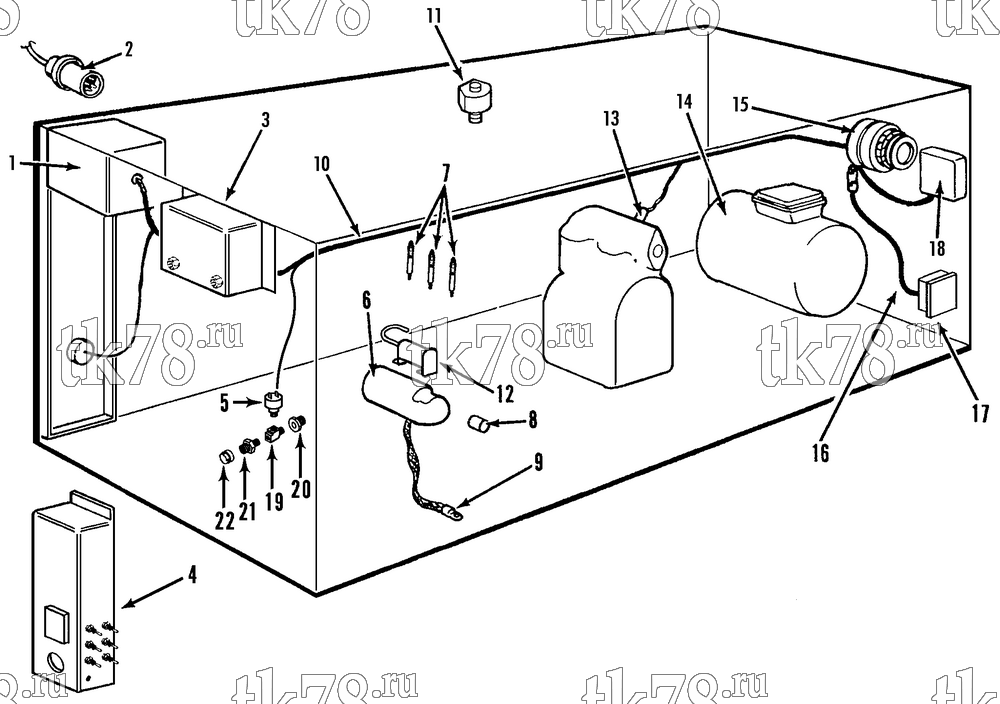

Установкa Thermo King схема ELECTRICAL COMPONENTS – 113G11
Обновление от: 1/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | N/A | BOX - high voltage | 1 | |
| 55-1587 | SCREW - box | 7 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 55-4953 | NUT | 7 | ||
| 2 | 44-4695 | RECEPTACLE - power (230V, SUMD) | 1 | |
| 44-4700 | RECEPTACLE - power (380V, UMD) | 1 | ||
| 3 | 91-1901 | BOX - solenoid (see 108F13) | 1 | |
| 4 | N/A | BOX - control (see 92G1 or 113D13) | 1 | |
| 5 | 41-7065 | SWITCH - engine low oil pressure | 1 | |
| 6 | 45-1718 | STARTER (see 132A8) | 1 | |
|
10-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 12 860 ₽ |
|
| PP-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 9 310 ₽ |
|
|
| 845-2326 | STARTER (remanufactured) | 1 | ||
| 45-2326 | STARTER (standard life plus) | 1 | ||
| 7 | 44-4728 | GLOW PLUG | 3 | |
| 8 | 44-3018 | SWITCH - high water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 9 | 44-9861 | CABLE - battery | 1 | |
| 55-3048 | SCREW - cable to engine | 1 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-3300 | NUT (hexjam) | 1 | ||
| 10 | 44-8581 | HARNESS - main | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 2 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 11 | 66-4929 | VALVE - pilot solenoid | 1 | |
| 44-7753 | COIL - valve | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 12 | 44-8586 | SOLENOID - throttle (see 92E3) | 1 | |
| 13 | 44-5833 | SWITCH - hpco (R12) | 1 | |
| 44-5834 | SWITCH - hpco (R12) | 1 | ||
| 44-6510 | SWITCH - hpco (R69L) | 1 | ||
| 44-6265 | SWITCH - only (R69L) | 1 | ||
| 44-5835 | CONNECTOR (2-pin, male) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 14 | 104-537 | MOTOR (4hp, before 1/92) | 1 | |
| 77-1192 | BEARING - motor | 2 | ||
| 104-595 | MOTOR (4hp, after12/91) | 1 | ||
| 77-2139 | BEARING - motor | 2 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 99-3195 | NAMEPLATE - 208/230 Volt | 1 | ||
| 99-6907 | NAMEPLATE - 380/460 Volt | 1 | ||
| 55-2757 | FITTING - barb | 1 | ||
| 55-2635 | NUT | 2 | ||
| 15 | 44-6266 | ALTERNATOR (12V, 35 amp, see 92G2) | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 55-3378 | SPACER - alternator | 2 | ||
| 55-2750 | SCREW - spacer | 2 | ||
| 44-4983 | RESISTOR (2.5 ohm, 15W) | 1 | ||
| 16 | 44-9108 | HARNESS - alternator to regulator | 1 | |
| 17 | 44-5013 | REGULATOR - voltage | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 55-2991 | SCREW - regulator | 3 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT (hex) | 3 | ||
| 18 | 44-5978 | BOX - junction (see 56C3) | 1 | |
| 55-2977 | SCREW - box | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-2269 | SCREW - cover | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 19 | 55-665 | TEE - oil switch | 1 | |
| 20 | 11-4984 | ADAPTER - to engine | 1 | |
| 21 | 55-459 | COUPLING (fl mpt) | 1 | |
| 22 | 55-1983 | CAP - coupling | 1 | |
| 203-393 | SEALER - thread | A/R |
