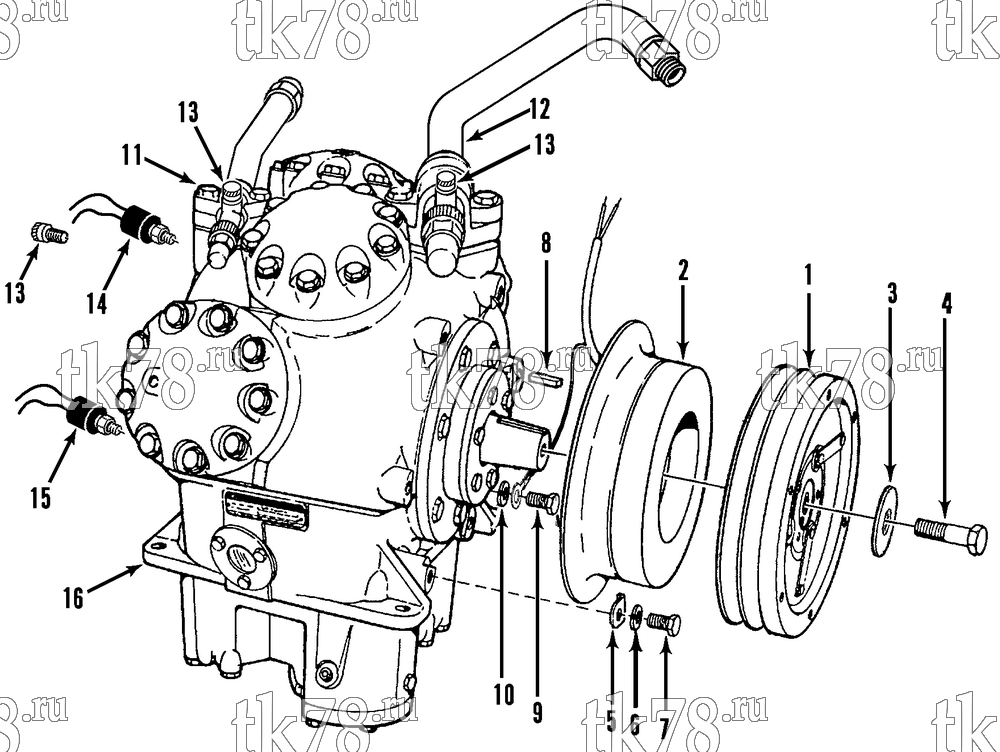

Установкa Thermo King схема COMPRESSOR GROUP (9198C35G01, KIT 714207) – 113E4
Обновление от: 3/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 307-417 | PULLEY - assembly (2 groove, 3V) | 1 | |
| 55-1842 | SCREW - set | 1 | ||
| 2 | 304-272 | COIL - clutch (24VDC) | 1 | |
| 3 | 305-599 | WASHER - notched | 1 | |
| 4 | 305-988 | SCREW (hh) | 1 | |
| 5 | 309-671 | RETAINER - clutch coil | 6 | |
| 6 | 55-375 | LOCKWASHER | 6 | |
| 7 | 55-329 | SCREW - coil | 6 | |
| 8 | 305-1458 | KEY | 1 | |
| 9 | 55-529 | SCREW | 1 | |
| 10 | 305-700 | LOCKWASHER | 1 | |
| 11 | 66-7009 | VALVE & TUBE | 1 | |
| 302-101 | VALVE - service | 1 | ||
| 66-7664 | CAP - valve (brass) | 1 | ||
| 33-2648 | O-RING | 1 | ||
| 66-7010 | TUBE - discharge | 1 | ||
| 305-111 | ADAPTER | 1 | ||
| 303-245 | O-RING | 1 | ||
| 304-672 | CAP - adapter | 1 | ||
| 55-3672 | SCREW | 2 | ||
| 33-2805 | GASKET - discharge valve | 1 | ||
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 12 | 66-7007 | VALVE & TUBE - suction (complete) | 1 | |
| 66-7008 | TUBE | 1 | ||
| 306-804 | VALVE | 1 | ||
| 66-7665 | CAP - valve (steel) | 1 | ||
| 33-2649 | O-RING | 1 | ||
| 305-109 | ADAPTER | 1 | ||
| 303-289 | O-RING | 1 | ||
| 305-783 | CAP | 1 | ||
| 55-4794 | SCREW | 2 | ||
| 303-700 | GASKET - suction service valve | 1 | ||
| 13 | 11-2886 | VALVE (see 119B13) | 3 | |
| 14 | 304-746 | SWITCH - hpco | 1 | |
| 15 | 304-774 | SWITCH - lpco | 1 | |
| 16 | 302-138 | COMPRESSOR (4GB) | 1 |
