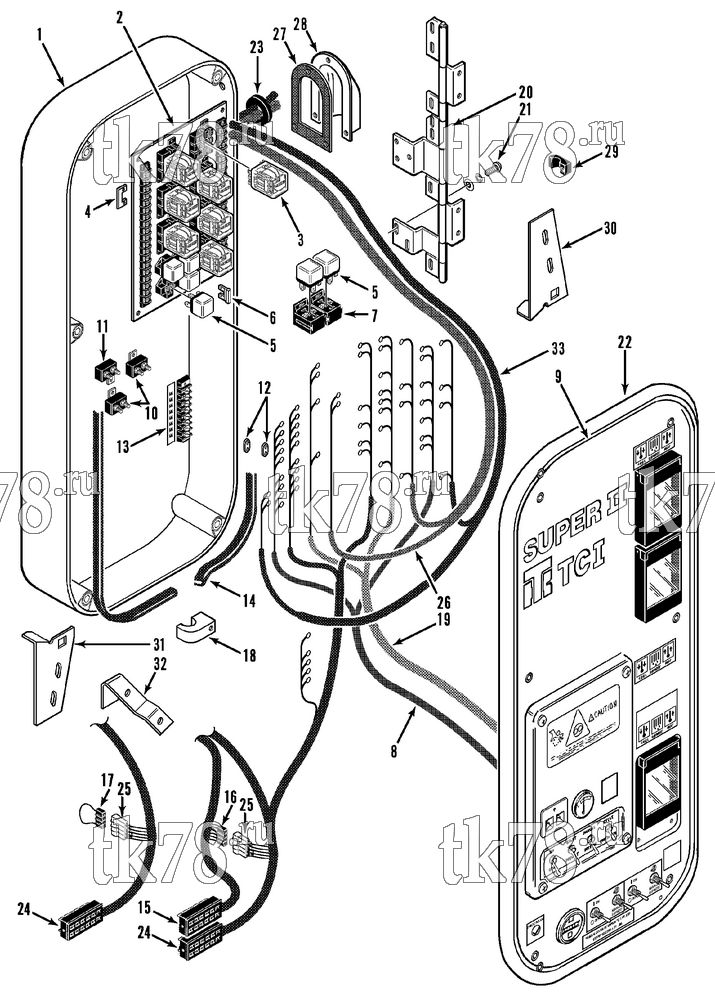

Установкa Thermo King схема CONTROL BOX ASSEMBLY (TCI 3) – 112B3
Обновление от: 3/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4384 | BOX - control | 1 | |
| 2 | 41-142 | BOARD - printed circuit (multi-temperature) | 1 | |
| 55-2997 | SCREW - board to spacer | 6 | ||
| 55-2998 | LOCKWASHER | 6 | ||
| 91-4925 | NAMEPLATE - low voltage (control box) | 1 | ||
| 99-9889 | SPACER - standoff (board) | 6 | ||
| 55-3256 | SCREW - board | 6 | ||
| 55-3800 | LOCKWASHER | 6 | ||
| 3 | 44-3186 | RELAY (3pdt) | 7 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 99-2027 | SPRING - holddown (relay) | 7 | ||
| 55-2270 | RIVET - holddown | 14 | ||
| 55-2771 | CLAMP - holddown | 7 | ||
| 4 | 44-6933 | JUMPER | 7 | |
| 5 | 41-895 | RELAY - mini | 6 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 6 | 44-9344 | FUSE (15 amp) | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 7 | 44-5537 | SOCKET - relay | 2 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 8 | 41-108 | HARNESS - board to door (evaporator center) | 1 | |
| 9 | 91-3796 | NAMEPLATE - Super-II TCI | 1 | |
| 10 | 44-6146 | BREAKER - circuit (manual reset, 40 amp) | 2 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 11 | 44-5808 | BREAKER - circuit (manual reset, 12 amp) | 1 | |
| 55-3099 | SCREW - circuit breaker | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 12 | 44-1458 | JUMPER | 3 | |
| 13 | 91-3488 | NAMEPLATE | 1 | |
| 14 | 33-2384 | GASKET - cover | 1 | |
| 15 | 41-110 | HARNESS - Cycle Sentry (see 107D7) | 1 | |
| 44-5310 | CONNECTOR (15-pin) | 1 | ||
| 44-5220 | COVER - connector | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 16 | 44-5719 | CONNECTOR - main harness (8-pin) | 1 | |
| 17 | 44-7625 | CONNECTOR - jumper (units w/o Cycle Sentry) | 1 | |
| 18 | 91-1375 | CLAMP - harness | 3 | |
| 55-2977 | SCREW - clamp (1 in lg) | 1 | ||
| 55-3121 | SCREW - clamp (1-1/2 in lg) | 1 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 19 | 41-109 | HARNESS - board to door (evaporator rear) | 1 | |
| 20 | 91-3597 | HINGE - control box | 1 | |
| 21 | 55-1587 | SCREW - hinge | 11 | |
| 55-1800 | LOCKWASHER | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 22 | N/A | PANEL - control box (see 112B2) | 1 | |
| 23 | 33-2235 | GROMMET - harness | 1 | |
| 24 | 41-1777 | HARNESS - main | 1 | |
| 25 | 44-5718 | CONNECTOR - Cycle Sentry harness (8-pin) | 1 | |
| 26 | 41-122 | HARNESS - evaporator (rear) | 1 | |
| 27 | 33-2429 | GASKET - cover | 1 | |
| 28 | 91-4503 | COVER - wire | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 29 | 91-3886 | CLAMP - harness | 1 | |
| 30 | 91-1970 | ANGLE - support (bottom) | 1 | |
| 31 | 91-1971 | ANGLE - support (top) | 1 | |
| 55-2957 | SCREW - angle | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 32 | 91-1769 | STOP - control box | 1 | |
| 55-1587 | SCREW - stop | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 33 | 41-121 | HARNESS - evaporator (center) | 1 |
