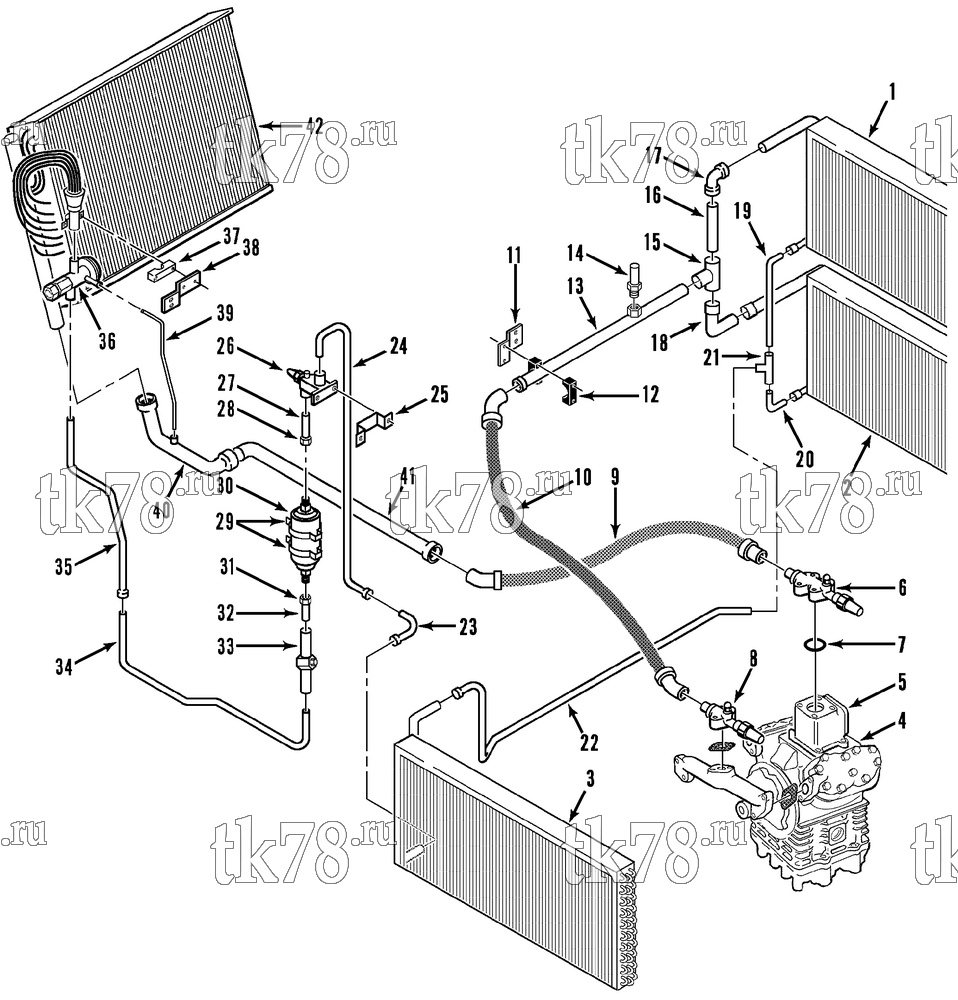

Установкa Thermo King схема REFRIGERATION COMPONENTS (w/o RECEIVER TANK) – 111G9
Обновление от: 4/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-919 | COIL - condenser (top, see 91E9) | 1 | |
| 2 | 67-920 | COIL - condenser (bottom, see 91E9) | 1 | |
| 3 | 67-921 | COIL - condenser (subcool, see 91E9) | 1 | |
| 4 | N/A | COMPRESSOR - X430 (w/ unloader, see 72A12) | 1 | |
| 5 | 66-3558 | ADAPTER - suction valve (w/ 4 bolts) | 1 | |
| 22-835 | ADAPTER - suction valve (w/ 2 bolts) | 1 | ||
| 6 | 66-5318 | VALVE - suction (w/ 2 bolts) | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 7 | 33-920 | O-RING | 1 | |
| 8 | 66-2140 | VALVE - discharge (see 91E4) | 1 | |
| 9 | 66-6660 | HOSE - suction | 1 | |
| 10 | 66-6947 | HOSE - discharge | 1 | |
| 11 | 91-1748 | CLAMP - tube | 1 | |
| 12 | 55-6020 | CLAMP - discharge tube | 1 | |
| 13 | 66-6949 | TUBE - discharge | 1 | |
| 66-5399 | FITTING - saddle | 1 | ||
| 14 | 66-5398 | VALVE - pressure relief | 1 | |
| 15 | 55-6508 | TEE | 1 | |
| 16 | 66-5417 | TUBE - condenser inlet | 1 | |
| 17 | 66-637 | ELBOW | 1 | |
| 18 | 55-1122 | ELBOW | 1 | |
| 19 | 66-5403 | TUBE - condenser outlet | 1 | |
| 20 | 66-5402 | TUBE - condenser inlet | 1 | |
| 21 | 55-904 | TEE | 1 | |
| 22 | 66-6655 | TUBE - subcool inlet | 1 | |
| 23 | 66-6952 | TUBE - subcool outlet | 1 | |
| 24 | 66-6950 | TUBE - subcool to valve | 1 | |
| 25 | 91-1502 | BRACKET - shutoff valve | 1 | |
| 55-5639 | SCREW - bracket | 2 | ||
| 26 | 66-2104 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 27 | 66-6951 | TUBE - valve to dehydrator | 1 | |
| 28 | 55-6356 | SHOULDER (o-ring seal) | 1 | |
| 55-6396 | NUT - shoulder | 1 | ||
| 29 | 55-2192 | HANGER - dehydrator | 2 | |
| 30 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 33-566 | O-RING (1/2 id) | 1 | ||
| 33-2115 | O-RING (5/8 id) | 1 | ||
| 55-6210 | SCREW - dehydrator | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4118 | NUT (hexstop) | 2 | ||
| 31 | 55-6837 | SHOULDER (o-ring seal) | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 32 | 66-6954 | TUBE - dehydrator to liquid indicator | 1 | |
| 33 | 66-1188 | INDICATOR - liquid | 1 | |
| 34 | 66-6656 | TUBE - indicator to tube | 1 | |
| 35 | 66-6953 | TUBE - tube to expansion valve | 1 | |
| 36 | 66-6948 | VALVE - expansion | 1 | |
| 66-4213 | ELEMENT - power | 1 | ||
| 37 | 91-2473 | CLAMP - valve | 1 | |
| 38 | 91-4908 | BRACKET - valve | 1 | |
| 39 | 66-6658 | TUBE - equalizer | 1 | |
| 40 | 66-6955 | TUBE - suction | 1 | |
| 66-5752 | FITTING - equalizer | 1 | ||
| 41 | 66-6659 | TUBE - suction bulkhead | 1 | |
| 42 | 67-1144 | COIL - evaporator | 1 | |
| 55-1587 | SCREW - coil | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-5223 | WASHER - spacer | 10 | ||
| 55-4974 | NUT - captive | 10 |
