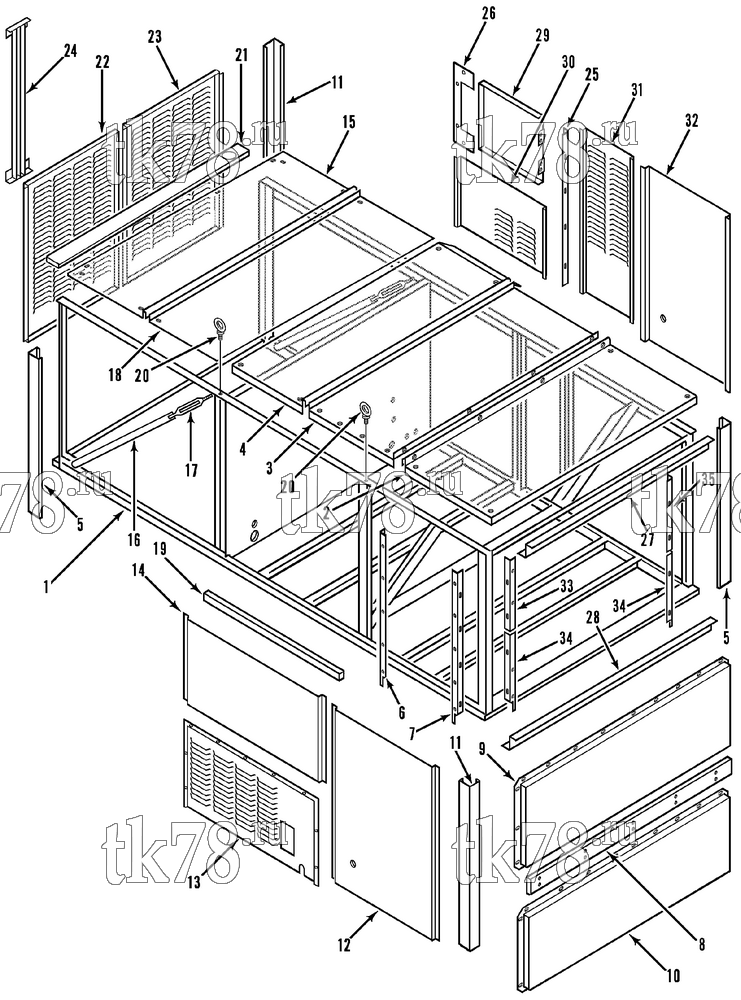

Установкa Thermo King схема FRAME, PANELS, DOORS (MODIFICATIONS) – 111G7
Обновление от: 4/12/93
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3640 | FRAME - unit (before Serial No. 188) | 1 | |
| 98-4380 | FRAME - unit (after Serial No. 188) | 1 | ||
| 55-5691 | INSERT - threaded (1/4-20) | 165 | ||
| 55-5437 | INSERT - threaded (5/16-18) | 16 | ||
| 55-6610 | INSERT - threaded (3/8-16) | 16 | ||
| 2 | 98-3675 | COVER - evaporator section | 1 | |
| 3 | 98-3674 | COVER - filter section | 1 | |
| 4 | 98-4369 | COVER - furnace section | 1 | |
| 5 | 98-3687 | CAP - corner | 2 | |
| 6 | 91-4868 | ANGLE - panel | 2 | |
| 55-5691 | INSERT - threaded | 10 | ||
| 7 | 91-4869 | ANGLE - panel | 2 | |
| 55-5691 | INSERT - threaded | 10 | ||
| 8 | 98-4372 | CHANNEL - panel | 1 | |
| 9 | 98-4373 | PANEL - top | 1 | |
| 10 | 98-3813 | PANEL - bottom | 1 | |
| 11 | 98-3686 | CAP - corner | 2 | |
| 12 | 98-3679 | PANEL - side | 1 | |
| 13 | 98-3677 | PANEL - heater (bottom) | 1 | |
| 14 | 98-3678 | PANEL - heater (top) | 1 | |
| 55-1587 | SCREW - panel | 92 | ||
| 55-1800 | LOCKWASHER | 92 | ||
| 55-2086 | FLATWASHER | 92 | ||
| 15 | 98-4370 | PANEL - power pack cover | 1 | |
| 16 | 91-1390 | STRAP - turnbuckle | 2 | |
| 17 | 91-1863 | BUCKLE - turn | 2 | |
| 18 | 98-4371 | PANEL - power pack cover | 1 | |
| 19 | 91-1506 | MOUNT - furnace panel | 1 | |
| 20 | 91-1386 | BOLT - eye | 4 | |
| 55-7572 | WASHER - sealing | 4 | ||
| 21 | 98-3646 | BRACE - engine doors | 1 | |
| 22 | 98-4104 | DOOR - engine (right) | 1 | |
| 91-1872 | HINGE - door | 1 | ||
| 55-3099 | SCREW - hinge | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT (hexstop) | 6 | ||
| 23 | 98-4105 | DOOR - engine (left) | 1 | |
| 91-1872 | HINGE - door | 1 | ||
| 55-3099 | SCREW - hinge | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT (hexstop) | 6 | ||
| 24 | 98-3689 | POST - engine doors | 1 | |
| 25 | 91-1508 | ANGLE - panel | 1 | |
| 26 | 91-4885 | PANEL - control box | 1 | |
| 27 | 98-4377 | ANGLE - filter rack (top) | 1 | |
| 28 | 91-4872 | ANGLE - return seal | 1 | |
| 29 | 91-1534 | COVER - control box | 1 | |
| 30 | 98-3685 | PANEL - blower motor | 1 | |
| 31 | 98-3684 | PANEL - side | 1 | |
| 32 | 98-3680 | PANEL - side | 1 | |
| 33 | 91-2184 | ANGLE - panel | 1 | |
| 34 | 91-2191 | ANGLE - panel | 2 | |
| 35 | 91-2177 | ANGLE - panel | 1 |
