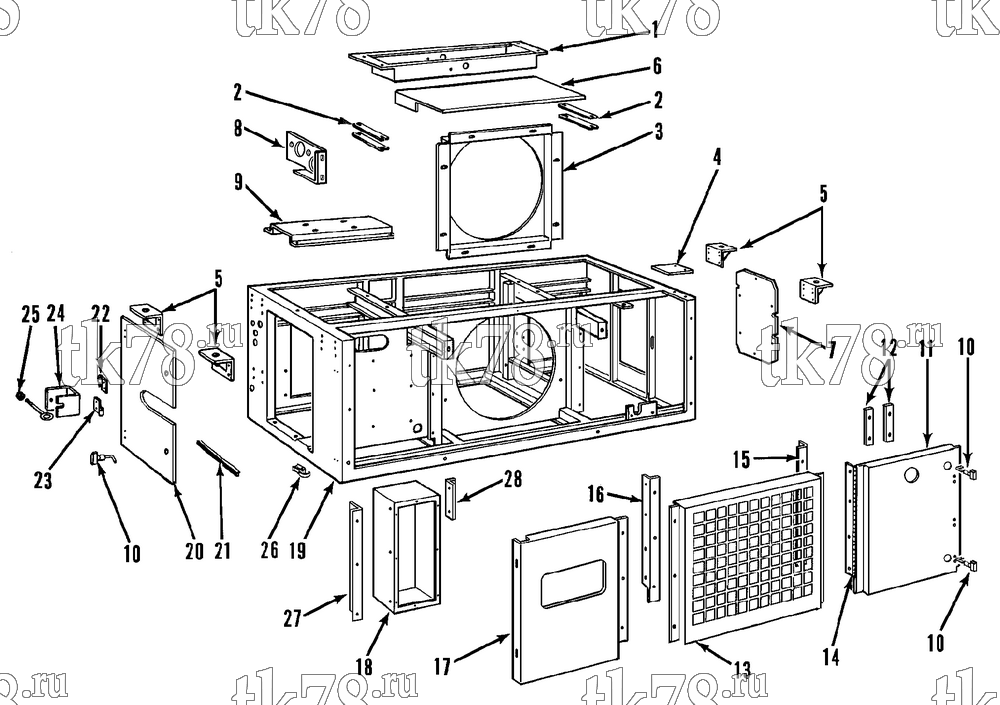

Установкa Thermo King схема STRUCTURAL COMPONENTS - CONDENSER – 110B5
Обновление от: 1/24/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2554 | TRAY - motor | 1 | |
| 55-2683 | SCREW - tray | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4931 | WASHER - spacer | 4 | ||
| 55-4955 | NUT | 4 | ||
| 2 | 99-7403 | SHIM - tray | A/R | |
| 3 | 98-2551 | ORIFICE - condenser fan | 1 | |
| 55-101 | SCREW - orifice | 8 | ||
| 55-2978 | WASHER - dome | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 99-3064 | NAMEPLATE - Caution, Fan | 1 | ||
| 4 | 99-7386 | BRACKET - air baffle | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 55-5292 | NUT | 2 | ||
| 5 | 91-8766 | BRACKET - unit | 4 | |
| 55-2683 | SCREW - bracket | 18 | ||
| 55-2641 | FLATWASHER | 20 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 55-4955 | NUT | 18 | ||
| 6 | 91-1675 | SHROUD - condenser/radiator (top) | 1 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 55-3542 | SCREW - shroud (truss head) | 4 | ||
| 55-2957 | SCREW - shroud (hexagon head) | 4 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4974 | NUT - captive | 2 | ||
| 7 | 91-4626 | COVER - engine | 1 | |
| 55-2969 | SCREW - cover | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 8 | 91-1672 | BRACKET - receiver tank | 1 | |
| 55-544 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 9 | 91-8549 | BRACKET - compressor | 1 | |
| 10 | 99-6599 | LATCH - door | 4 | |
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 4 | ||
| 11 | 98-3872 | DOOR - coolant tank | 1 | |
| 55-1587 | SCREW - door | 4 | ||
| 55-4510 | WASHER - retaining | 4 | ||
| 55-4742 | FLATWASHER | 4 | ||
| 12 | 99-9795 | NUTSTRIP - coolant tank | 2 | |
| 55-2012 | RIVET - nutstrip | 2 | ||
| 13 | 98-6215 | GRILLE - condenser | 1 | |
| 55-1587 | SCREW - grille | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 14 | 91-4625 | HINGE - door | 1 | |
| 55-3027 | SCREW - hinge | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 55-4560 | NUT | 5 | ||
| 15 | 99-7379 | ANGLE - grille (left) | 1 | |
| 16 | 99-7378 | ANGLE - grille (right) | 1 | |
| 55-3059 | NUT - captive (angle) | 2 | ||
| 55-4118 | NUT | 2 | ||
| 17 | 98-3724 | COVER - control box | 1 | |
| 18 | 98-3825 | BOX - control (see 93F3) | 1 | |
| 19 | 91-8549 | FRAME - condenser | 1 | |
| 20 | 98-4329 | DOOR - compressor | 1 | |
| 21 | 99-6377 | STRIP - bumper (door) | 4 | |
| 22 | 99-7162 | HINGE - door | 2 | |
| 55-3027 | SCREW - hinge | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-5292 | LOCKNUT | 4 | ||
| 23 | 99-7139 | HINGE (mounted on frame) | 2 | |
| 55-2991 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 24 | 99-7673 | SUPPORT - dehydrator | 1 | |
| 55-5972 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 25 | 55-4703 | BOLT - eye (dehydrator) | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 26 | 91-1667 | LATCH - assembly | 2 | |
| 55-5974 | SCREW - latch | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2990 | NUT (hexagon) | 4 | ||
| 27 | 91-1690 | BRACKET - control box | 1 | |
| 55-2997 | SCREW - bracket | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 28 | 91-2285 | BRACKET - control box | 1 | |
| 55-3033 | SCREW - bracket | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 |
