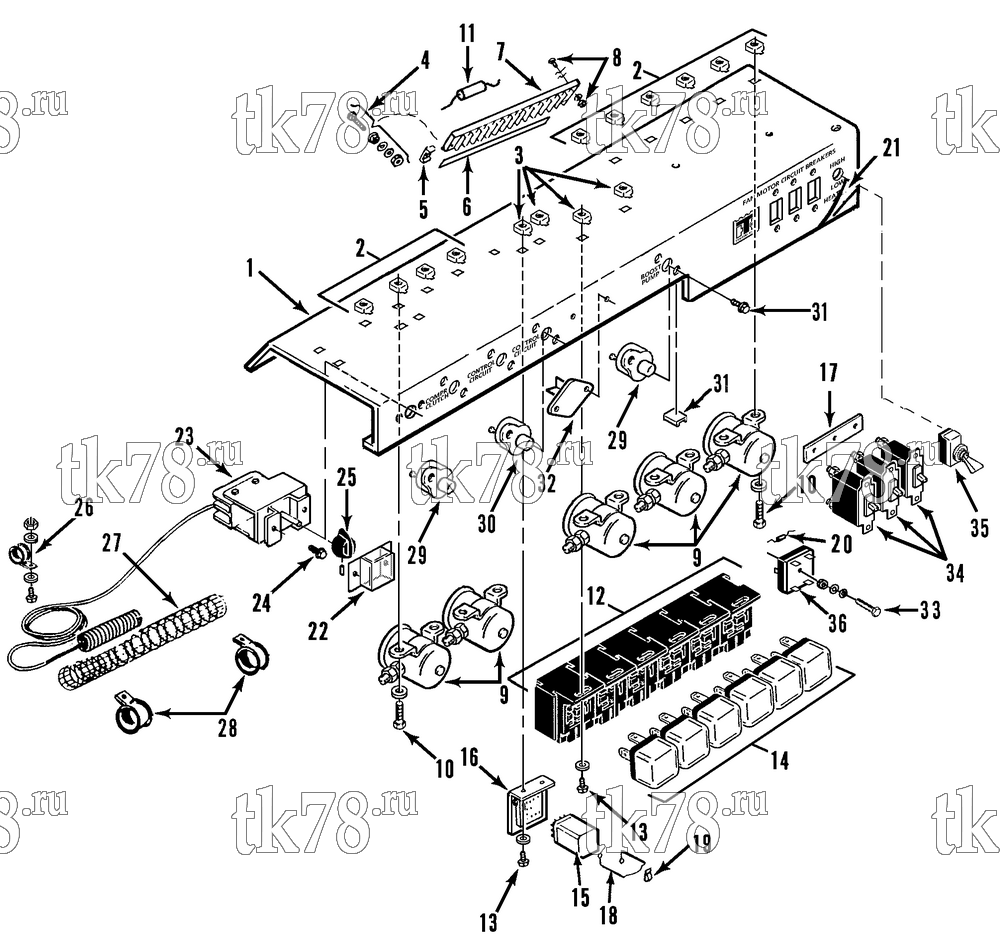

Установкa Thermo King схема CONTROL PANEL (T3-M35 & M37) – 109E12
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| ASQ | PANEL - control (complete) | 1 | ||
| 1 | 98-3085 | PANEL - only | 1 | |
| 2 | 55-3059 | NUT - captive (1/4-20) | 10 | |
| 3 | 55-3493 | NUT - captive (10-32) | 5 | |
| 4 | 55-2979 | SCREW - ground | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-2993 | LOCKWASHER | 3 | ||
| 55-1801 | NUT (hex) | 2 | ||
| 5 | 99-9648 | MOUNT - cable tie | 3 | |
| 6 | 91-1279 | MARKSTRIP | 1 | |
| 7 | 44-6504 | BOARD - terminal | 1 | |
| 8 | 55-735 | SCREW - terminal board | 2 | |
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-3519 | NUT (hex) | 2 | ||
| 9 | 41-3987 | SOLENOID | 5 | |
| 44-6007 | DIODE - solenoid | 2 | ||
| 10 | 55-145 | SCREW - solenoid | 10 | |
| 55-419 | LOCKWASHER | 10 | ||
| 55-411 | FLATWASHER | 10 | ||
| 11 | 44-7377 | DIODE - assembly | 3 | |
| 12 | 44-5537 | SOCKET - relay | 6 | |
| 13 | 55-3444 | SCREW - socket | 5 | |
| 55-1511 | LOCKWASHER | 5 | ||
| 55-431 | FLATWASHER | 5 | ||
| 14 | 44-9112 | RELAY | 6 | |
| 15 | 44-4025 | RELAY | 1 | |
| 16 | 44-3184 | SOCKET - relay | 1 | |
| 55-3010 | RIVET - socket | 2 | ||
| 99-4268 | BRACKET - relay | 1 | ||
| 17 | 44-6044 | JUMPER - circuit breaker | 1 | |
| 18 | 99-2027 | SPRING - holddown | 1 | |
| 19 | 55-2771 | CLAMP - speednut | 1 | |
| 20 | 44-5605 | RESISTOR - timer | 1 | |
| 21 | 99-9356 | NAMEPLATE - switch panel | 1 | |
| 22 | 99-9762 | COVER - thermostat knob | 2 | |
| 23 | 44-6043 | THERMOSTAT - control return air | 1 | |
| 24 | 55-3513 | SCREW - thermostat & cover | 4 | |
| 55-3233 | LOCKWASHER | 4 | ||
| 55-1266 | FLATWASHER | 4 | ||
| 25 | 44-1222 | KNOB - control | 2 | |
| 26 | 55-547 | CLAMP - thermo bulb | 1 | |
| 27 | 99-6851 | RETAINER - thermo bulb | 1 | |
| 28 | 55-3357 | CLAMP - retainer | 2 | |
| 55-1510 | SCREW - retainer | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-2752 | NUT (hex) | 2 | ||
| 29 | 44-7216 | BREAKER - circuit (10 amp) | 2 | |
| 30 | 44-7217 | BREAKER - circuit (15 amp) | 1 | |
| 31 | 55-3196 | SCREW - circuit breaker | 6 | |
| 55-431 | FLATWASHER | 6 | ||
| 55-1511 | LOCKWASHER | 6 | ||
| 32 | 44-4035 | RECTIFIER | 1 | |
| 55-2366 | SCREW - rectifier | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-3519 | NUT (hex) | 2 | ||
| 33 | 55-5279 | SCREW - timer | 1 | |
| 55-1266 | FLATWASHER | 1 | ||
| 55-3233 | LOCKWASHER | 1 | ||
| 55-3519 | NUT (6-32, hex) | 1 | ||
| 34 | 44-5494 | BREAKER - circuit (65 amp) | 3 | |
| 35 | 44-490 | SWITCH - toggle (cycle/reheat) | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 36 | 44-6428 | TIMER - 1/2 second | 1 |
