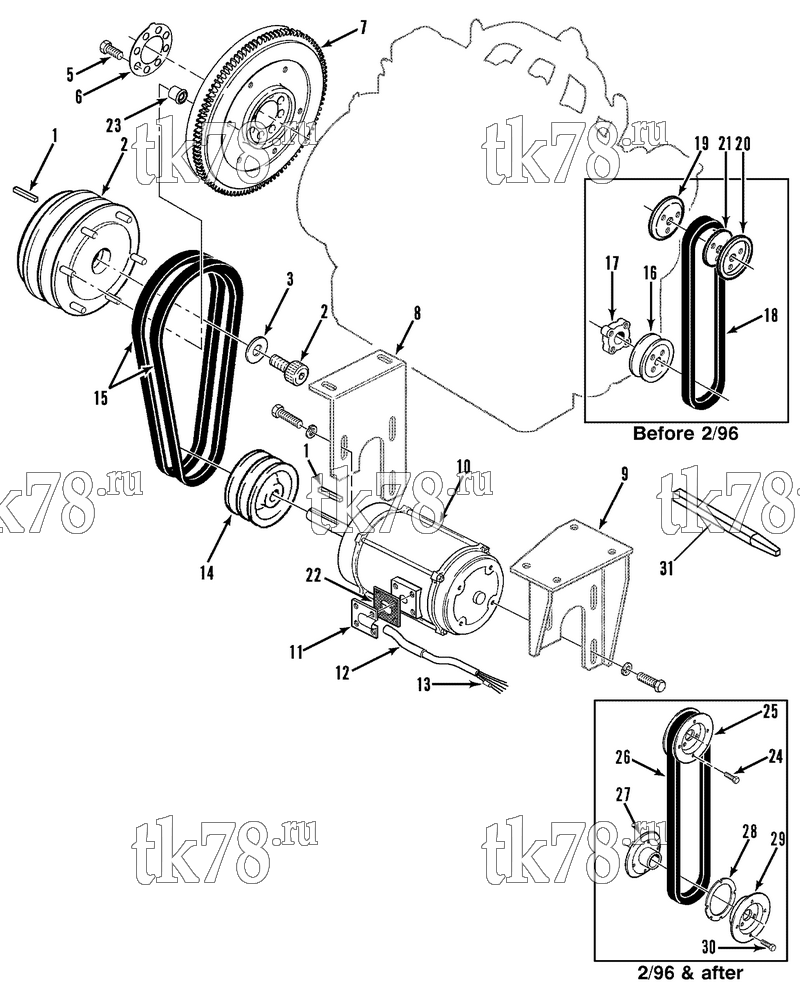

Установкa Thermo King схема MOTOR MOUNTING GROUP – 109D3
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9024 | KEY - compressor | 2 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 2 | 107-341 | CLUTCH (see 125E4) | 1 | |
|
US-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 113 700 ₽ |
|
| 3 | 77-2498 | SPACER - clutch | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 4 | 55-3546 | SCREW - clutch | 1 | |
| 5 | 55-4513 | SCREW - flywheel | 6 | |
| 6 | 55-5489 | WASHER - flywheel | 1 | |
| 7 | 12-893 | FLYWHEEL (see 68D11) | 1 | |
| 8 | 98-3963 | MOUNT - motor (curbside) | 1 | |
| 55-1669 | SCREW - motor mount to housing | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 55-3274 | NUT | 2 | ||
| 55-5005 | SCREW - mount to housing | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 9 | 98-3964 | MOUNT - motor (see 108D11) | 1 | |
| 10 | 104-636 | MOTOR | 1 | |
| 77-2430 | FAN - motor (for 104-636) | 1 | ||
| 77-2570 | FAN - motor (for 104-602) | 1 | ||
| 55-1669 | SCREW - motor | 6 | ||
| 55-2159 | LOCKWASHER | 6 | ||
| 55-5234 | WASHER - special | 6 | ||
| 11 | 55-9129 | CONNECTOR - cable | 1 | |
| 12 | 91-4612 | SLEEVE - conduit | 1 | |
| 13 | 44-3660 | RESISTOR | 1 | |
| 44-5767 | SLEEVING - heatsink | 1 | ||
| 14 | 77-2120 | PULLEY - motor | 1 | |
| 55-3565 | SCREW - pulley | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-2054 | SCREW - set | 1 | ||
| 15 | 78-677 | BELT - drive | 1 | |
| 10-78-677 | Пара ремней электромотор - компрессор | 5 040 ₽ |
|
|
| 16 | 77-1369 | PULLEY - crankshaft | 1 | |
| 55-5611 | SCREW - pulley | 4 | ||
| 55-5411 | LOCKWASHER | 4 | ||
| 17 | 77-1664 | SPACER - pulley | 1 | |
| 18 | 78-668 | BELT - water pump | 1 | |
| 10-78-668 | Ремень водяной помпы, SB-III/SMX | 3 680 ₽ |
|
|
| PP-78-668 | Ремень водяной помпы, SB-III/SMX | 1 040 ₽ |
|
|
| 19 | 77-2225 | PULLEY - stationary | 1 | |
| 20 | 77-1187 | PULLEY - water pump (sliding) | 1 | |
| 21 | 77-1285 | SPACER - pulley (0.035 thk) | 5 | |
| 77-2164 | SPACER - pulley (0.015 thk) | 5 | ||
| 55-2977 | SCREW - pulley | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 22 | 33-2371 | GASKET | 1 | |
| 70-206 | KIT - bushing (6-pin clutch, incl pins, bushings & adhesive) | 1 | ||
| 23 | 77-2760 | BUSHING - coupling (50s) | 6 | |
|
10-77-2760 | Втулка маховика | 690 ₽ |
|
| PP-77-2760 | Втулка маховика | 420 ₽ |
|
|
| 51-869 | PIN - dowel | 6 | ||
| 24 | 55-5022 | SCREW - pulley to pump | 3 | |
| 55-790 | LOCKWASHER | 3 | ||
| 25 | 77-1345 | PULLEY - water pump | 1 | |
| 26 | 78-1011 | BELT - water pump | 1 | |
| 10-78-1011 | Ремень водяной помпы, SB-III после 96г. / SMX после 93г. | 3 100 ₽ |
|
|
| PP-78-1011 | Ремень водяной помпы, SB-III после 96г. / SMX после 93г. | 1 100 ₽ |
|
|
| 27 | 77-2390 | PULLEY - damper (2/96 & after) | 1 | |
| 28 | 77-2387 | SHIM - pulley (0.015 thk) | 1 | |
| 77-2386 | SHIM - pulley (0.036 thk) | 1 | ||
| 29 | 77-2385 | PULLEY - half section | 1 | |
| 30 | 55-8682 | SCREW - pulley | 1 | |
| 31 | 204-972 | TOOL - keyway alignment | 1 |
