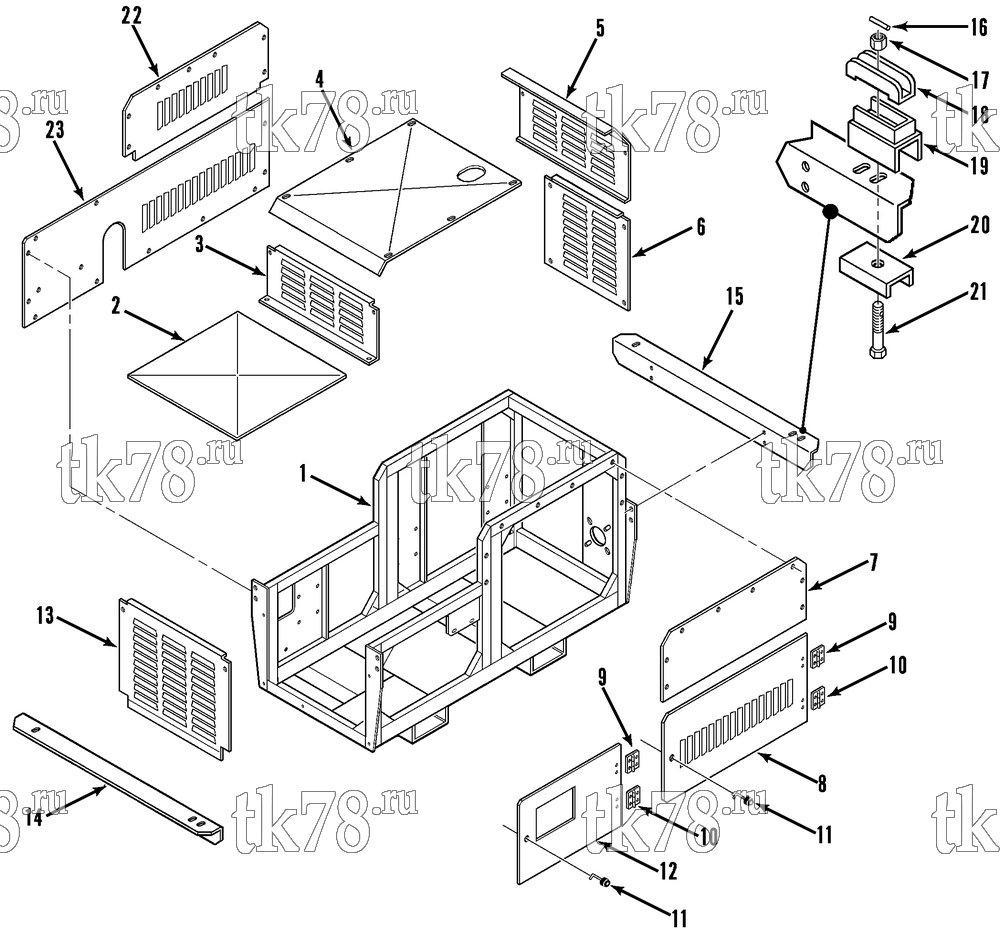

Установкa Thermo King схема STRUCTURAL COMPONENTS – 109B10
Обновление от: 12/9/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4061 | FRAME | 1 | |
| 2 | 98-4069 | PANEL (top, rear) | 1 | |
| 55-1587 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-7422 | INSERT - threaded | 4 | ||
| 3 | 98-4066 | PANEL (top, center) | 1 | |
| 55-1587 | SCREW - panel | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-7422 | INSERT - threaded | 2 | ||
| 4 | 98-4068 | PANEL (top front) | 1 | |
| 55-1587 | SCREW - panel | 6 | ||
| 55-4742 | WASHER - spacer | 12 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-7422 | INSERT - threaded | 6 | ||
| 5 | 98-4067 | PANEL (front) | 1 | |
| 55-1587 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-7422 | INSERT - threaded | 4 | ||
| 6 | 98-4062 | PANEL (lower, front) | 1 | |
| 55-1587 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-7422 | INSERT - threaded | 4 | ||
| 7 | 98-4063 | PANEL (upper, right) | 1 | |
| 55-1587 | SCREW - panel | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-7422 | INSERT - threaded | 8 | ||
| 8 | 98-4064 | DOOR (front, right) | 1 | |
| 9 | 99-7139 | HINGE - door (w/ pin) | 2 | |
| 99-7138 | HINGE - door (w/o pin) | 2 | ||
| 10 | 99-7140 | HINGE - door (w/ pin) | 2 | |
| 99-7137 | HINGE - door (w/o pin) | 2 | ||
| 55-1587 | SCREW - hinge | 4 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 4 | ||
| 11 | 99-6599 | LATCH - door | 2 | |
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 2 | ||
| 99-9756 | BRACKET - latch | 2 | ||
| 55-6554 | INSERT | 4 | ||
| 55-3027 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 12 | 98-4065 | DOOR (front, left) | 1 | |
| 13 | 98-4072 | PANEL (lower, rear) | 1 | |
| 55-1587 | SCREW - panel | 10 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-7422 | INSERT - threaded | 10 | ||
| 55-2977 | SCREW - panel | 2 | ||
| 55-4742 | WASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 14 | 98-4071 | ANGLE - unit mounting (rear) | 1 | |
| 15 | 98-4070 | ANGLE - unit mounting (front) | 1 | |
| 55-5204 | SCREW - angle | 8 | ||
| 55-2576 | FLATWASHER | 16 | ||
| 55-5205 | NUT | 8 | ||
| 16 | 55-6163 | PIN - spring | 4 | |
| 17 | 55-4470 | NUT | 4 | |
| 18 | 92-3438 | CLIP - unit mounting | 4 | |
| 19 | 91-545 | BRACKET - clip | 4 | |
| 20 | 91-632 | CHANNEL - unit mounting | 4 | |
| 21 | 55-7502 | BOLT - unit mounting | 4 | |
| 22 | 91-4501 | PANEL (front left) | 1 | |
| 55-1587 | SCREW - panel | 7 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 55-1800 | LOCKWASHER | 7 | ||
| 55-7422 | INSERT | 7 | ||
| 33-1084 | GROMMET | 1 | ||
| 23 | 91-4500 | PANEL (lower left) | 1 | |
| 55-1587 | SCREW - panel | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 55-1800 | LOCKWASHER | 11 | ||
| 55-7422 | INSERT | 11 |
