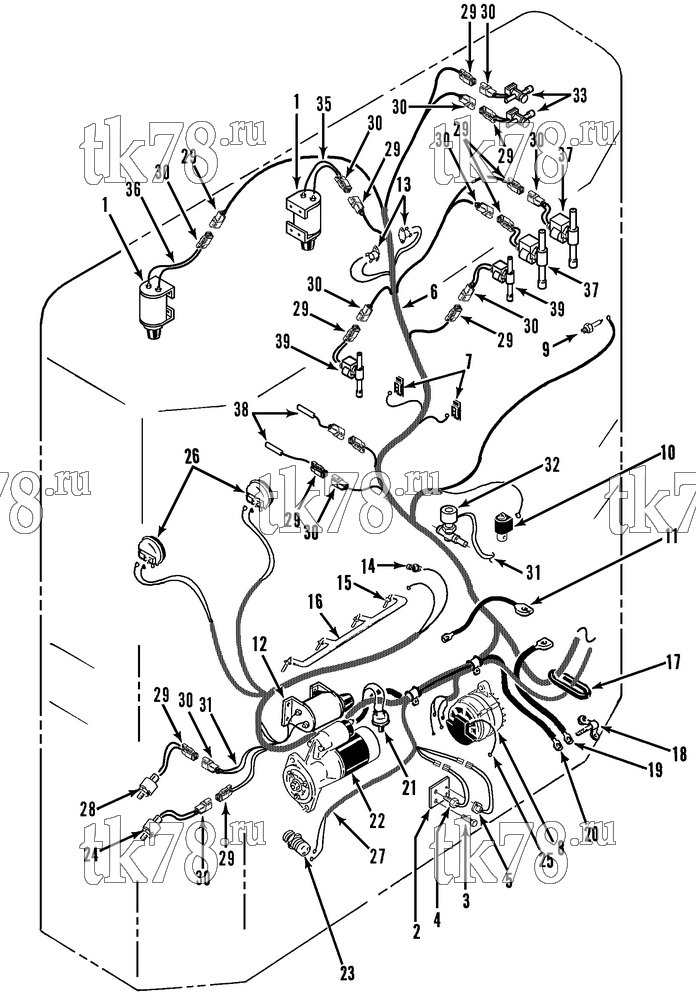

Установкa Thermo King схема ELECTRICAL COMPONENTS (SB-III DE) – 109A7
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2823 | SOLENOID - defrost (see 109A6) | 2 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-2756 | DIODE | 2 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 2 | 91-3904 | PLATE - block temperature sensor (before 4/92) | 1 | |
| 3 | 55-5005 | SCREW - plate | 1 | |
| 55-2038 | FLATWASHER | 1 | ||
| 55-365 | LOCKWASHER | 2 | ||
| 4 | 44-9588 | BOLT - thermistor (w/ Deutsch connectors) | 1 | |
| 44-7530 | BOLT - thermistor (w/ weather pack connectors) | 1 | ||
| 5 | 44-6018 | THERMOSTAT - block sensor | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 55-3134 | SCREW - thermostat | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 6 | 44-9818 | HARNESS - main | 1 | |
| 7 | 41-1514 | SWITCH - defrost termination | 2 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 8 | 45-2256 | ALTERNATOR (65 amp, see 242F5) | 1 | |
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 41-8463 | ALTERNATOR (65 amp, Standard Life Plus, CW) | 1 | ||
|
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 845-2256 | ALTERNATOR (65 amp remanufactured) | 1 | ||
| 9 | 44-6534 | SENSOR - radiator | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 10 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL - valve | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 11 | 44-6738 | CABLE - battery (24 in, negative) | 1 | |
| 12 | 44-9181 | SOLENOID - engine (see 106D5) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 13 | 44-7892 | SWITCH - high temperature cutout | 2 | |
| 203-385 | SEALER - thread | A/R | ||
| 14 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 15 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 16 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 17 | 33-628 | GROMMET - control box | 1 | |
| 18 | 44-7997 | TERMINAL - battery (see 106B8) | 1 | |
| 19 | 44-6698 | CABLE - battery (19 in lg) | 1 | |
| 20 | 44-6741 | CABLE - starter | 1 | |
| 21 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 22 | 45-2325 | STARTER | 1 | |
| 23 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 3 310 ₽ |
|
| 44-7620 | BOOT - rpm sensor | 1 | ||
| 24 | 44-9408 | SWITCH - hpco (compressor) | 1 | |
|
10-44-9408 | Выключатель высокого давления, SB-III/SMX | 6 530 ₽ |
|
| 25 | 44-9288 | HARNESS - alternator | 1 | |
| 26 | 66-6829 | SWITCH - air pressure (1.3 wc, see 111D3) | 1 | |
| 27 | 44-9842 | HARNESS - Cycle Sentry | 1 | |
| 28 | 44-9826 | SWITCH - high pressure (Cycle Switch) | 1 | |
| 29 | 44-9585 | PLUG (2-pin) | 1 | |
| 44-9597 | SOCKET | 2 | ||
| 44-9586 | WEDGE | 1 | ||
| 30 | 44-9589 | RECEPTACLE (2-pin) | 1 | |
| 44-9591 | TERMINAL - pin (16-18 ga) | 2 | ||
| 44-9590 | WEDGE | 2 | ||
| 31 | 44-9814 | HARNESS - condenser inlet solenoid | 1 | |
| 32 | 61-1300 | VALVE - solenoid (see 127B14) | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 33 | 66-6384 | VALVE - solenoid (liquid, see 116G10) | 2 | |
| 10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
|
| 34 | 44-9810 | SWITCH - oil level | 1 | |
| 35 | 44-9812 | HARNESS - roadside solenoid | 1 | |
| 36 | 44-9825 | HARNESS - curbside solenoid | 1 | |
| 37 | 66-6127 | VALVE - solenoid (suction, see117A1) | 2 | |
| 38 | 44-9868 | SENSOR - thermostat | 2 | |
| 39 | 61-3401 | VALVE - solenoid (defrost, see 116G14) | 2 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
