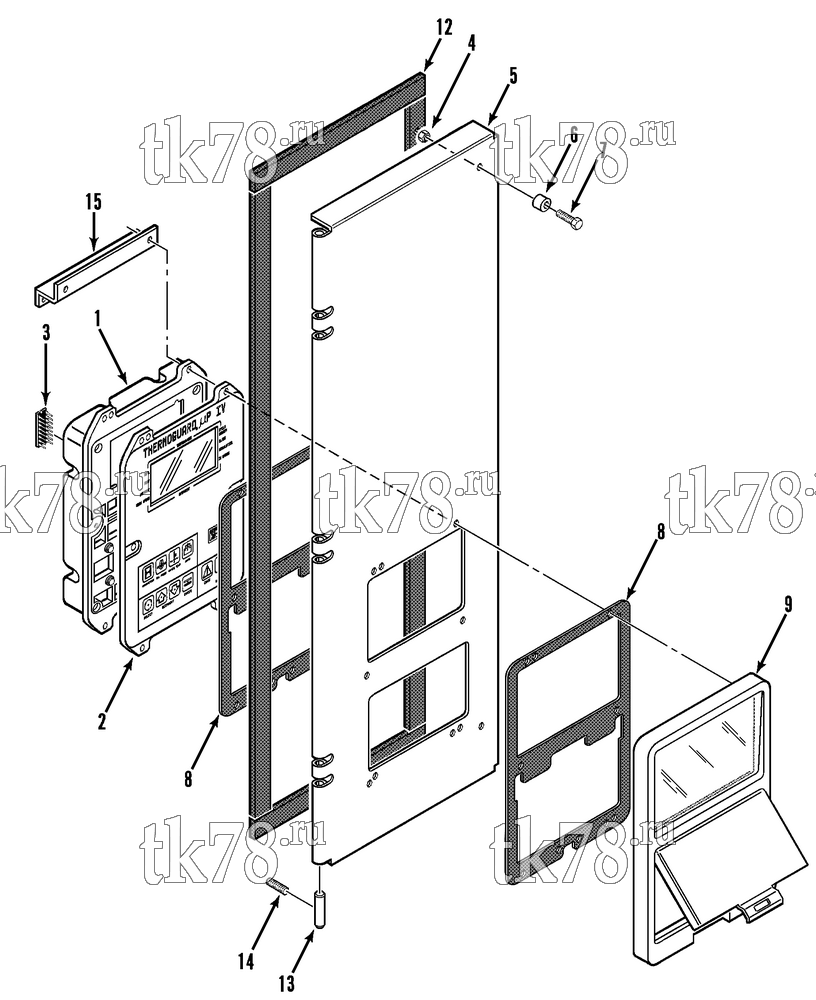

Установкa Thermo King схема CONTROL BOX COVER – 108F3
Обновление от: 11/25/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 845-2418 | CONTROLLER - microprocessor (less chip) | 1 | |
| 845-2419 | CONTROLLER - microprocessor (w/ remote control box) | 1 | ||
| 2 | 91-9805 | FACEPLATE/OVERLAY | 1 | |
| 3 | 40-579 | KIT - IC eprom chip (ID No. 9194C49G04) | 1 | |
| 204-723 | TESTER - microprocessor controller | 1 | ||
| 204-622 | WRIST STRAP - electrostatic | 1 | ||
| 204-736 | TOOL - IC removal/insertion | 1 | ||
| 55-2977 | SCREW - controller (1/4-20 x 1 in lg) | 6 | ||
| 55-2979 | SCREW - controller (1 in lg) | 2 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 4 | 55-4953 | NUT | 2 | |
| 5 | 98-4277 | COVER - control box | 1 | |
| 6 | 99-8151 | SPACER | 2 | |
| 99-8162 | ROLLER - door latch | 2 | ||
| 7 | 55-4580 | SCREW - cover | 2 | |
| 55-2086 | FLATWASHER | 4 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 8 | 33-2894 | GASKET | 2 | |
| 9 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 10 | Not Used | |||
| 11 | Not Used | |||
| 12 | 99-8986 | STRIP - gasket | A/R | |
| 13 | 91-5619 | ROD | 3 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 14 | 55-3473 | PIN | 3 | |
| 203-393 | SEALER - antiseize (red) | A/R | ||
| 15 | 91-3975 | BRACKET - harness | 1 |
