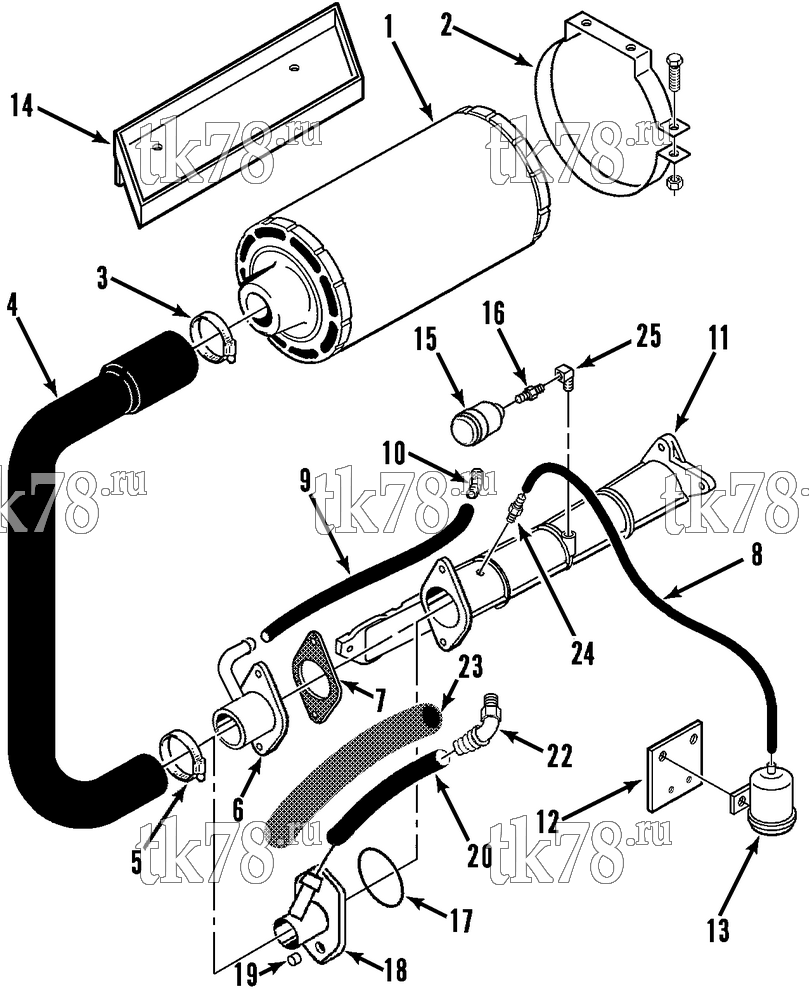

Установкa Thermo King схема AIR CLEANER GROUP – 108D10
Обновление от: 4/15/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7400 | FILTER - air cleaner | 1 | |
|
11-7400 OEM | Фильтр воздушный, SB/SMX | 3 460 ₽ |
|
|
US-11-7400 | Фильтр воздушный, SB/SMX | 2 460 ₽ |
|
|
10-11-7400 | Фильтр воздушный, SB/SMX | 1 590 ₽ |
|
| 2 | 11-5562 | CLAMP - air cleaner | 2 | |
| 55-2963 | SCREW - air cleaner | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 3 | 55-4979 | CLAMP - hose to air cleaner | 1 | |
| 4 | 11-7751 | HOSE - air cleaner | 1 | |
| 5 | 55-1636 | CLAMP - hose to housing | 1 | |
| 6 | 91-4177 | HOUSING - air intake (before 11/93) | 1 | |
| 55-5022 | SCREW - housing | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 7 | 33-487 | GASKET - manifold (before 11/93) | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 8 | 11-4367 | HOSE - air indicator (1/4 od x 35 ft lg) | 1 | |
| 9 | 55-7552 | ELBOW | 1 | |
| 55-2332 | BANDWRAP | 2 | ||
| 10 | 55-7015 | FITTING - barb (before 11/93) | 1 | |
| 11 | 11-7397 | MANIFOLD - intake (see 100C4) | 1 | |
| 12 | 91-3049 | BRACKET - air indicator | 1 | |
| 55-4998 | SCREW - bracket | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 13 | 11-9262 | INDICATOR - air restrictor | 1 | |
| 14 | 91-4354 | BRACKET - air cleaner | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 15 | 11-7757 | INDICATOR - air restriction (2/93 & after) | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
| 16 | 55-6132 | FITTING - air restriction indicator (for indicator 11-7757) | 1 | |
| 17 | 33-2854 | O-RING - adapter | 1 | |
| 18 | 11-8858 | ADAPTER - air inlet (molded) | 1 | |
| 19 | 91-7555 | SPACER | 2 | |
| 20 | 11-8900 | HOSE - breather | 1 | |
| 21 | 55-1592 | CONNECTOR - hose | 1 | |
| 22 | 55-1592 | CONNECTOR - hose | 1 | |
| 23 | 11-8901 | HOSE - insulation | 1 | |
| 55-5022 | SCREW - adapter | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 24 | 11-7828 | FITTING - air restriction (for indicator 11-7757) | 1 | |
| 25 | 55-2505 | ELBOW - indicator | 1 |
