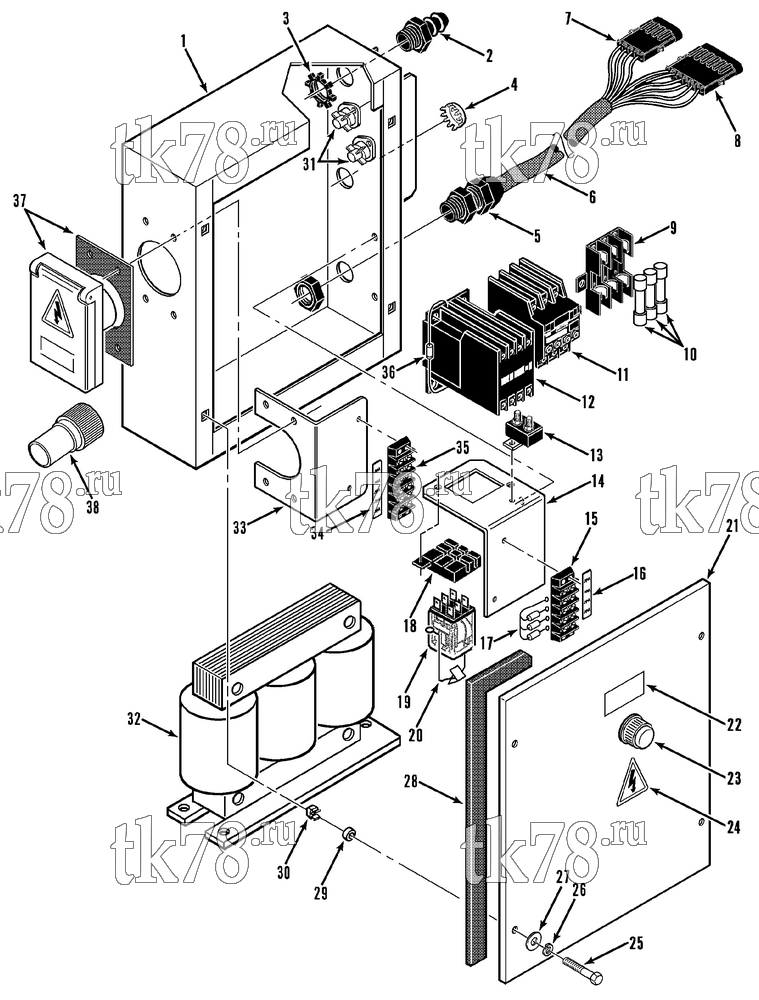

Установкa Thermo King схема CONTROL BOX (20 DRT THREE PHASE, Before 6/94) – 107G12
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4266 | BOX - control | 1 | |
| 55-3059 | NUT - captive | 4 | ||
| 2 | 55-2789 | FITTING - barb | 1 | |
| 33-144 | O-RING - fitting | 1 | ||
| 3 | 55-2635 | NUT | 1 | |
| 4 | 55-6765 | PLUG - button | 1 | |
| 5 | 55-5900 | CONNECTOR - liquid tite | 1 | |
| 6 | 44-9748 | HARNESS - low voltage | 1 | |
| 7 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 8 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 9 | 44-5615 | HOLDER - fuse | 2 | |
| 55-4576 | SCREW - holder | 2 | ||
| 10 | 44-8417 | FUSE (12 amp) | 3 | |
| 44-5661 | FUSE (4 amp) | 3 | ||
| 11 | 41-5623 | RELAY - overload (230V) | 1 | |
| 41-5626 | RELAY - overload (115V) | 1 | ||
| 41-6096 | ADAPTER - overload relay | 1 | ||
| 55-3076 | SCREW - relay | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 12 | 41-5629 | CONTACTOR (12V) | 1 | |
| 41-361 | CONTACTOR (24V) | 1 | ||
| 55-3443 | SCREW - contactor | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 13 | 44-6991 | BREAKER - circuit (12V) | 1 | |
| 44-7993 | BREAKER - circuit (24V) | 1 | ||
| 55-3443 | SCREW - breaker | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 14 | 91-4235 | BRACKET - low voltage | 1 | |
| 55-1844 | SCREW - bracket | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-3023 | WASHER - sealing | 2 | ||
| 15 | 44-2558 | BOARD - terminal | 1 | |
| 55-6390 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 16 | 91-4326 | MARKSTRIP | 1 | |
| 17 | 44-6860 | DIODE - assembly | 1 | |
| 18 | 44-3184 | SOCKET - relay | 1 | |
| 19 | 44-3186 | RELAY (12V) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY (24V) | 1 | ||
| 20 | 99-2027 | SPRING - holddown (relay) | 1 | |
| 55-2270 | RIVET - blind | 2 | ||
| 21 | 91-4329 | COVER - control box | 1 | |
| 22 | 99-8525 | NAMEPLATE - Electric Motor Reset | 1 | |
| 23 | 91-4330 | BUTTON - reset | 1 | |
| 24 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 25 | 55-2977 | SCREW - cover | 4 | |
| 26 | 55-1800 | LOCKWASHER | 4 | |
| 27 | 55-2086 | FLATWASHER | 4 | |
| 28 | 99-8041 | STRIP - gasket (25 ft) | A/R | |
| 29 | 99-8889 | SPACER - gasket | 4 | |
| 30 | 55-3059 | NUT - captive | 4 | |
| 31 | 44-3280 | RECTIFIER | 2 | |
| 32 | 44-6857 | TRANSFORMER (230V) | 1 | |
| 44-6858 | TRANSFORMER (380/415V) | 1 | ||
| 55-2965 | NUT - choke/transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 33 | 91-4327 | BRACKET - terminal board | 1 | |
| 34 | 91-4328 | MARKSTRIP | 1 | |
| 35 | 44-5350 | BOARD - terminal | 1 | |
| 44-3579 | STRIP - jumper | 1 | ||
| 55-3443 | SCREW - board | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 36 | 44-9749 | DIODE - contactor | 1 | |
| 37 | 44-4656 | RECEPTACLE (230V) | 1 | |
| 44-4585 | RECEPTACLE (380/415V) | 1 | ||
| 38 | 44-4694 | PLUG (230V, mate to 44-4656) | 1 | |
| 44-4700 | PLUG (380/415V, mate to 44-4585) | 1 |
