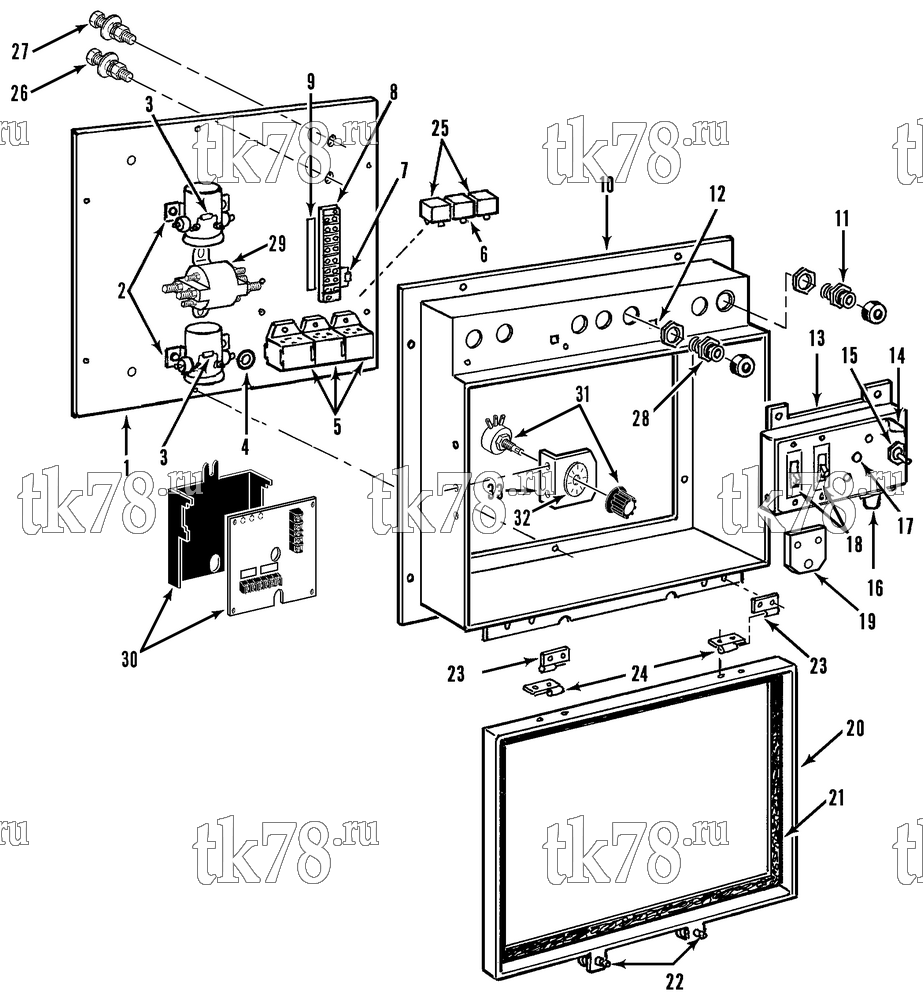

Установкa Thermo King схема CONTROL BOX ASSEMBLY – 107C12
Обновление от: 7/6/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3549 | PLATE - control box | 1 | |
| 55-2995 | SCREW - plate | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT (hexstop) | 6 | ||
| 2 | 44-4397 | SOLENOID | 2 | |
| 55-3021 | SCREW - solenoid | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 3 | 44-6007 | DIODE | 2 | |
| 4 | 33-282 | GROMMET | 1 | |
| 5 | 44-5537 | SOCKET - relay | 3 | |
| 55-3015 | SCREW - socket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 6 | 44-9112 | RELAY - defrost switch (M5) | 1 | |
| 44-9111 | RELAY - defrost switch (M6) | 1 | ||
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 7 | 44-8765 | DIODE | 4 | |
| 8 | 44-4186 | BOARD - terminal | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 9 | 91-4296 | MARKSTRIP | 1 | |
| 10 | 91-4292 | BOX - control (only) | 1 | |
| 11 | 55-5900 | CONNECTOR | 4 | |
| 12 | 55-5121 | NUT - captive | 2 | |
| 13 | 91-296 | BRACKET - circuit breaker | 1 | |
| 55-3024 | SCREW - bracket | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-4560 | NUT (hexstop) | 3 | ||
| 14 | 91-297 | NAMEPLATE - Circuit Breaker | 1 | |
| 15 | 44-1357 | SWITCH - service light | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 16 | 44-5112 | LIGHT - service | 1 | |
| 44-984 | BULB - light | 1 | ||
| 17 | 44-8008 | BREAKER - circuit (boost pump) | 1 | |
| 55-2991 | SCREW - circuit breaker | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 18 | 44-5494 | BREAKER - circuit (motor) | 2 | |
| 55-3513 | SCREW - circuit breaker & jumper | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 19 | 44-7583 | JUMPER - circuit breaker | 1 | |
| 55-2683 | SCREW - terminal | 1 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 2 | ||
| 55-3672 | LOCKWASHER (internal/external) | 1 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-2640 | NUT (hex) | 2 | ||
| 20 | 91-298 | COVER - control box | 1 | |
| 21 | 33-1872 | GASKET - cover | 1 | |
| 22 | 55-5396 | SCREW - cover | 2 | |
| 23 | 99-8056 | HINGE - cover (female) | 2 | |
| 24 | 99-8057 | HINGE - cover (male) | 2 | |
| 55-3015 | SCREW - hinge | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT (hexstop) | 8 | ||
| 25 | 44-9111 | RELAY - boost pump/heat | 2 | |
|
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 26 | 55-2683 | SCREW - ground (3/8-16 x 1.25) | 1 | |
| 55-3471 | LOCKWASHER (internal tooth) | 2 | ||
| 55-3672 | LOCKWASHER (internal/external) | 1 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-2640 | NUT (hex) | 2 | ||
| 27 | 55-3000 | SCREW - ground (10-32 x 1) | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-3496 | LOCKWASHER (internal/external) | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT (hex) | 2 | ||
| 28 | 55-6141 | CONNECTOR (liquid tite) | 3 | |
| 55-2635 | NUT | 3 | ||
| 29 | 41-3053 | SOLENOID | 1 | |
| 55-3021 | SCREW - solenoid | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 44-8095 | JUMPER | 1 | ||
| 30 | 44-7476 | THERMOSTAT - electronic | 1 | |
| 44-8654 | SENSOR - thermostat | 1 | ||
| 91-3608 | BRACKET - sensor | 1 | ||
| 55-1510 | SCREW - thermostat | 1 | ||
| 55-5206 | INSERT | 2 | ||
| 55-1511 | LOCKWASHER | 1 | ||
| 55-431 | FLATWASHER | 1 | ||
| 31 | 44-8118 | SWITCH - thermostat | 1 | |
| 44-7477 | SWITCH - potentiometer/knob (setpoint) | 1 | ||
| 44-5835 | CONNECTOR | 1 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 32 | 91-2140 | NAMEPLATE - Thermostat Dial | 1 | |
| 33 | 91-4297 | BRACKET - setpoint | 1 | |
| 55-3024 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 |
