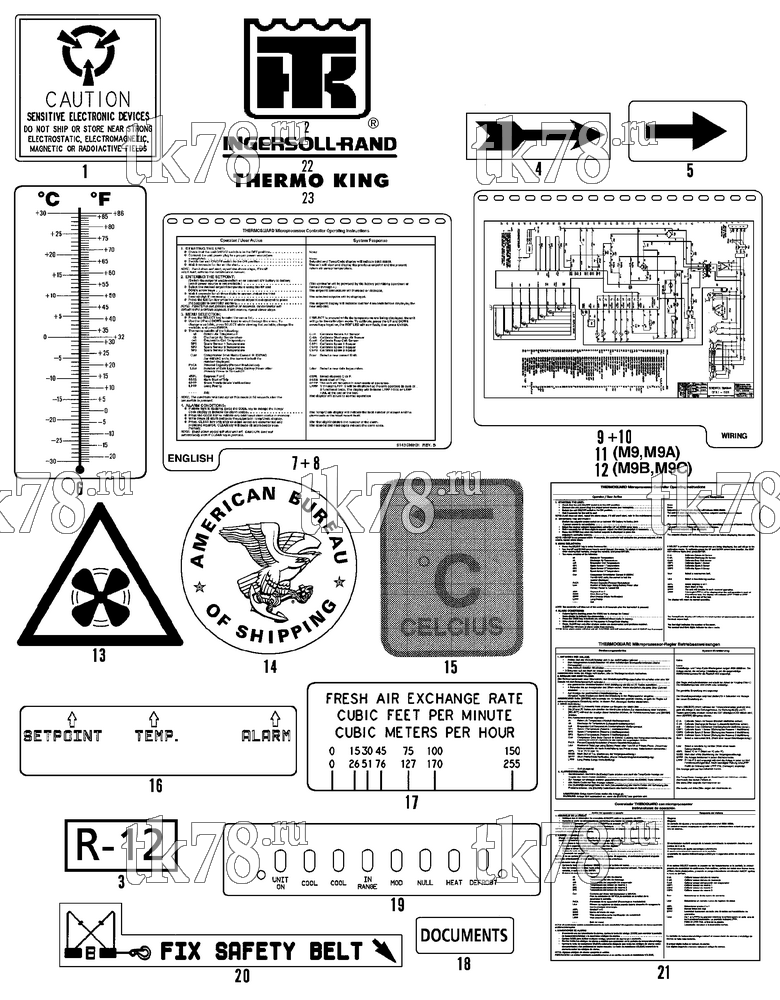

Установкa Thermo King схема NAMEPLATES – 107B14
Обновление от: 8/21/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4019 | NAMEPLATE - Caution, Sensitive Electronic Devices | 1 | |
| 2 | 99-7104 | NAMEPLATE - Thermo King | 1 | |
| 3 | 99-3523 | NAMEPLATE - R12 | 1 | |
| 4 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 5 | 99-6783 | NAMEPLATE - arrow | 1 | |
| 6 | 91-8755 | NAMEPLATE - Temperature Conversion | 1 | |
| 7 | 91-2510 | NAMEPLATE - Operating Instructions (English) | 1 | |
| 8 | 91-2546 | NAMEPLATE - Operating Instructions (German) | 1 | |
| 9 | 91-4225 | NAMEPLATE - Wiring/Schematic Diagram | 1 | |
| 10 | 91-4226 | NAMEPLATE - Wiring/Schematic Diagram | 1 | |
| 11 | 91-5015 | NAMEPLATE - Wiring/Schematic Diagram (M9, M9A) | 1 | |
| 12 | 91-5016 | NAMEPLATE - Wiring/Schematic Diagram (M9B, M9C) | 1 | |
| 13 | 99-9234 | NAMEPLATE - Fan Universal | 1 | |
| 14 | 99-9534 | NAMEPLATE - American Bureau of Shipping | 1 | |
| 15 | 91-5017 | NAMEPLATE - arrow deg Celsius | 1 | |
| 16 | 99-9401 | NAMEPLATE - Lights Display | 1 | |
| 17 | 91-4086 | NAMEPLATE - Fresh Air Exchange | 1 | |
| 18 | 99-6828 | NAMEPLATE - Documents | 1 | |
| 19 | 91-3254 | NAMEPLATE - Mode Lite Indicator | 1 | |
| 20 | 91-2500 | NAMEPLATE - Safety | 1 | |
| 21 | 91-5014 | NAMEPLATE - Operating instructions | 1 | |
| 22 | 91-5274 | NAMEPLATE - Thermo King (black letters) | 1 | |
| 23 | 91-5274 | NAMEPLATE - Thermo King (black letters) | 1 |
