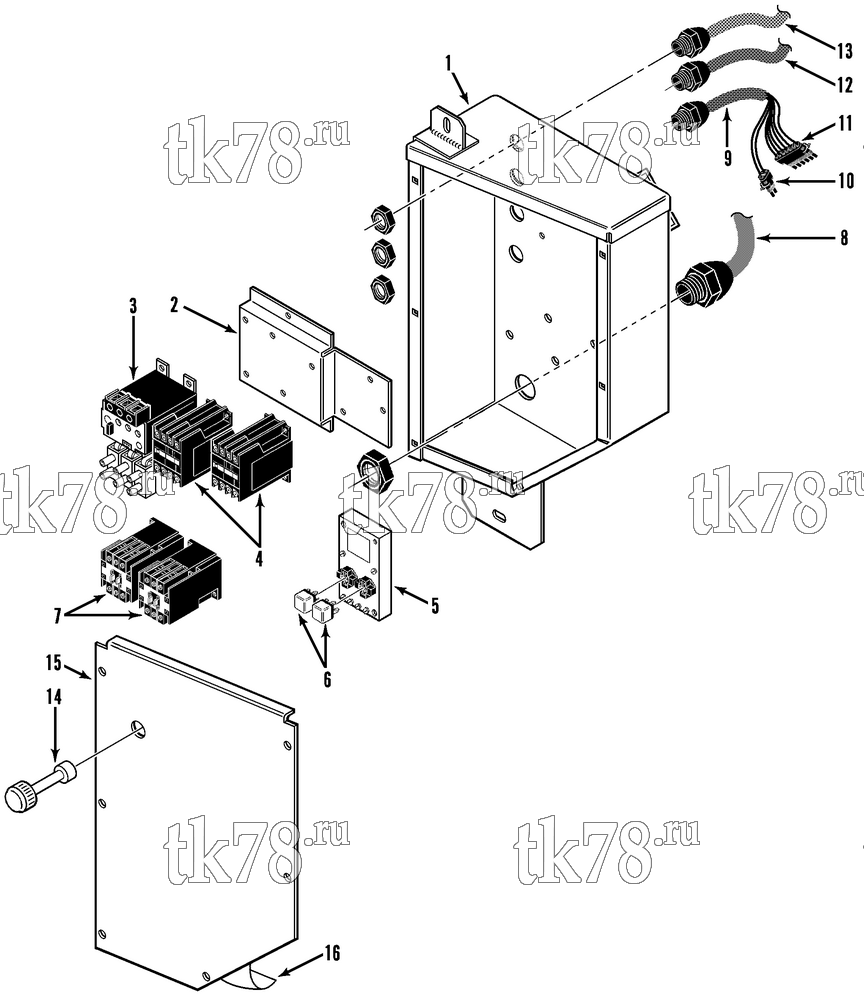

Установкa Thermo King схема HIGH VOLTAGE BOX – 106G10
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4120 | BOX - high voltage | 1 | |
| 55-2969 | SCREW - box | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 99-7671 | NUTSTRIP | 1 | ||
| 2 | 91-4121 | BRACKET - contactor | 1 | |
| 55-3842 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 3 | 40-768 | KIT - relay overload | 1 | |
| 41-6095 | RELAY | 1 | ||
| 41-736 | BASE | 1 | ||
| 91-3894 | PLATE - relay | 1 | ||
| 55-2989 | SCREW - plate & relay | 3 | ||
| 55-3800 | LOCKWASHER | 3 | ||
| 4 | 44-9081 | CONTACTOR - heater | 2 | |
| 55-3511 | SCREW - contactor | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 5 | 44-8670 | SELECTOR - phase | 1 | |
| 55-4148 | SCREW - selector | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 6 | 44-9111 | RELAY - mini | 2 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 7 | 41-472 | CONTACTOR - motor | 2 | |
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 4 | ||
| 8 | 45-1305 | CABLE - power (cut to 9.5 ft) | A/R | |
| 55-5112 | GRIP - cable | 1 | ||
| 9 | 44-9661 | HARNESS - high voltage | 1 | |
| 10 | 44-5835 | CONNECTOR (2-pin) | 1 | |
| 11 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 6 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 6 | ||
| 55-5900 | GRIP - cable | 1 | ||
| 12 | 45-1513 | CABLE - remote heater | 1 | |
| 55-6141 | GRIP - cable | 1 | ||
| 55-2635 | NUT | 1 | ||
| 13 | 45-1513 | CABLE - heaters (cut to 8.3 ft) | A/R | |
| 55-6141 | GRIP - cable | 1 | ||
| 55-2635 | NUT | 1 | ||
| 14 | 92-8854 | BUTTON - reset (230V units) | 1 | |
| 91-4343 | BUTTON - reset (460V units) | 1 | ||
| 15 | 91-3895 | COVER - box | 1 | |
| 55-1049 | SCREW - cover | 6 | ||
| 55-1511 | LOCKWASHER | 6 | ||
| 55-431 | FLATWASHER | 6 | ||
| 16 | 91-4122 | NAMEPLATE - component location | 1 |
