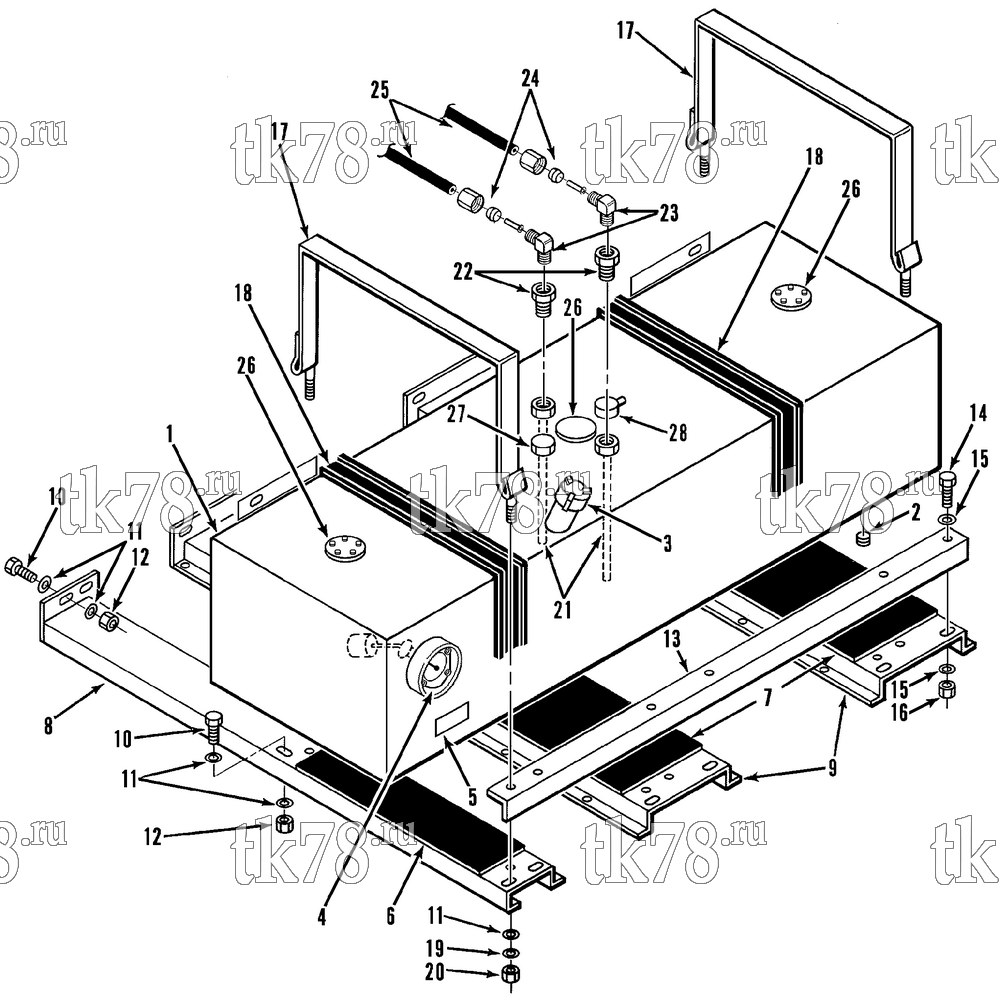

Установкa Thermo King схема FUEL TANK - 50 GALLON – 106F2
Обновление от: 6/2/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-517 | TANK - fuel (incl 2, 3, 4, 21, 26, 27, 28) | 1 | |
| 2 | 55-2313 | PLUG - drain | 1 | |
| 3 | 11-7984 | CAP - fuel tank | 1 | |
| 4 | 11-5241 | GAUGE - fuel | 1 | |
| 5 | 99-1596 | NAMEPLATE - Diesel Fuel Only | 1 | |
| 6 | 99-9277 | STRIP - neoprene (5 in wide x 17 in lg) | 1 | |
| 7 | 99-9278 | STRIP - neoprene (8 in wide x 17 in lg) | 2 | |
| 8 | 98-3371 | CHANNEL - tank (front) | 1 | |
| 9 | 98-3372 | CHANNEL - tank (center & rear) | 2 | |
| 10 | 55-3486 | SCREW | 12 | |
| 11 | 55-2173 | FLATWASHER | 24 | |
| 12 | 55-4952 | NUT (hexstop) | 12 | |
| 13 | 98-3370 | ANGLE - tank | 1 | |
| 14 | 55-2916 | SCREW | 6 | |
| 15 | 55-4931 | FLATWASHER | 12 | |
| 16 | 55-4955 | NUT (hexstop) | 6 | |
| 17 | 12-518 | BAND - tank | 2 | |
| 18 | 91-1935 | STRIP (neoprene) | 2 | |
| 19 | 55-2173 | FLATWASHER | 4 | |
| 20 | 55-7021 | NUT (hexstop) | 4 | |
| 21 | 11-5242 | TUBE - fuel pickup | 2 | |
| 22 | 55-1786 | BUSHING - fuel line | 2 | |
| 23 | 11-4380 | ELBOW | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 24 | 11-4941 | NUT (3/8) | 2 | |
| 10-242 | KIT - sleeve & eyelet (3/8) | 2 | ||
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 25 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 26 | 11-5244 | COVER | 3 | |
| 33-1439 | GASKET - cover | 3 | ||
| 27 | 11-5339 | PLUG - fuse | 1 | |
| 28 | 11-5617 | VENT | 1 |
