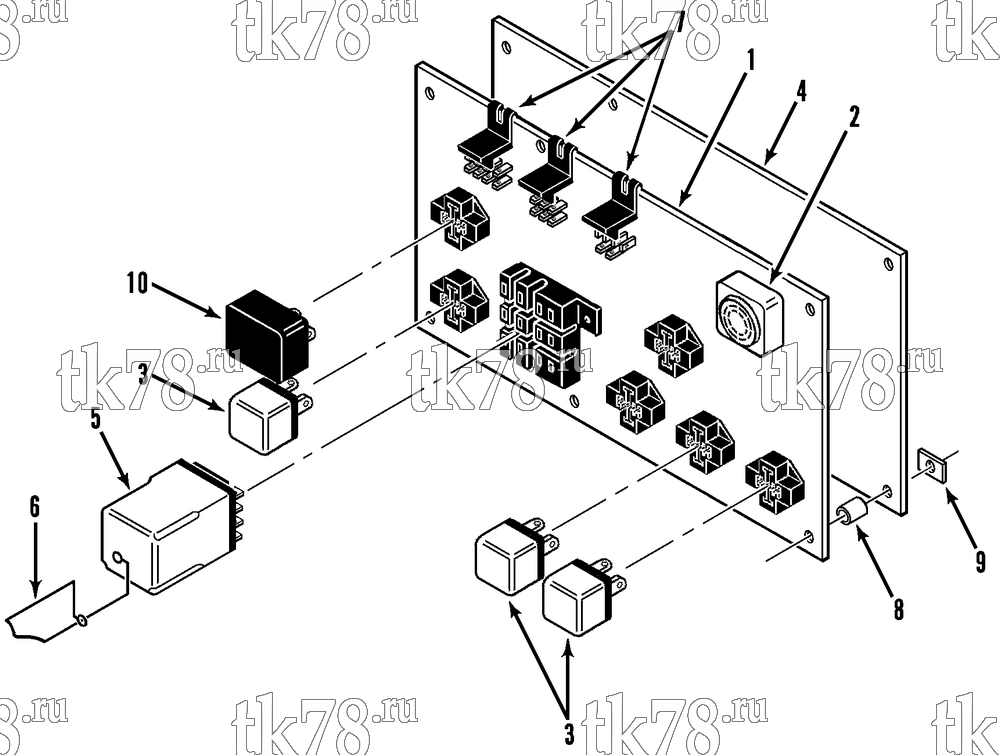

Установкa Thermo King схема CYCLE SENTRY BOARD – 106D2
Обновление от: 9/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9865 | BOARD - Cycle Sentry | 1 | |
| 2 | 41-8291 | BUZZER - warning | 1 | |
| 3 | 41-895 | RELAY - mini (plug-in) | A/R | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 4 | 91-4103 | PLATE - board | 1 | |
| 55-7862 | SCREW - plate (pan hd) | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 55-8748 | SCREW - plate (sl hd) | 6 | ||
| 5 | 44-7192 | SWITCH - Cycle Sentry module | 1 | |
|
10-44-7192 | Выключатель стартера | 19 780 ₽ |
|
| 6 | 99-8475 | HOLDDOWN - spring | 1 | |
| 55-2262 | RIVET - spring/retainer | 5 | ||
| 55-3550 | FLATWASHER | 5 | ||
| 55-2771 | CLAMP - holddown | 1 | ||
| 7 | 91-1277 | RETAINER - harness connector | 3 | |
| 8 | 55-7419 | SPACER | 6 | |
| 9 | 91-4104 | PAD - mount | 4 | |
| 10 | 44-7263 | RELAY - battery | 1 | |
|
10-44-7263 | Реле, Sentry | 7 100 ₽ |
|
